XTCE009B10B - Cutler Hammer 9A 220-240VAC 3-Pole IEC Contactor, 45mm Frame, 1NO, Full Voltage Non-Reversing, UL/CSA/IEC/CE Certified

Save $174.20
SKU: XTCE009B10B-New
Condition: New
Price:
$69.85 $244.05
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

XTCE009B10B - Essential Electric Supply
XTCE009B10B Cutler Hammer XT IEC Contractor - Essential Electric Supply
XTCE009B10B - Cutler Hammer 9A 220-240VAC 3-Pole IEC Contactor, 45mm Frame, 1NO, Full Voltage Non-Reversing, UL/CSA/IEC/CE Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
XTCE009B10B - Essential Electric Supply
XTCE009B10B Cutler Hammer XT IEC Contractor - Essential Electric Supply
XTCE009B10B - Cutler Hammer 9A 220-240VAC 3-Pole IEC Contactor, 45mm Frame, 1NO, Full Voltage Non-Reversing, UL/CSA/IEC/CE Certified - Essential Electric Supply

Description

XTCE009B10B

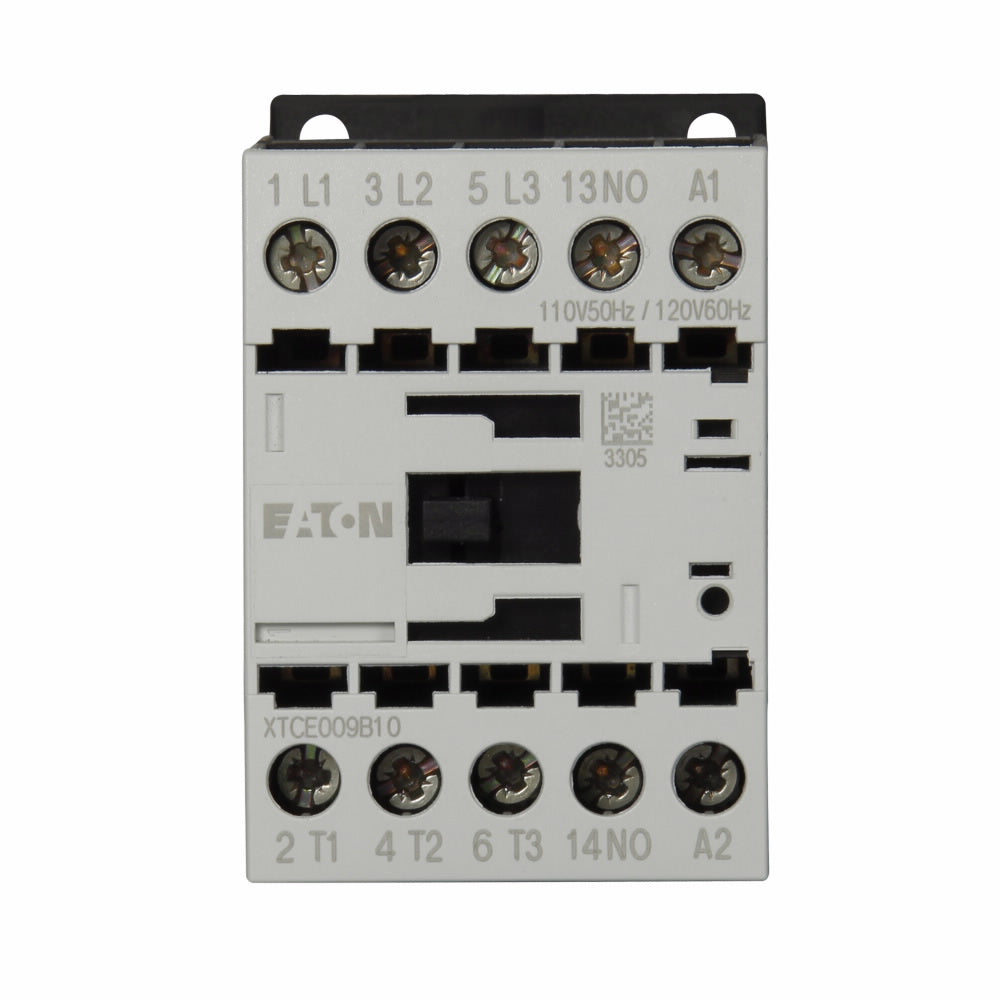

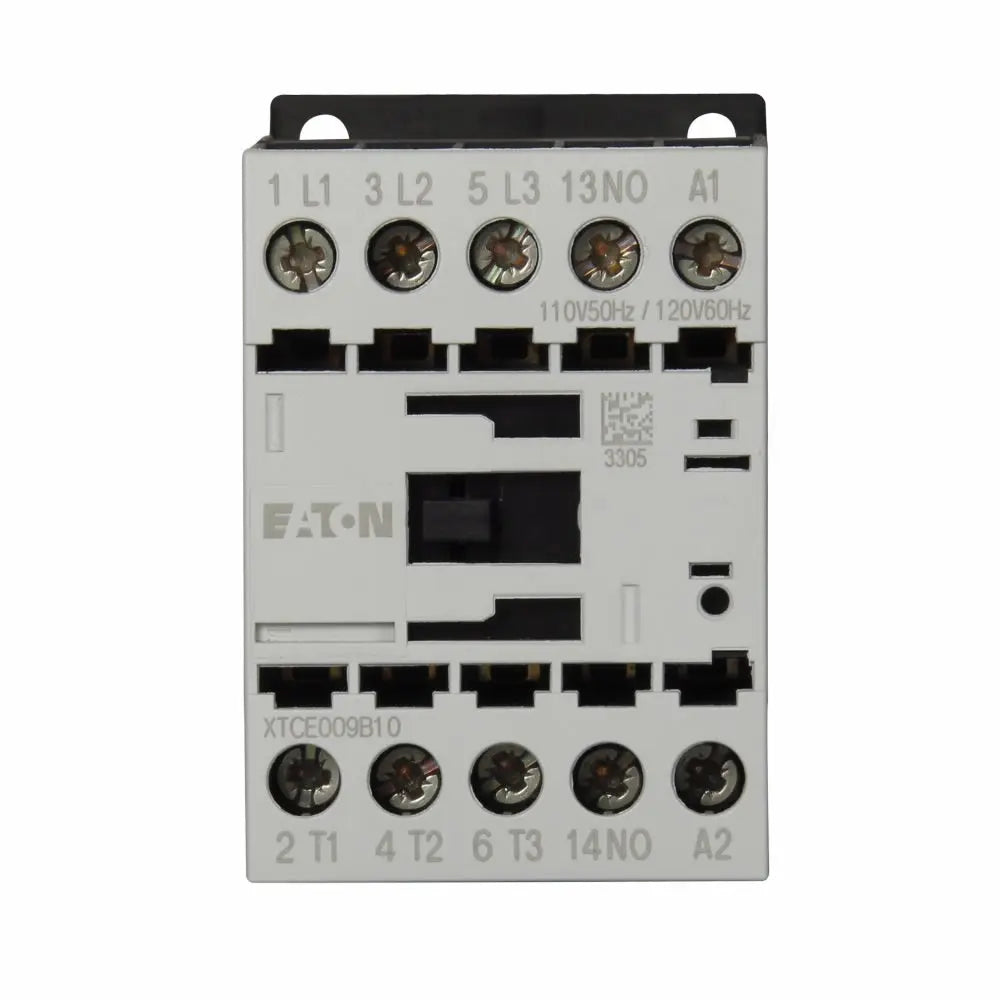

XTCE009B10B is a Cutler Hammer 3-pole IEC contactor designed for motor and power control applications.

This full voltage non-reversing contactor features a 9A continuous current rating, 220-240VAC 50/60Hz coil voltage, 1 normally open (NO) auxiliary contact, and screw terminals for secure connections. It is housed in a compact 45mm frame and is suitable for a wide range of motor horsepower ratings in both single and three-phase systems.

Key Specifications

  • Amperage: 9A continuous
  • Voltage: 220-240VAC, 50/60Hz coil
  • Poles: 3
  • Mounting Type: Screw terminals
  • Interrupt Rating: Not specified in available data
  • Series/Frame: XT IEC, 45mm frame
  • Trip Unit: Not applicable (standard contactor)
  • Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947, CE Marked, RoHS Compliant
  • Contact Configuration: 1NO auxiliary
  • Operation: Full voltage, non-reversing
  • HP Rating: 0.5, 1, 1.25/3, 3, 5, 7.5 HP (1/3PH @115, 200, 230/200, 230, 460, 575V)
  • Product Dimensions: 3" x 3" x 2"
  • Weight: 0.5 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This IEC Non-Reversing Contactor includes a 220 VAC coil.


Specifications

  • Part Number: XTCE009B10B
  • Manufacturer : Cutler Hammer
  • Brand : Cutler Hammer
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : XT Series
  • Type : XTCE009B
  • Voltage : 600
  • Amperage : 9
  • Phase : 3
  • Poles : 3
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
  • Configuration : Non-Reversing
  • Aux Contacts : 1 NO
  • Coil Voltage Maximum : 240
  • Full Load Amps : Full Load Amps-Inductive 9A Full Load Amps-Resistive 22A
  • Coil Voltage Minimum : 240
  • Compatible Frames : PDG,PDF
  • Frequency : 50 Hz

Product Data

  • UPC : 786685363516
  • GTIN : 04015082766894
  • Country of Origin : Romania
  • Dimensions : 3 in x 2 in x 3 in (Length/Depth x Height x Width)
  • Weight : 0.5 lb
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
