XT4HU3100AFF000XXX - ABB Tmax XT 600V 100A 3-Pole Molded Case Circuit Breaker

XT4HU3100AFF000XXX

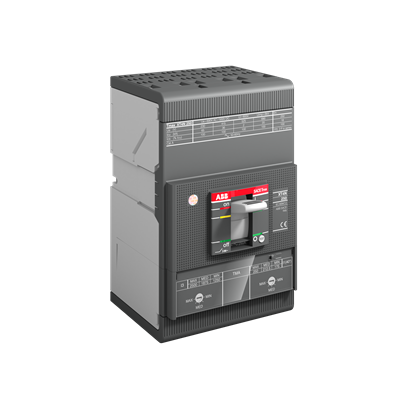

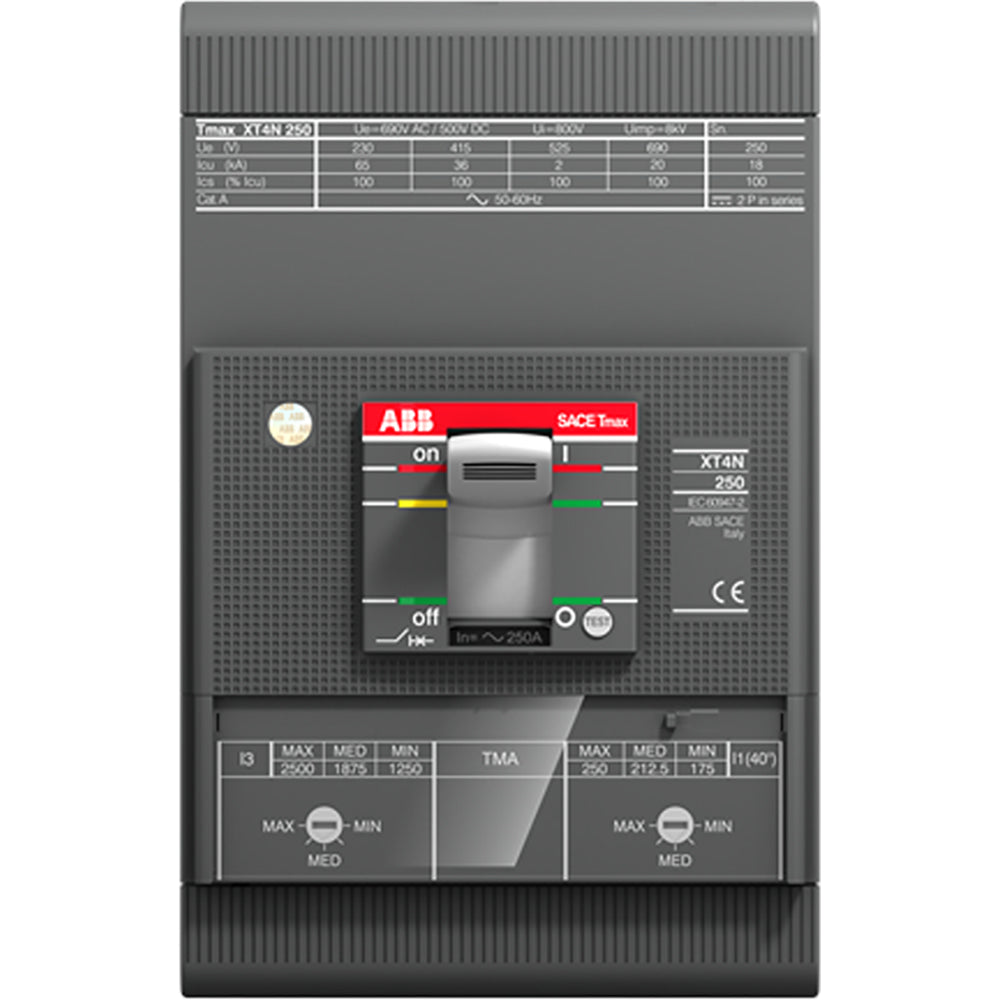

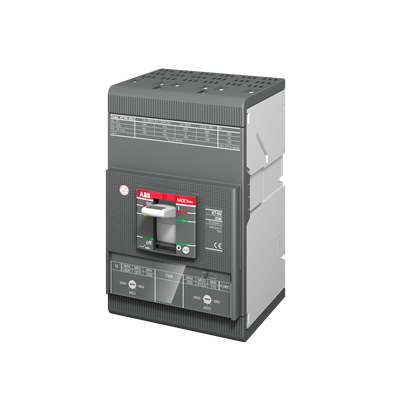

XT4HU3100AFF000XXX is a 3-pole, 600 volt, 100 ampere rated molded case circuit breaker manufactured by ABB as part of the Tmax XT series with electronic trip protection.

This low voltage circuit breaker features a XT4 250A frame size with front line/load side connection and double insulated construction. The breaker delivers 25 kA interrupt rating at 600V and 65 kA at 480V, providing reliable protection for industrial and commercial power distribution applications. It operates at 50/60 Hz frequency with a temperature rating from -13 to 158 degrees Fahrenheit and supports electronic trip settings from 100 to 1000 amperes.

• Amperage Rating: 100 A
• Voltage Rating: 600/690 VAC
• Number of Poles: 3
• Frame Size: XT4 250A
• Interrupt Rating: 25 kA at 600V, 65 kA at 480V
• Trip Type: Electronic/Fixed Thermal Magnetic
• Series: Tmax XT
• Connection Type: Front Line/Load Side
• Frequency Rating: 50/60 Hz
• Insulation Type: Double Insulated
• Temperature Range: -13 to 158 deg F
• Dimensions: 6.3 in H x 4.13 in W x 3.25 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XT4HU3100AFF000XXX
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : SACE Tmax XT
• Type : XT4HU
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 01564486606
• GTIN : 08015644866068
• Country of Origin : United States
• Weight : 8
• Standards : UL, CSA
• Certification : UL, CSA
