Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
XT4HU3100AFJ000XXX

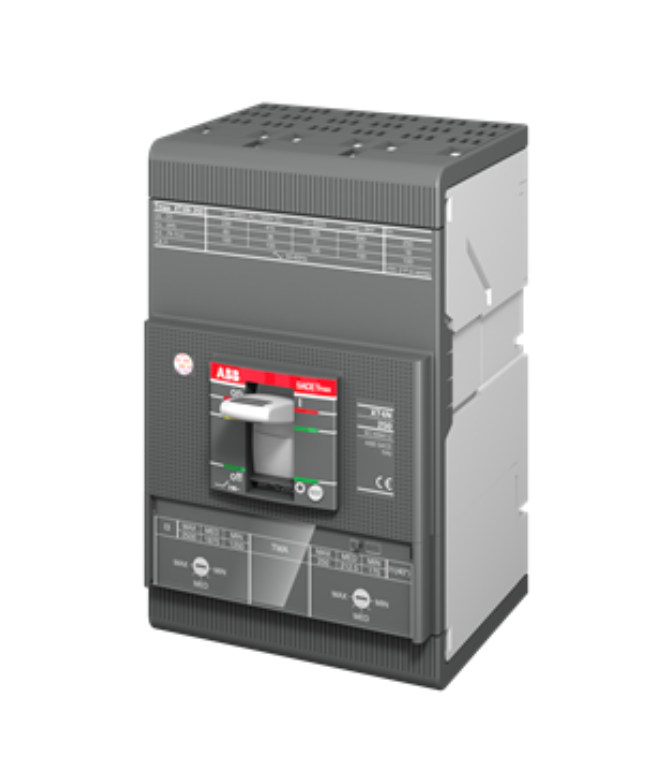

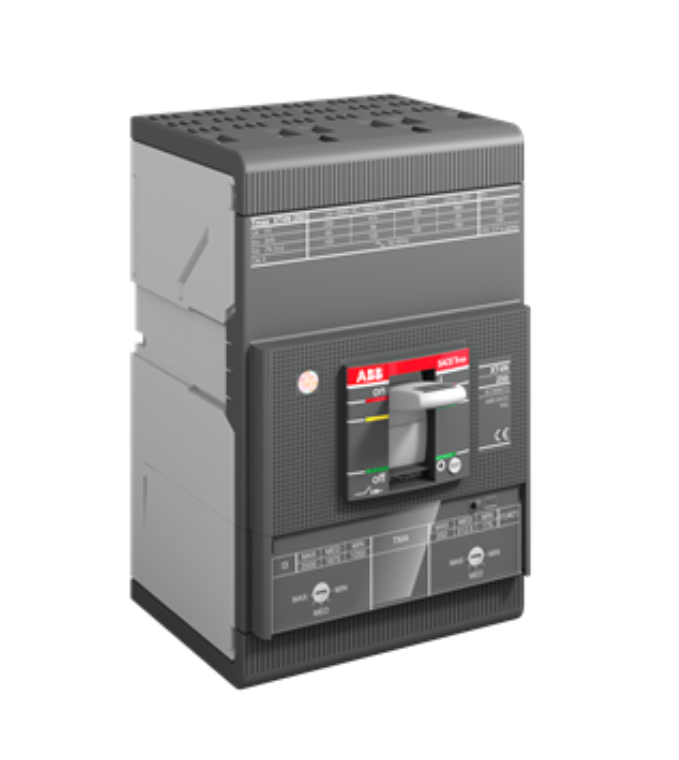

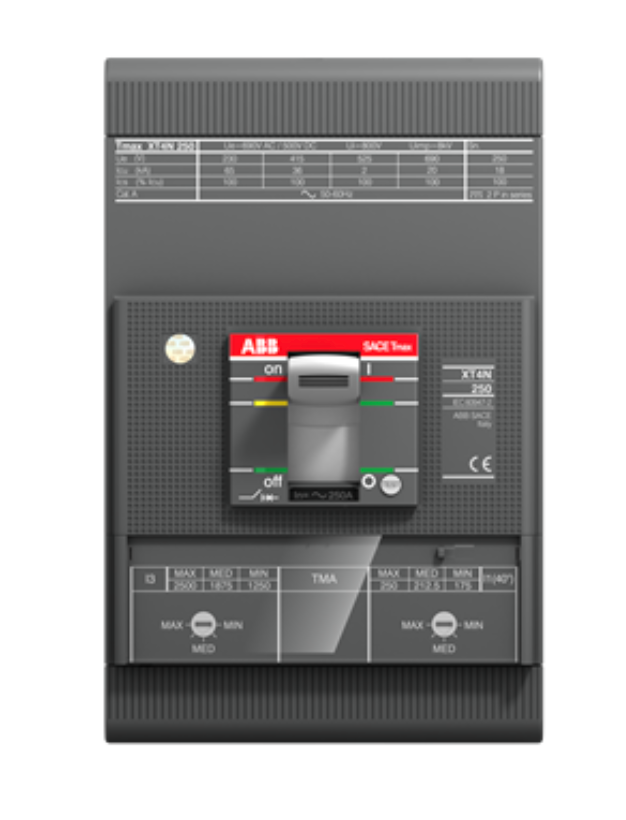

XT4HU3100AFJ000XXX is a 3-pole molded case circuit breaker from ABB's SACE Tmax XT series, rated for 100 amps at 600 volts AC with thermal magnetic protection and a 25 kA interrupt rating at 600V. This low-voltage breaker is designed for power distribution applications and features an XT4 frame size with front-mounted bolt-on terminals and no lugs installed on line and load side connections. The breaker supports 50/60 Hz operation and includes optional accessories such as shunt trip and undervoltage release modules for enhanced protection and control capabilities.
- Part Number: XT4HU3100AFJ000XXX
- Manufacturer: ABB
- Series: SACE Tmax XT
- Frame Size: XT4
- Amperage Rating: 100 A
- Voltage Rating: 600 VAC
- Poles: 3
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 25 kA at 600V
- Frequency: 50/60 Hz
- Terminal Type: Bolt-On (Front)
- Dimensions: 6.30 in H x 4.13 in W x 3.25 in D
- Weight: 5.51 lbs
- Certifications: UL 489, CSA, IEC
Specifications
- Part Number: XT4HU3100AFJ000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT4HU
- Voltage : 600
- Amperage : 100
- Phase : 3
- Connection : Bolt-On
Product Data
- Country of Origin : United States
- Weight : 8
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 4 to 300KCmil, Cu/Al
