Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Emergency Stop Switch
- Series
- Harmony XB4
- Frame
- Harmony XB4 Series
- Country of origin
- Czechia
- UPC
- 60648062371
- GTIN
- 03606480623714
- Dimensions
- 1.9 in (47 mm) x 1.6 in (40 mm) x 3.2 in (82 mm) (Height x Width x Depth)
- Weight
- 0.275 lb
- Certification
- Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Product description & additional details
XB4BT842

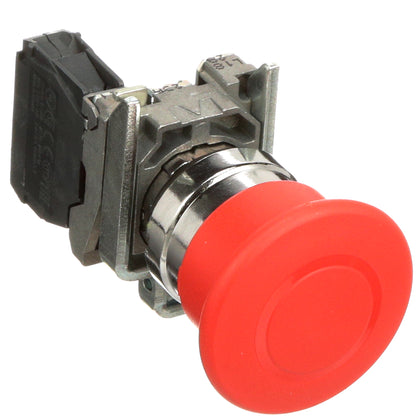

XB4BT842 is a Schneider Electric Harmony emergency stop pushbutton switch with a red mushroom head, designed for operator safety and industrial applications. This switch features a 22mm mounting size, 1NC (SPST) contact configuration, and a slow-break contact for reliable emergency shutdown. The device is constructed with a chromium plated metal housing and a latching push-pull operator for secure actuation. It is rated for 1.2 A at 600 VAC and is suitable for use in harsh environments with NEMA 4X/13 and IP66/IP67/IP69/IP69K/IK06 protection. The switch is designed for panel mounting and offers a wide operating temperature range from -40 to +70 °C (-40 to +158 °F).Engineered for compatibility with Harmony XAPK control stations and existing machinery, the XB4BT842 provides a robust solution for emergency stop functions in industrial settings. The ergonomic design ensures easy actuation, while the screw clamp terminals facilitate secure wiring connections. The switch is built to withstand demanding conditions and offers a long service life with a mechanical rating of 3,000,000 cycles.
- Part Number: XB4BT842
- Manufacturer: Schneider Electric
- Series: Harmony XB4
- Mounting Type: Panel
- Size: 22mm
- Actuator: Red Mushroom Head
- Contact Configuration: 1NC (SPST)
- Contact Rating: 1.2 A at 600 VAC
- Enclosure Type: NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06
- Operating Temperature: -40 to +70 °C (-40 to +158 °F)
- Terminal Type: Screw Clamp
- Mechanical Life: 3,000,000 cycles
Specifications
- Part Number: XB4BT842
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Switch
- Item Subcategory : Emergency Stop Switch
- Family : Harmony XB4
- Type : Harmony XB4 Series
Product Data
- UPC : 60648062371
- GTIN : 03606480623714
- Country of Origin : Czechia
- Dimensions : 1.9 in (47 mm) x 1.6 in (40 mm) x 3.2 in (82 mm) (Height x Width x Depth)
- Weight : 0.275 lb
- Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
