Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Emergency Stop Switch
- Series
- Harmony XB4
- Frame
- Harmony XB4 Series
- Country of origin
- Czechia
- UPC
- 38911088705
- GTIN
- 03389110887051
- Dimensions
- 1.9 in (47 mm) x 1.6 in (40 mm) x 3.2 in (82 mm) (Height x Width x Depth)
- Weight
- 0.291 lb
- Certification
- Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Product description & additional details
XB4BS8445

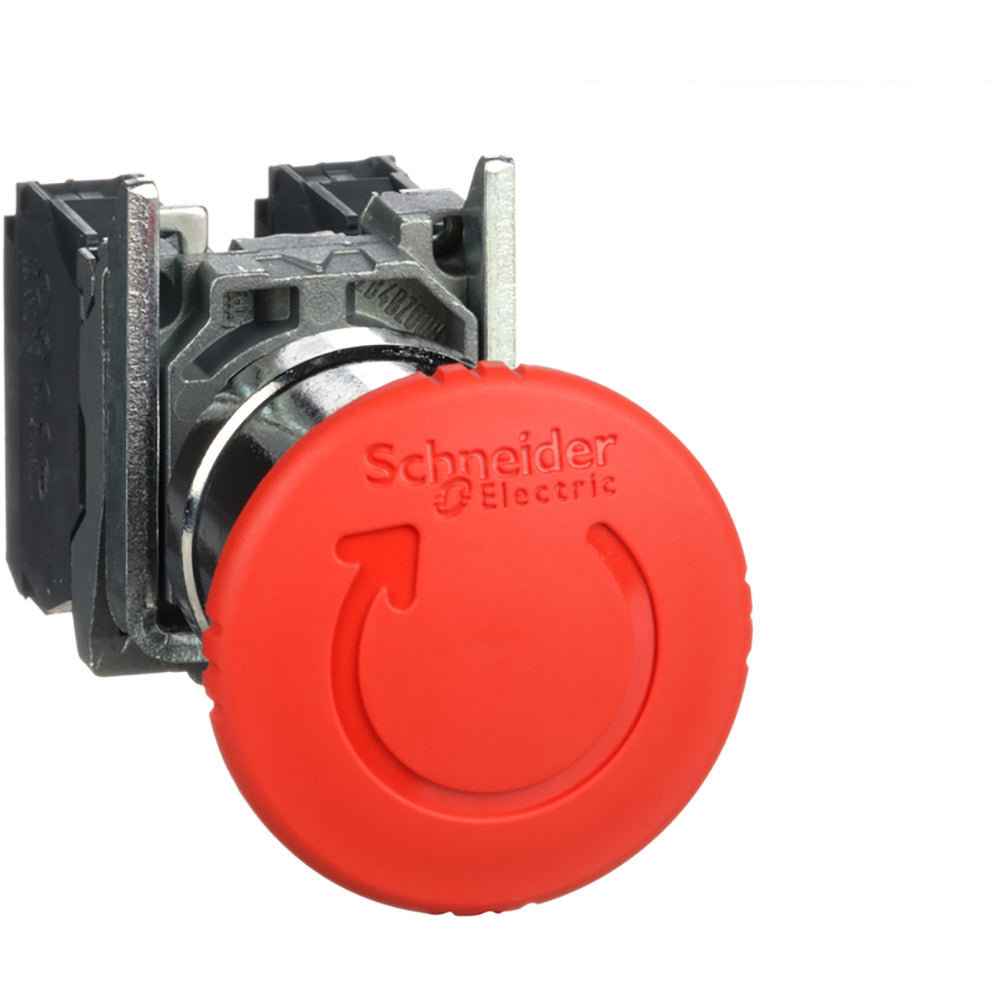

XB4BS8445 is a Schneider Electric Harmony XB4 Series emergency stop pushbutton designed for reliable machine safety and control.This complete emergency stop switch features a red 40mm diameter mushroom head actuator with a chromium-plated metal bezel and Zamak fixing collar. It includes 1 normally open (NO) and 1 normally closed (NC) slow-break silver alloy contacts rated at 1.2 A at 600 VAC. The operator is trigger action with mechanical latching and a turn-to-release reset. It mounts in a 22mm cutout and uses screw clamp terminals for secure wiring. The device is rated for IP66, IP67, IP69, and IK03 protection, suitable for harsh environments, and complies with multiple international standards including IEC 60947 and UL 508.
- Key Specifications
- Part Number: XB4BS8445
- Manufacturer: Schneider Electric
- Series: Harmony XB4
- Actuator: Red Mushroom Head, 40 mm diameter
- Contact Configuration: 1 NO + 1 NC slow-break silver alloy
- Contact Rating: 1.2 A at 600 VAC
- Mounting Diameter: 22 mm cutout
- Reset Type: Turn-to-release mechanical latching
- Bezel Material: Chromium-plated metal
- Fixing Collar Material: Zamak
- Terminal Type: Screw clamp terminals
- Protection Rating: IP66, IP67, IP69, IK03
- Operating Temperature: -40 to 70 °C
Specifications
- Part Number: XB4BS8445
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Switch
- Item Subcategory : Emergency Stop Switch
- Family : Harmony XB4
- Type : Harmony XB4 Series
Product Data
- UPC : 38911088705
- GTIN : 03389110887051
- Country of Origin : Czechia
- Dimensions : 1.9 in (47 mm) x 1.6 in (40 mm) x 3.2 in (82 mm) (Height x Width x Depth)
- Weight : 0.291 lb
- Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
