XB4BA42 - Schneider Electric 6A 600V AC/DC 1NC Red Round Pushbutton Switch Harmony XB4 Series

XB4BA42

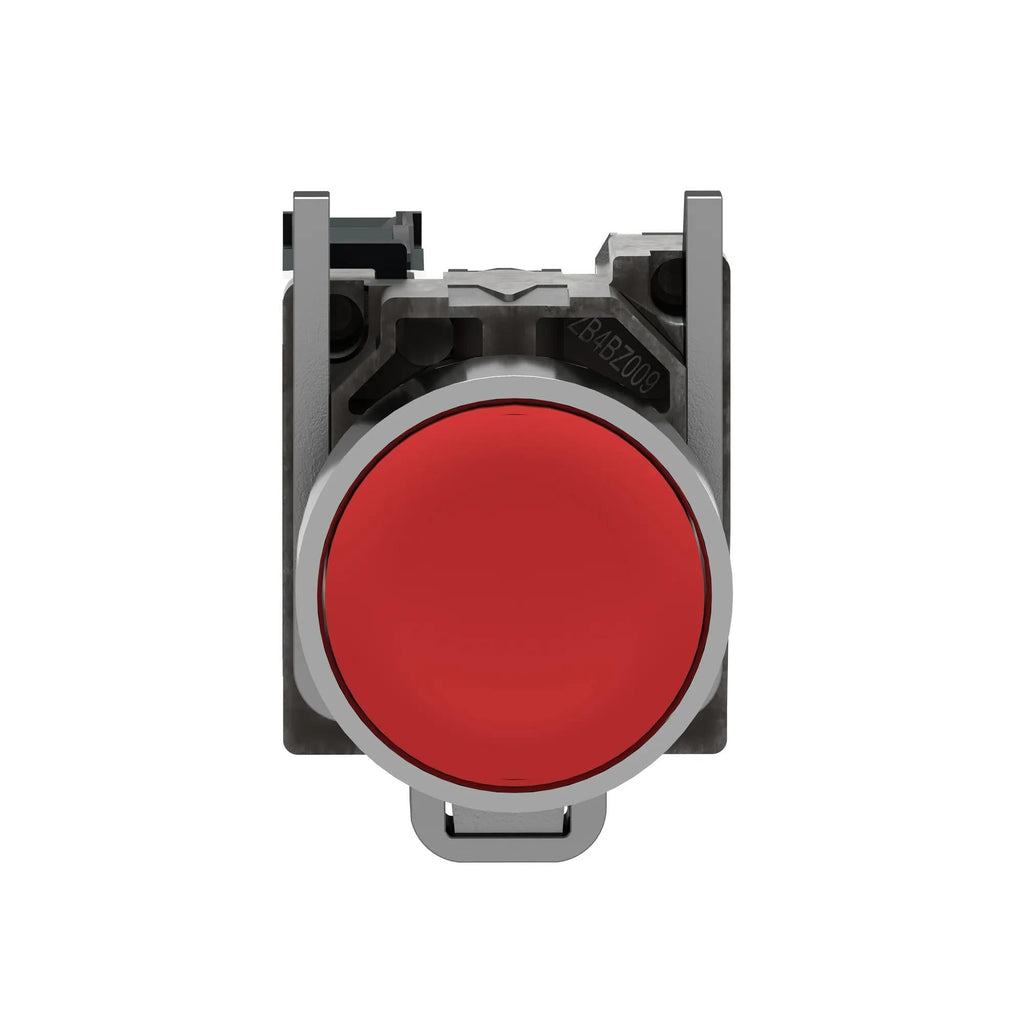

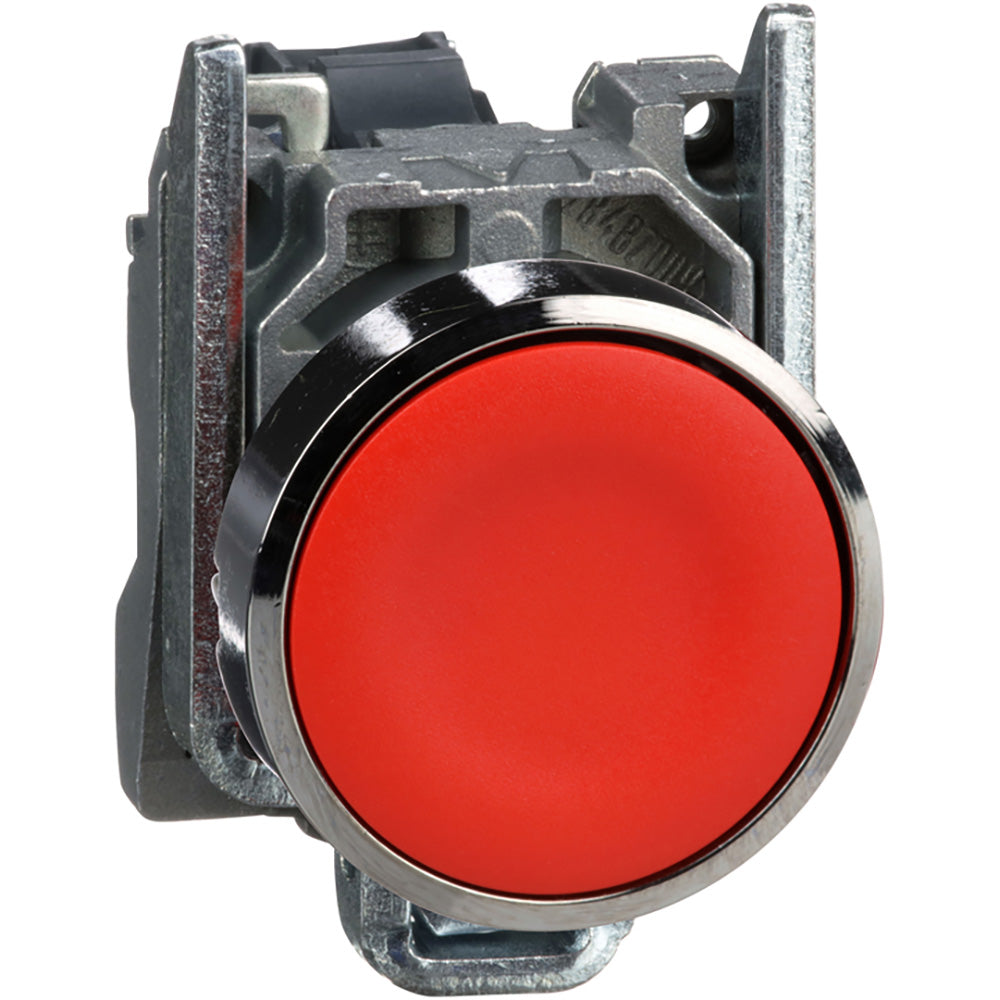

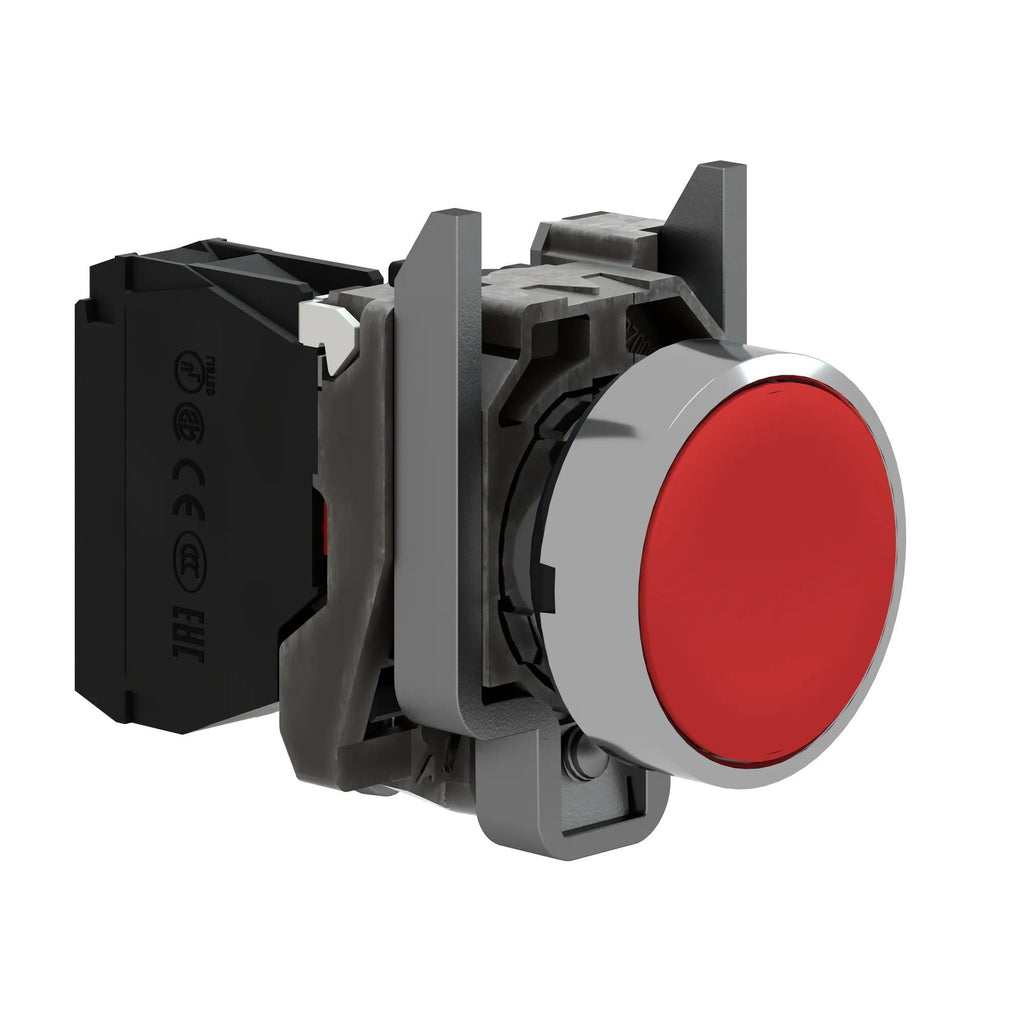

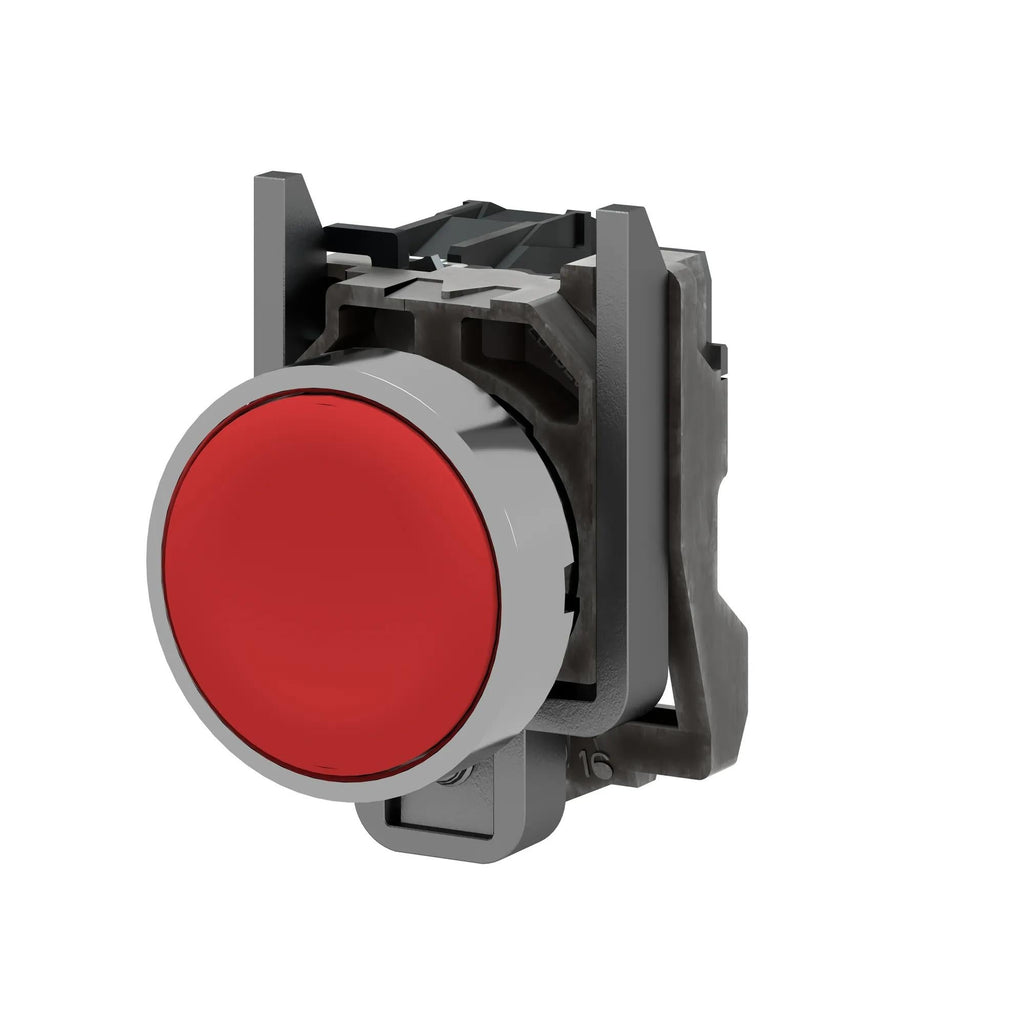

XB4BA42 is a red round pushbutton switch from Schneider Electric's Harmony XB4 Series designed for panel mounting with a 22mm cutout.This pushbutton switch features a normally closed (1NC) contact configuration with a spring return mechanism. It supports a current rating of 6A at 600V AC/DC, making it suitable for industrial control applications. The switch is non-illuminated, has a flat actuator, and offers IP66 protection for dust and water resistance. It mounts securely with screw terminals and operates reliably within a temperature range of -25 to 70°C.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: XB4BA42
• Series: Harmony XB4

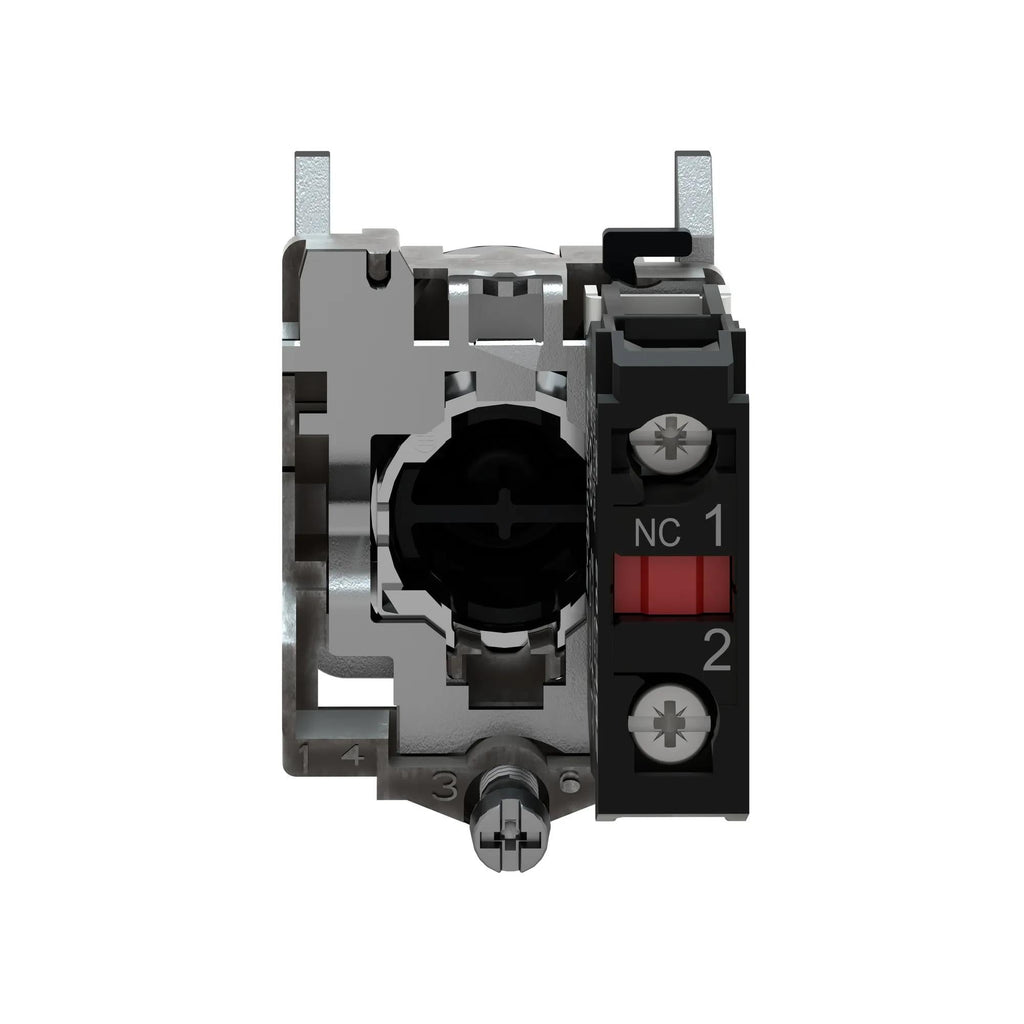

• Contact Configuration: 1 Normally Closed (1NC)
• Current Rating: 6A AC / 600V AC/DC
• Voltage Rating: Up to 600V AC/DC
• Mounting Type: Panel mount, 22mm cutout
• Actuator Color: Red
• Switch Function: Off-(On), spring return
• Ingress Protection: IP66
• Operating Temperature: -25 to 70°C
• Terminal Type: Screw terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB4BA42
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Pushbutton Switch
• Type : Harmony XB4 Series
• Voltage : 600
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 38911088696
• GTIN : 03389110886962
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 2.05 in (52 mm) (Height x Width x Depth)
• Weight : 0.174 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
