Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7F3644J

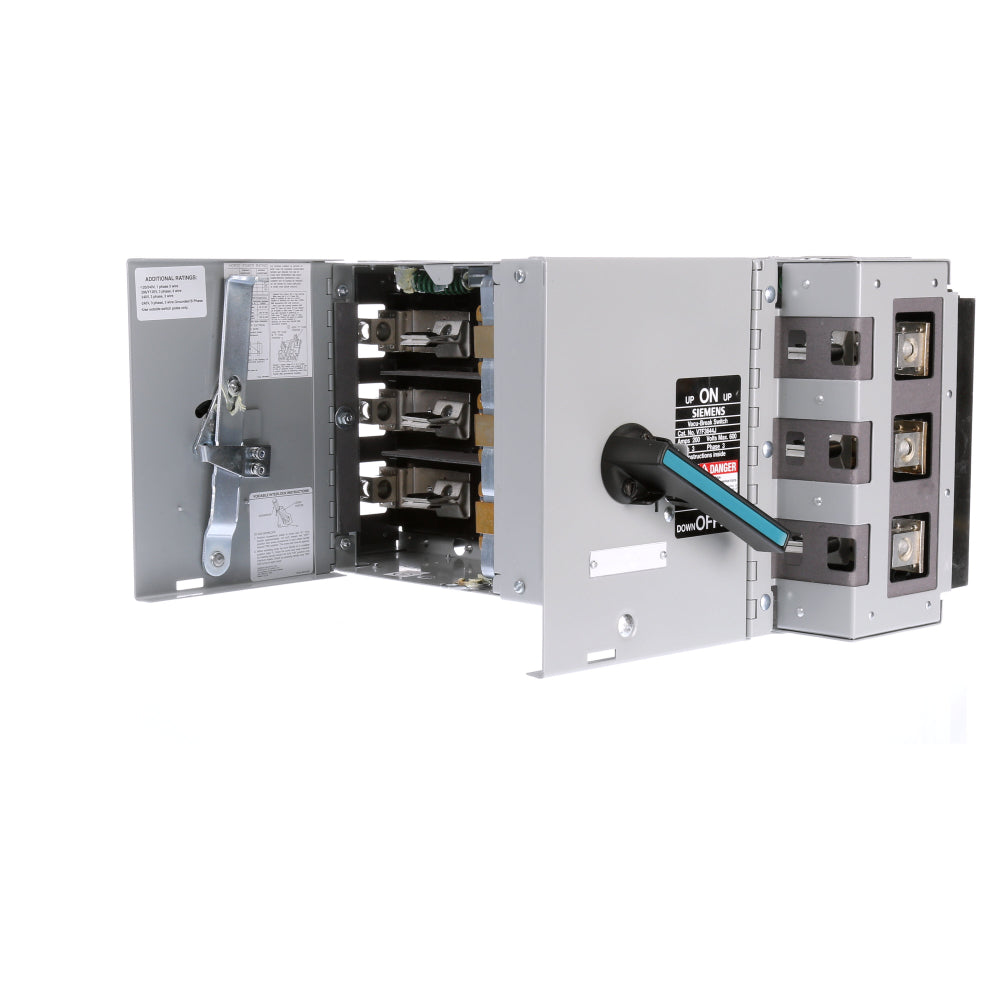

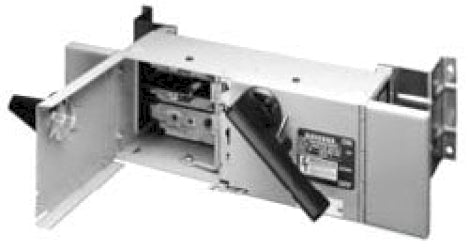

V7F3644J is a Siemens Vacu-Break panelboard disconnect switch rated for 200 amps and 600 volts with 3 poles. It is designed for reliable power distribution and safety in industrial and commercial applications. This Type VB fused switch features a single throw action and is suitable for panel mount installation with a NEMA 1 rating. It supports a short circuit current rating up to 200,000 amps when fused with Class R or Class J fuses, ensuring high interrupt capacity and durability.
- Amperage: 200 Amp
- Voltage Rating: 600 Volt AC
- Number of Poles: 3 Pole
- Type: Vacu-Break, Type VB Fused
- Mounting: Panel Mount
- Interrupt Rating: Up to 200,000 AIC with proper fusing
- Contact Form: TPST (Triple Pole Single Throw)
- Frequency: 60 Hz
- NEMA Rating: 1
- Horsepower Rating: 60 hp
- Certifications: UL Recognized and CSA Certified
Specifications
- Part Number: V7F3644J
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7F
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 783643629530
- GTIN : 00783643629530
- Country of Origin : Mexico
- Dimensions : 23.622 x 12.992 x 10.63 inch
- Weight : 39.994
