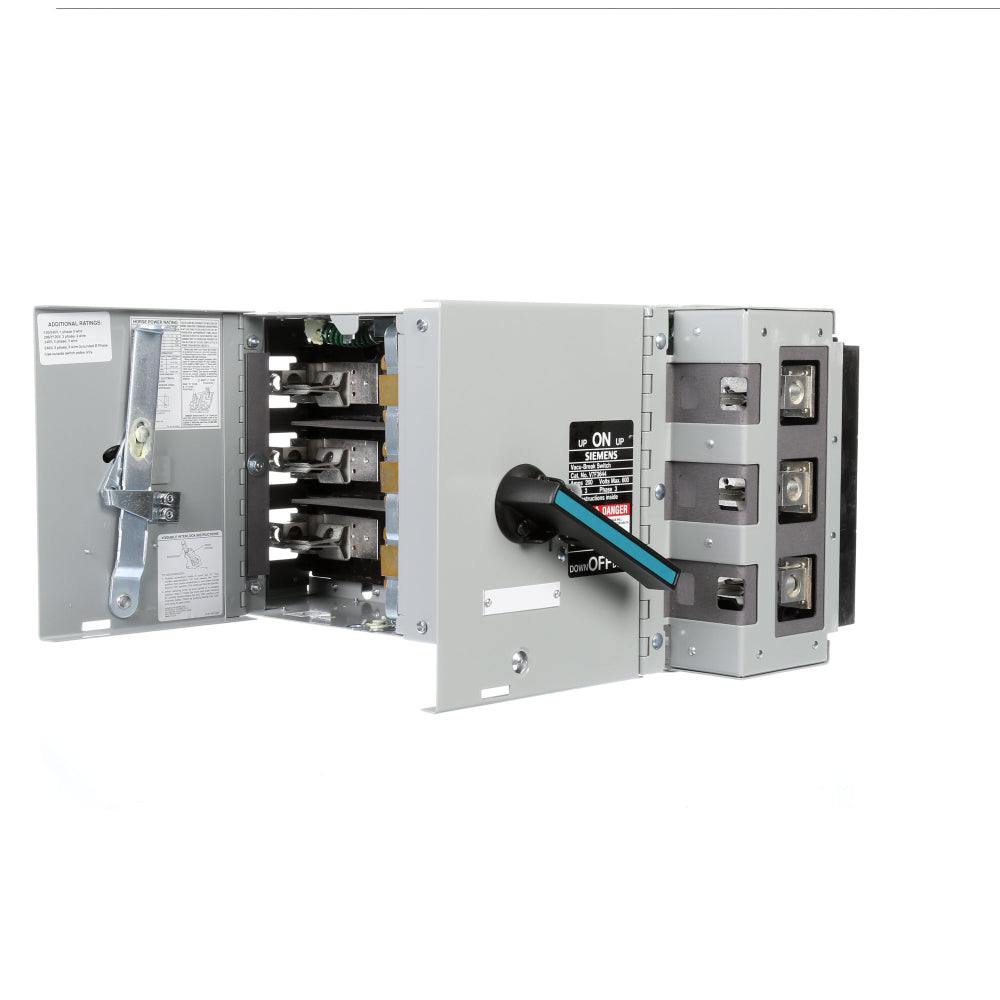

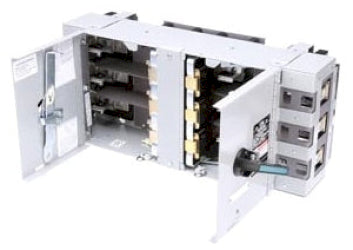

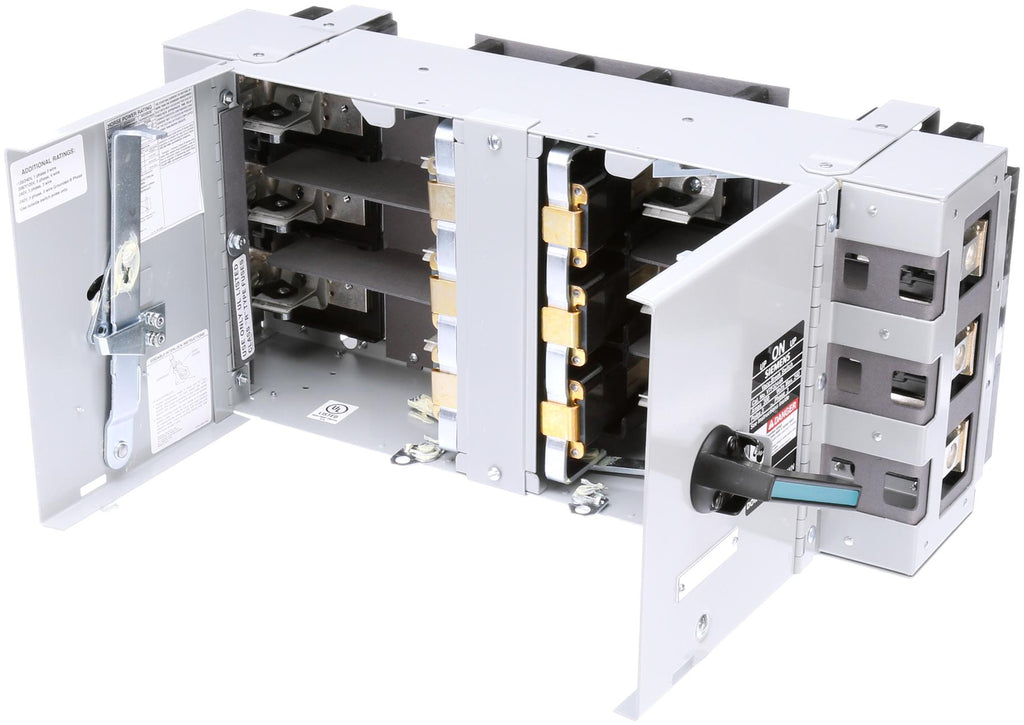

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- ITE
- Brand
- Siemens
- Sub-Category
- Panel Mount
- Series
- Vacu-Break
- Frame
- V7F
- Rated current
- 200
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Configuration
- Dual/Twin
- Switch style
- Fusible
- Fuse class
- R,H,K,J
- NEMA rating
- 1
- Country of origin
- Mexico
Show all specifications (5 more)
- Compatible Frames
- PLP
- UPC
- 783643270343
- GTIN
- 00783643270343
- Dimensions
- 23.622 x 12.992 x 10.63 inch
- Weight
- 37.368 lb
Product description & additional details
V7F3644
V7F3644 is a 3-pole, 200A, 600V fusible panelboard disconnect switch from the ITE Vacu-Break series, designed for reliable circuit isolation in industrial and commercial applications. This ITE Vacu-Break V7F3644 switch features a NEMA 1 enclosure, fiber insulation, and panel mounting for secure installation. It supports a 200A current rating, 600V AC voltage, and a 200kA interrupting rating, making it suitable for demanding environments. The switch is equipped with a handle actuator and TPST contact form for safe operation.
- Part Number: V7F3644
- Manufacturer: ITE
- Series: Vacu-Break
- Amperage Rating: 200A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 200kA
- Enclosure Type: NEMA 1
- Contact Form: TPST
- Insulation Type: Fiber
- Actuator Type: Handle
Specifications
- Part Number: V7F3644
- Manufacturer : ITE
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7F
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K,J
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 783643270343
- GTIN : 00783643270343
- Country of Origin : Mexico
- Dimensions : 23.622 x 12.992 x 10.63 inch
- Weight : 37.368 lb
