Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7E3612J

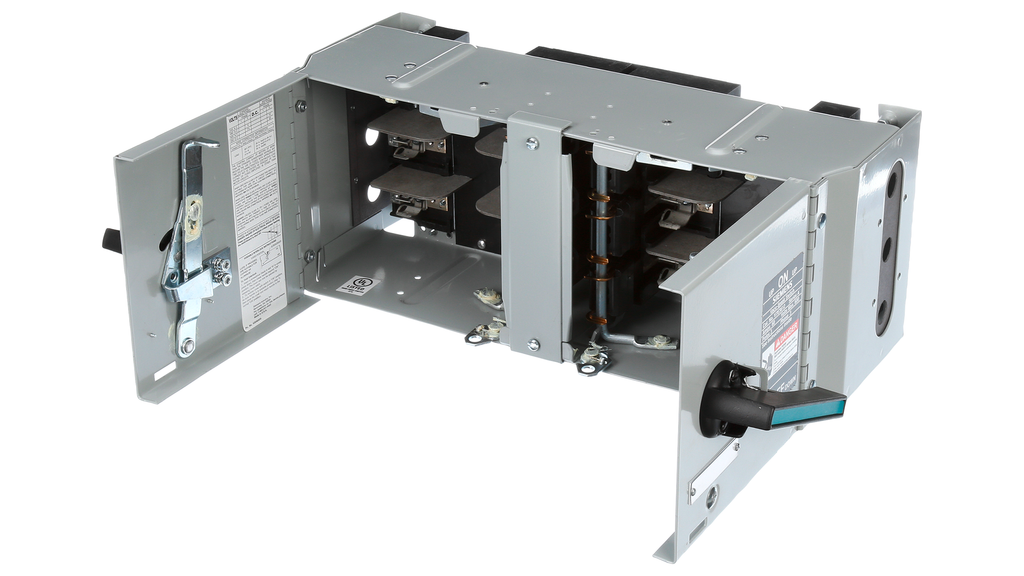

V7E3612J is a 3-pole fusible panelboard switch rated for 30/60 amperes at 600 volts AC, designed for industrial power distribution and control applications. This Vacu-Break switch provides reliable load isolation and circuit protection in panelboard installations. The unit features a compact NEMA 1 enclosure suitable for indoor use and accepts fuse classes R, H, and K for flexible overcurrent protection. Operating temperature range spans -20F to 120F with 10,000 operating cycles rated at 60 Hz frequency.
- Amperage Rating: 30/60 Amps
- Voltage Rating: 600V AC
- Poles: 3-Pole
- Type: Vacu-Break Fusible Panelboard Switch
- Enclosure: NEMA 1
- Fuse Classes Accepted: R, H, K
- Operating Cycles: 10,000
- Frequency: 60 Hz
- Operating Temperature: -20F to 120F
- Insulation: Non-insulated
Specifications
- Part Number: V7E3612J
- Manufacturer : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7E
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- Weight : 37
