Product Info
- Manufacturer:ITE
- Sub-Category:Panel Mount
Description
V7E3611

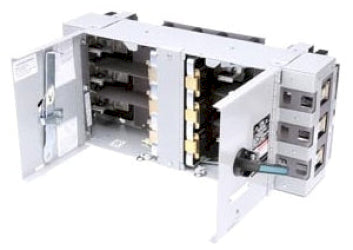

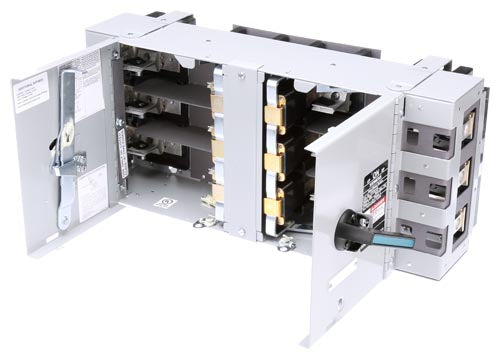

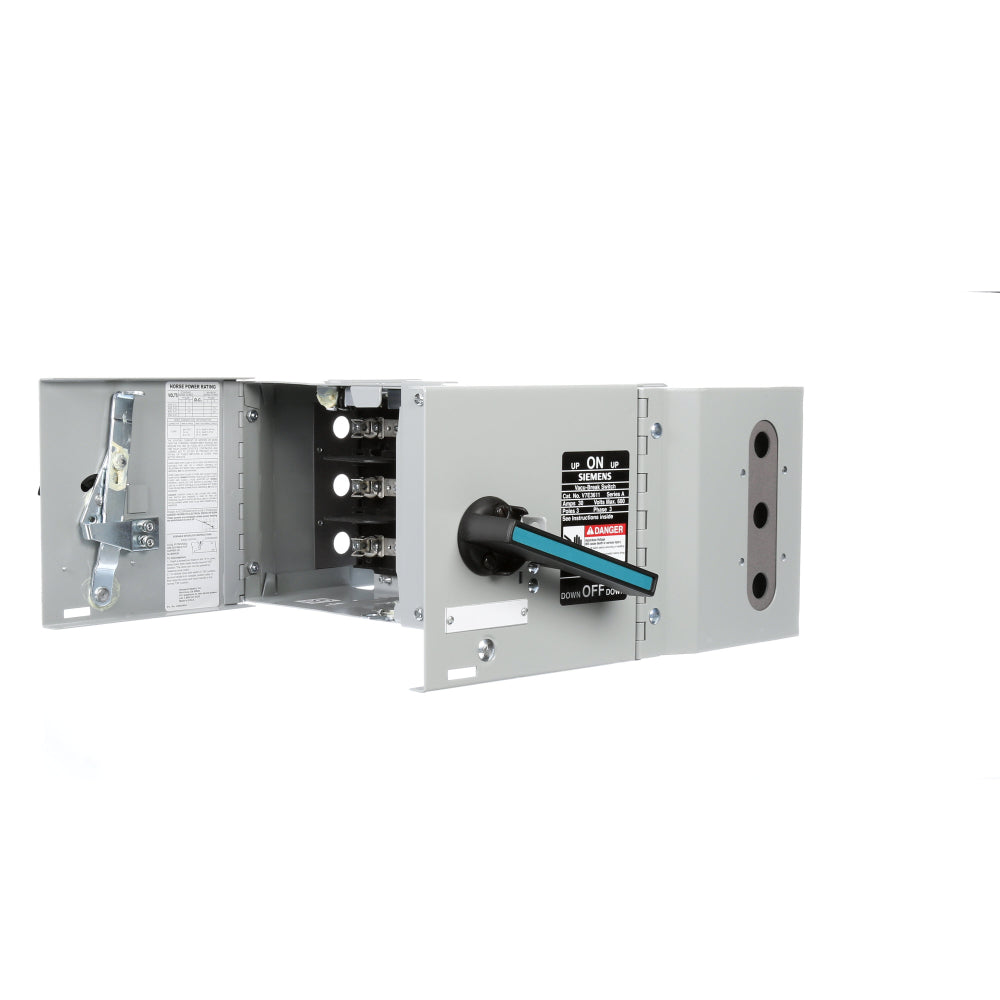

V7E3611 is a 30A, 600V, 3-pole fusible panel mount switch from ITE, designed for reliable circuit protection in commercial and industrial applications. This Vacu-Break type switch features a NEMA 1 enclosure and is suitable for panelboard installations. The ITE V7E3611 is a robust fusible disconnect switch built for durability and safety. It offers a 200kA interrupting rating at 480V, accepts fuse classes R, H, and K, and is designed for easy panelboard mounting. The switch is ideal for use in environments requiring a reliable and certified disconnect solution.
- Part Number: V7E3611
- Manufacturer: ITE
- Series/Frame: Vacu-Break V7E
- Amperage: 30A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 200kA @ 480V
- Enclosure: NEMA 1
- Accepted Fuse Classes: R, H, K
- Wire Size: 14 to 4 AWG (Aluminum/Copper)
- Dimensions: 17" W x 6-3/4" D x 7-1/2" H
Specifications
- Part Number: V7E3611
- Manufacturer : ITE
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7E
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Temp Rating : -13–158 °F (-25–70 °C)
- Fuse Class : R,H,K
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 783643232952
- GTIN : 00783643232952
- Country of Origin : Mexico
- Dimensions : 20.866 x 10.63 x 10.236 inch
- Weight : 20.591
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL
