Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7E3603

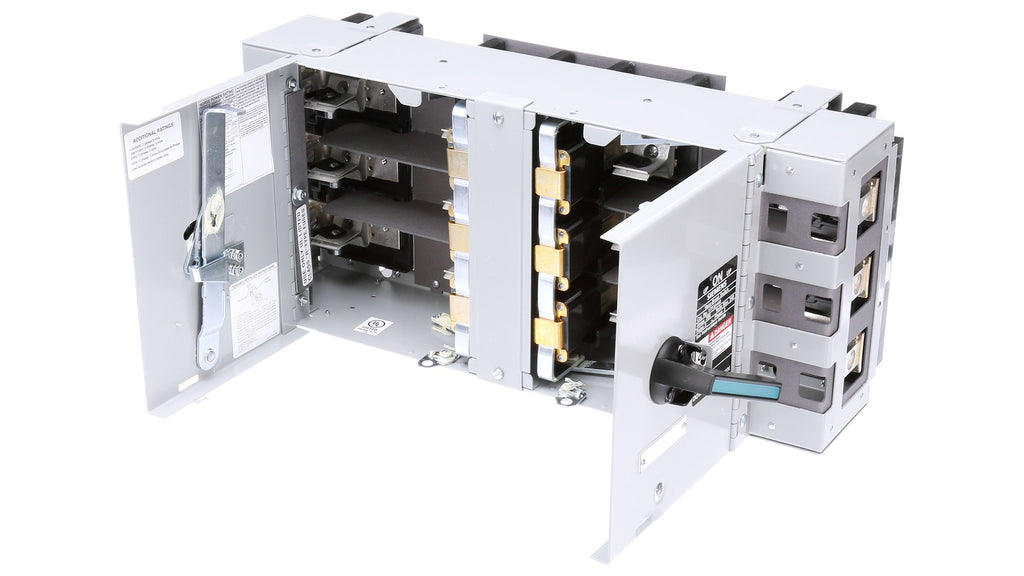

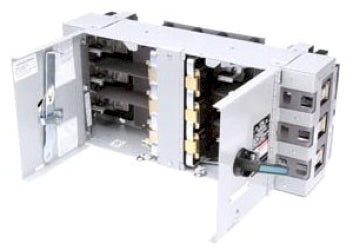

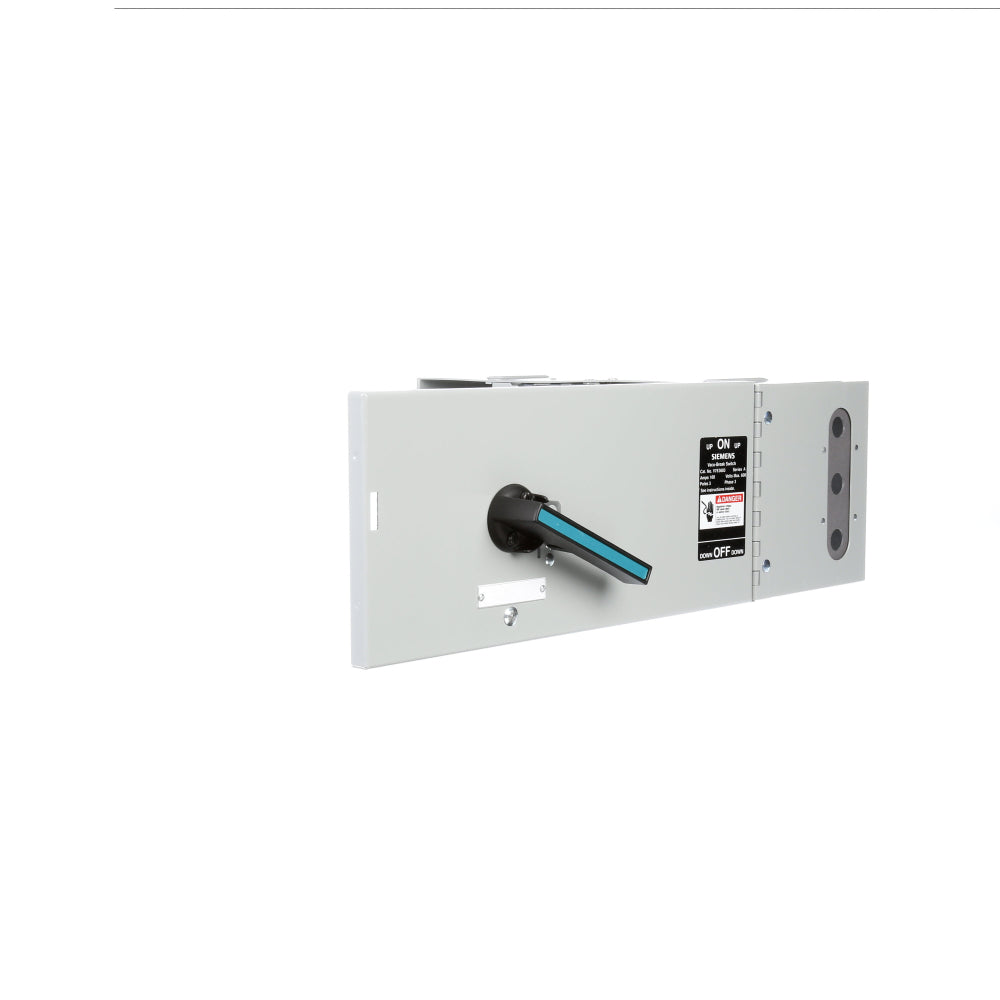

V7E3603 is a Siemens Vacu-Break panelboard disconnect switch rated for 100 amps and 600 volts with 3 poles.V7E3603 features a 3-pole, triple-pole single-throw (TPST) design suitable for panelboard applications, with a 200kA interrupt rating and 30 hp motor rating at 600 VAC. It is NEMA 1 rated and designed for 60 Hz operation.
- Amperage: 100 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Interrupt Rating: 200kAIC
- Type: Vacu-Break Panelboard Switch
- Contact Configuration: TPST (Triple Pole Single Throw)
- Horsepower Rating: 30 hp at 600 VAC
- Frequency: 60 Hz
- Mounting: Panelboard
- Enclosure Rating: NEMA 1
- Series/Frame: Type VB
- Fuses: Sold separately
Specifications
- Part Number: V7E3603
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7E
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : FAP
Product Data
- UPC : 783643231177
- GTIN : 00783643231177
- Country of Origin : Mexico
- Dimensions : 21.26 x 10.236 x 10.63 inch
- Weight : 11.998
