Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TQD32225ST1

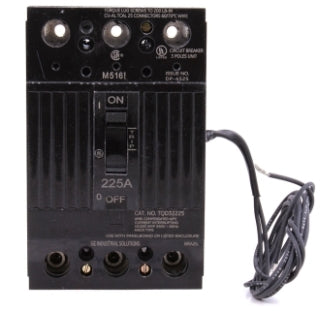

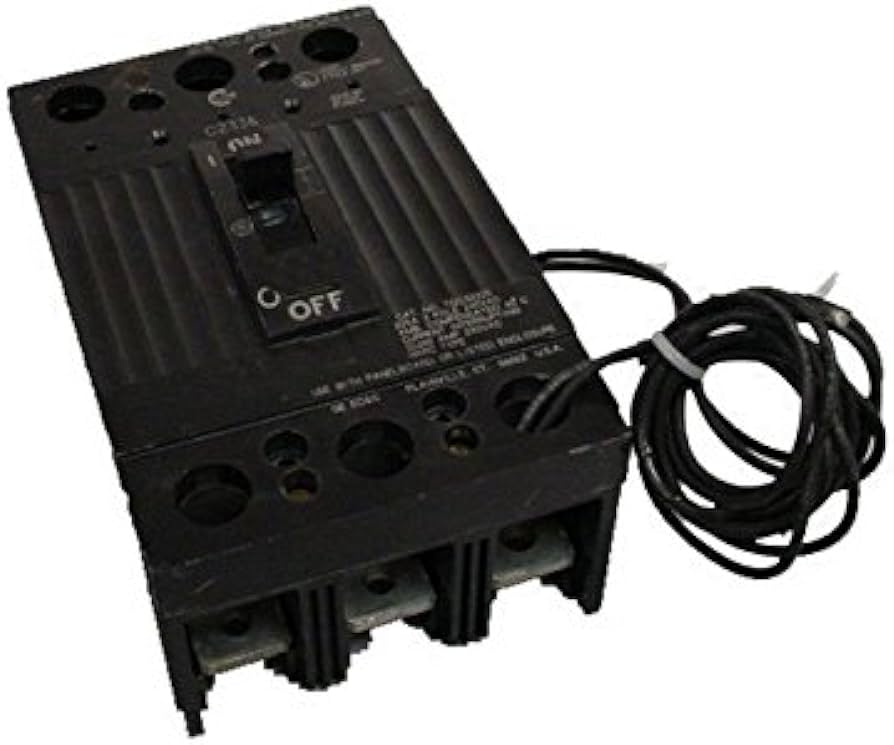

TQD32225ST1 is a General Electric molded case circuit breaker designed for reliable protection in three-phase electrical systems.
This 225 amp, 3-pole circuit breaker is rated for 240VAC and 600V, featuring a TQD frame, bolt-on mounting, and a thermal magnetic trip unit with long time and instantaneous trip functions. It includes a factory-installed 120V shunt trip and load side lug terminals for easy installation and enhanced safety. The interrupting rating is 10kAIC at 240V, ensuring robust performance in demanding applications.
-
Key Specifications
- Part Number: TQD32225ST1
- Manufacturer: General Electric
- Amperage: 225A
- Voltage: 240VAC, 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC @ 240V
- Series/Frame: TQD
- Trip Unit: Thermal Magnetic
- Shunt Trip: 120V (factory installed)
- Terminals: Load side lugs
- Certifications: Not specified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: TQD32225ST1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164179316
- GTIN : 00783164179316
- Weight : 3
