Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TQD22225WL

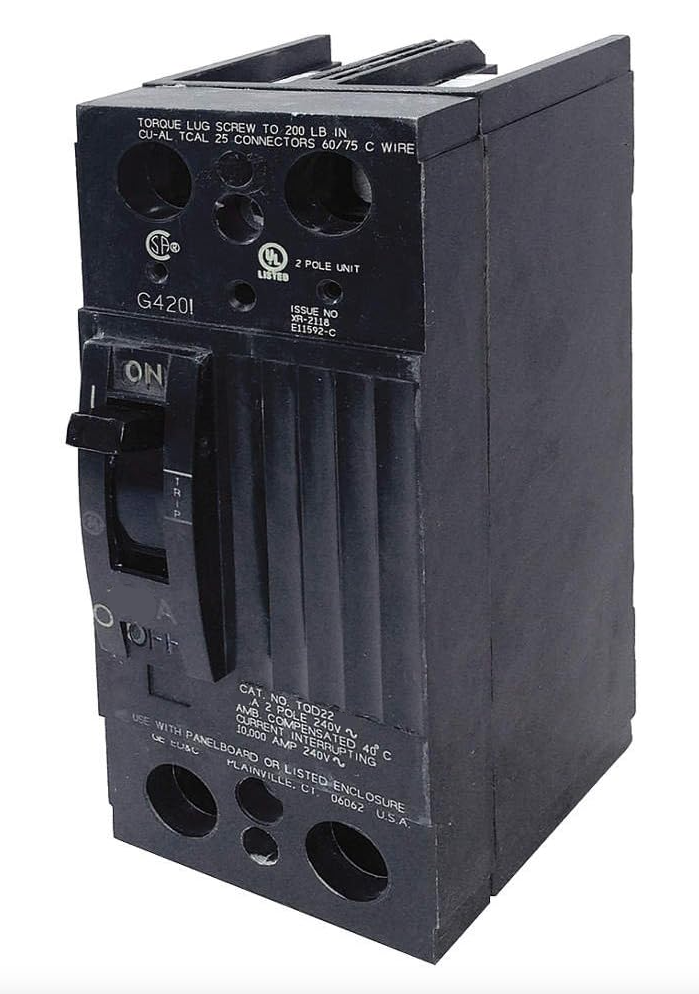

TQD22225WL is a General Electric Q-Line Type TQD molded case circuit breaker rated for 225 amps and 240 volts with 2 poles and a 10kA interrupt rating.This circuit breaker features a thermal magnetic trip unit with LI/non-interchangeable trip, designed for feed-thru mounting in Q-Line panels. It provides reliable protection for single-phase electrical systems with a 10,000 amp interrupt capacity at 240 VAC.
- Manufacturer: General Electric
- Part Number: TQD22225WL
- Amperage: 225 A
- Voltage: 240 VAC
- Poles: 2
- Interrupt Rating: 10 kA at 240 V
- Trip Unit: Thermal Magnetic, LI/Non-Interchangeable
- Mounting Type: Feed-Thru
- Series/Frame: Q-Line Type TQD
- Phase: Single Phase
- Certifications: UL Listed
Specifications
- Part Number: TQD22225WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164021233
- GTIN : 00783164021233
- Weight : 2
- Certification : UL Listed
