Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TQD22150WL

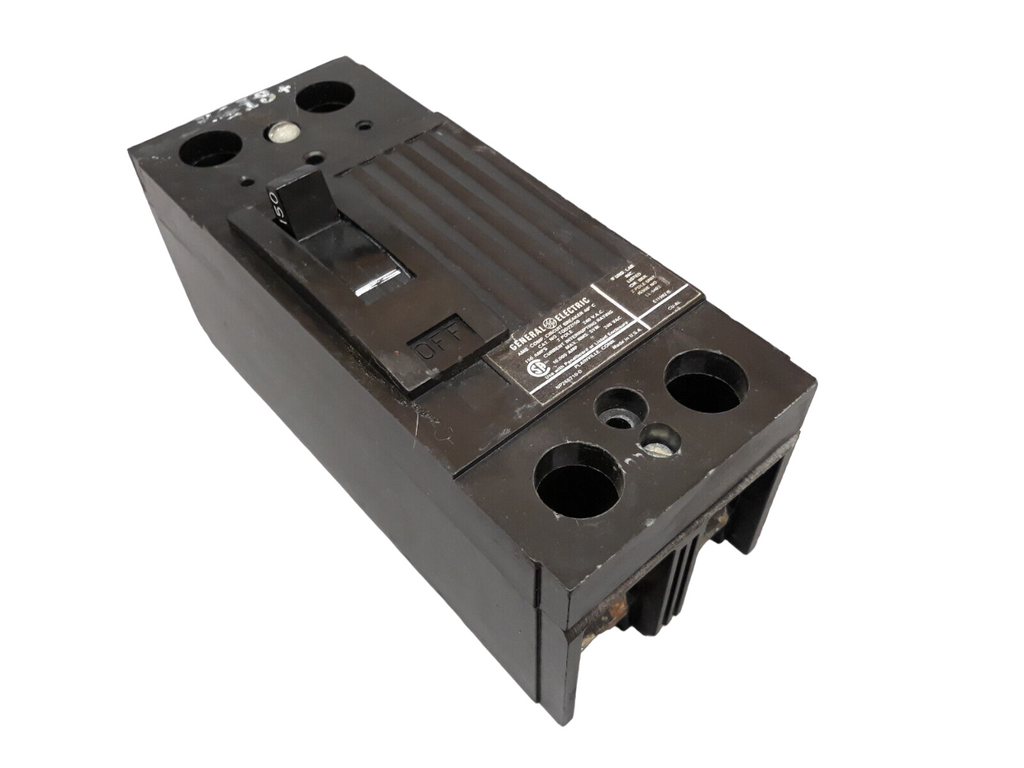

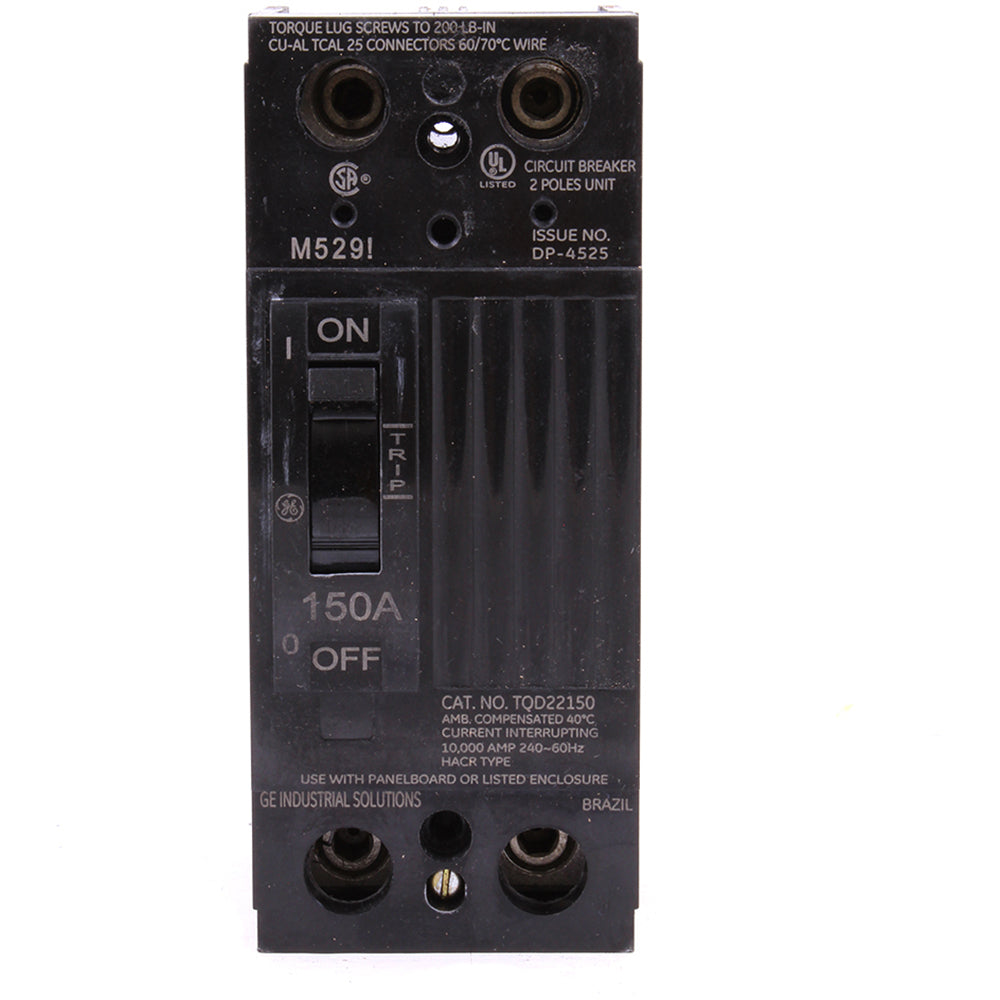

TQD22150WL is a 2 pole, 150 amp, 240 Volt molded case circuit breaker from General Electric designed for reliable circuit protection.This General Electric TQD22150WL circuit breaker features a thermal magnetic trip unit with a 10,000 amp interrupt rating at 240 VAC. It has a molded case made from high mechanical and dielectric strength engineered plastic, a quick-make, quick-break trip-free mechanism, and a common trip bar for simultaneous disconnection of all poles. The breaker supports copper or aluminum line and load lugs and is UL approved.
- Key Specifications
- Amperage: 150 A
- Voltage Rating: 240 VAC
- Number of Poles: 2
- Interrupt Rating: 10 kA @ 240V
- Frame Type: TQD Compact
- Trip Unit: Thermal Magnetic (LI/Non-Interchangeable)
- Mounting Type: Feed-Thru
- Wire Size Range: 1 AWG to 300 kcmil
- Trip Indication: Handle position midway between ON and OFF
- Certifications: UL Listed
- Part Number: TQD22150WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 150
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783164021172
- GTIN : 00783164021172
- Dimensions : 6.56" X 2.75" X 2.67"
- Weight : 2 lb
