Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

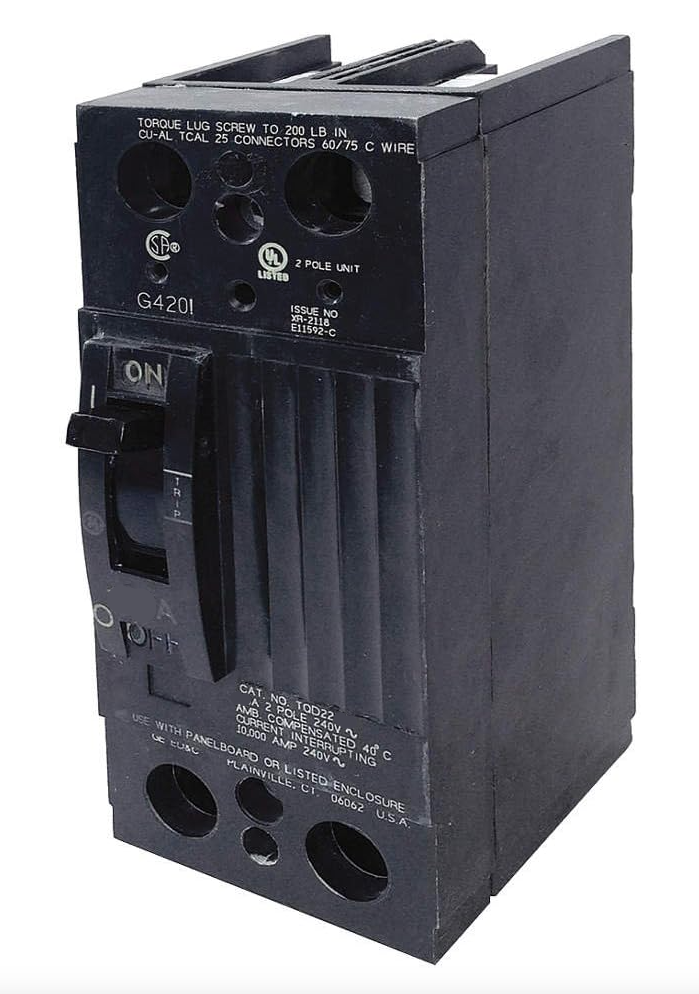

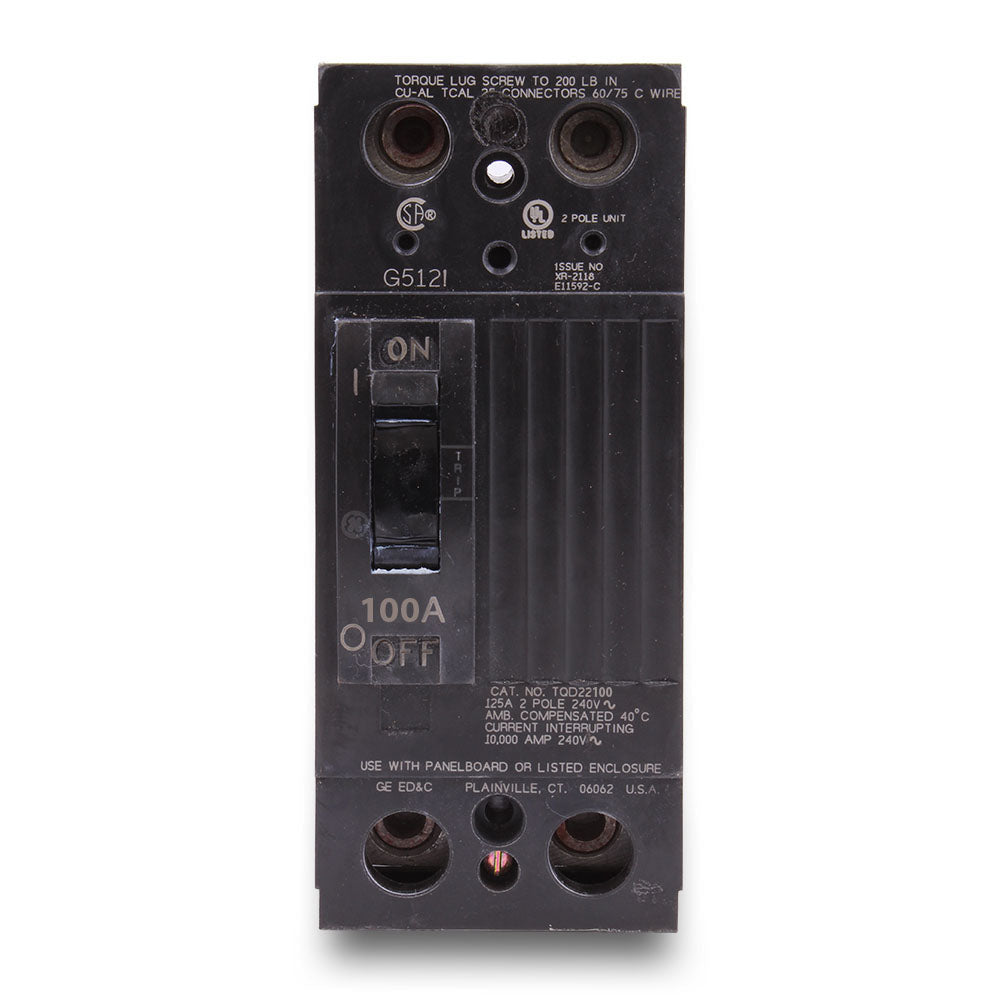

TQD22100
TQD22100 is a General Electric Q-Line Type TQD compact molded case circuit breaker rated for 100 amps and 240 volts with 2 poles and thermal magnetic trip.This circuit breaker features a 10 kA interrupt rating at 240 VAC, non-interchangeable trip unit, and is designed for bolt-on mounting in Q-Line frames.
- Amperage: 100 A
- Voltage: 240 VAC
- Poles: 2
- Interrupt Rating: 10 kA at 240 V
- Trip Unit: Thermal Magnetic, non-interchangeable
- Frame/Series: Q-Line, Type TQD
- Mounting Type: Bolt-On
- Phase: Single Phase
- Connection: Line and Load Side Lug Terminals
- Temperature Rating: 40°C
- Certifications: Meets industry standards for molded case circuit breakers
Specifications
- Part Number: TQD22100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078316413567
- GTIN : 00783164135671
- Weight : 2
