TQD22125WL - General Electric 125 Amp 2 Pole 120/240VAC Thermal Magnetic Circuit Breaker

SKU: TQD22125WL-New
Condition: New
Price:
$831.77
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

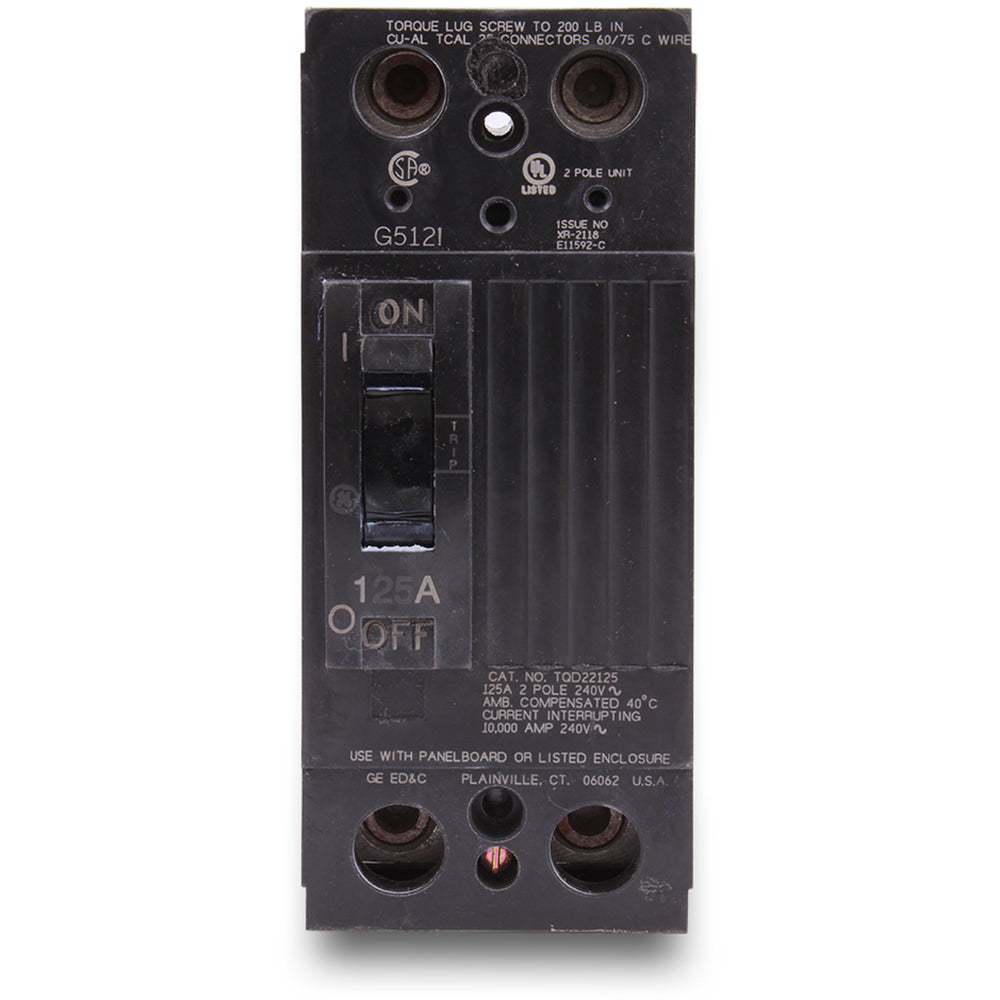

General Electric TQD22125WL Circuit Breaker | Q-Line TQD 240V 125A - Essential Electric Supply

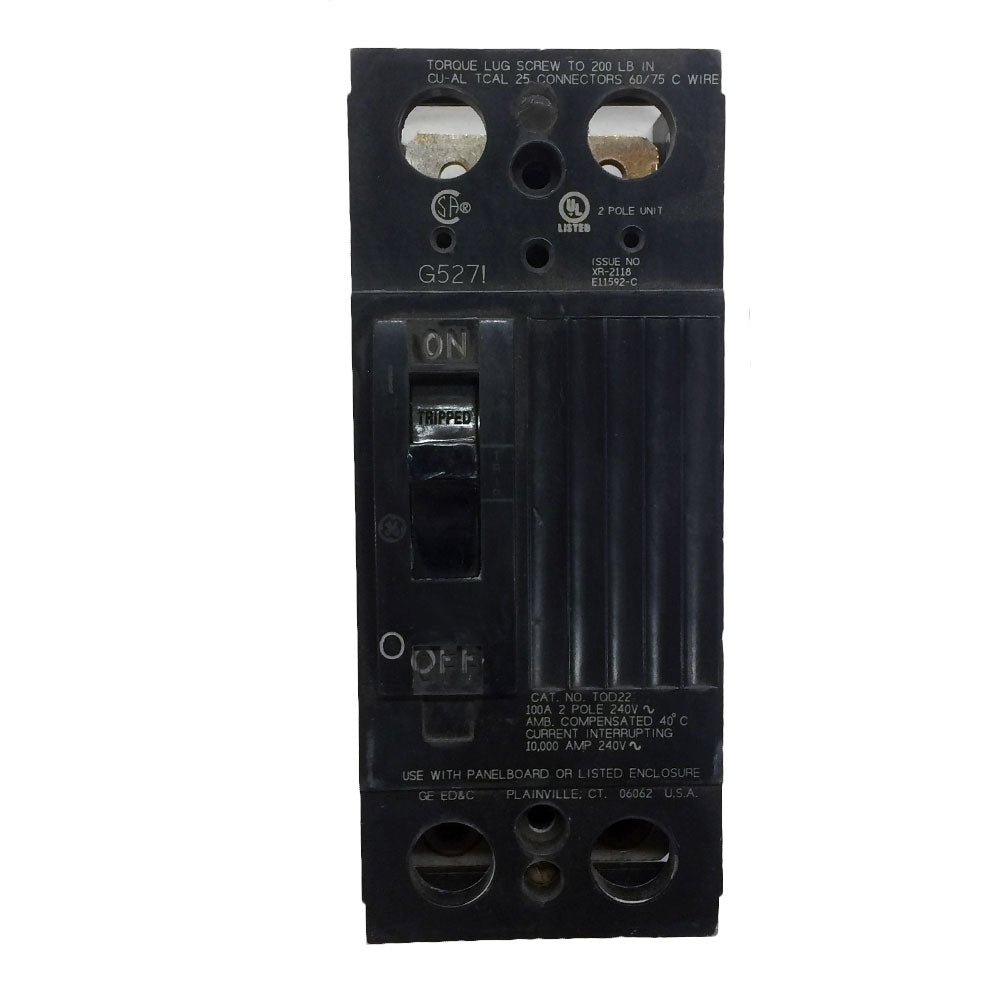

TQD22125WL - General Electric Feed-Thru 240V 125A 2 pole circuit breaker 10kA@240V - Essential Electric Supply

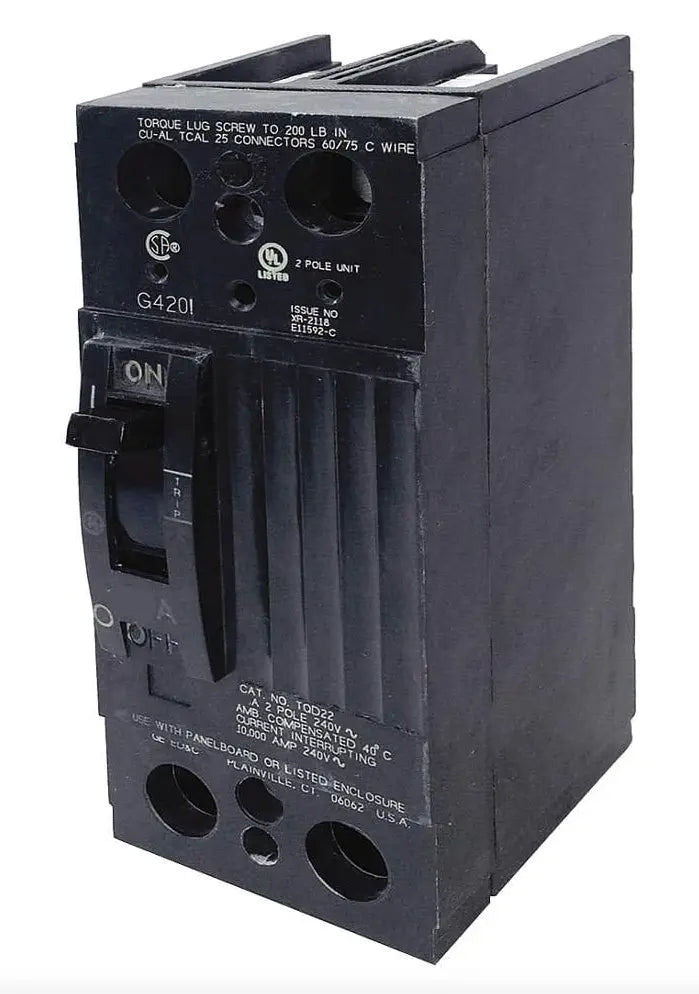

TQD22125WL - General Electric 125 Amp 2 Pole 120/240VAC Thermal Magnetic Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
General Electric TQD22125WL Circuit Breaker | Q-Line TQD 240V 125A - Essential Electric Supply
TQD22125WL - General Electric Feed-Thru 240V 125A 2 pole circuit breaker 10kA@240V - Essential Electric Supply
TQD22125WL - General Electric 125 Amp 2 Pole 120/240VAC Thermal Magnetic Circuit Breaker - Essential Electric Supply

Description

TQD22125WL


TQD22125WL is a General Electric 2 Pole thermal magnetic molded case circuit breaker rated for 125 Amps and 120/240VAC applications.

This circuit breaker features a 14kA interrupting rating at 277/480VAC, feed-thru connection type, and includes long-time and instantaneous trip functions (LI). It is UL approved and designed for use in lighting panels and modular metering with load side lug terminals. The breaker supports wire sizes from 4 AWG to 300 MCM and operates at a temperature rating of 40°C.

    Key Specifications
    • Amperage: 125 Amps
    • Voltage: 120/240VAC
    • Poles: 2
    • Interrupt Rating: 14kAIC at 277/480VAC
    • Series/Frame: TQD
    • Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
    • Connection Type: Feed-Thru
    • Terminal Connection: Load Side Lug
    • Mounting Type: Bolt-On
    • Approvals: UL Listed
    • Max Wire Size: 300 MCM
    • Min Wire Size: 4 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: TQD22125WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Q-Line
  • Type : TQD
  • Voltage : 240
  • Amperage : 125
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164021158
  • GTIN : 00783164021158
  • Weight : 2

Accesories

Part Manufacture Sub Category
TQDAS2AB1RS
TQDST1
