Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TQD22125X2

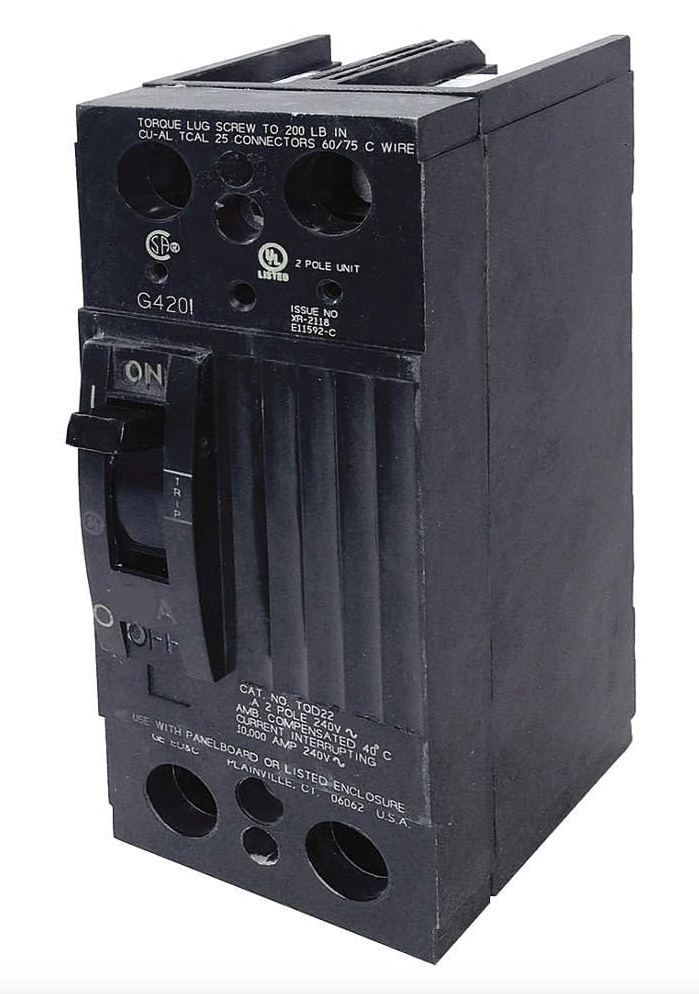

TQD22125X2 is a General Electric 2 pole, 125 amp, 240V molded case circuit breaker with a TQD frame and bolt-on mounting. This breaker features a fixed thermal magnetic trip unit and is designed for reliable protection in commercial and industrial applications. The TQD22125X2 offers a 10kA interrupting rating at 240V, making it suitable for use in AQ panels and other compatible systems. It includes aluminum/copper line lug terminals for secure connections and is UL listed for safety and compliance.
- Part Number: TQD22125X2
- Manufacturer: General Electric
- Amperage Rating: 125A
- Voltage Rating: 120/240V AC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10kA @ 240V
- Series/Frame: TQD
- Common Trip: Yes
- Trip Unit: Fixed Thermal Magnetic
- Terminal Type: Aluminum/Copper Line Lug
- Certification: UL Listed
Specifications
- Part Number: TQD22125X2
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TQD
- Voltage : 240
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316413569
- GTIN : 00783164135695
- Weight : 2
