Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THJK436300LL

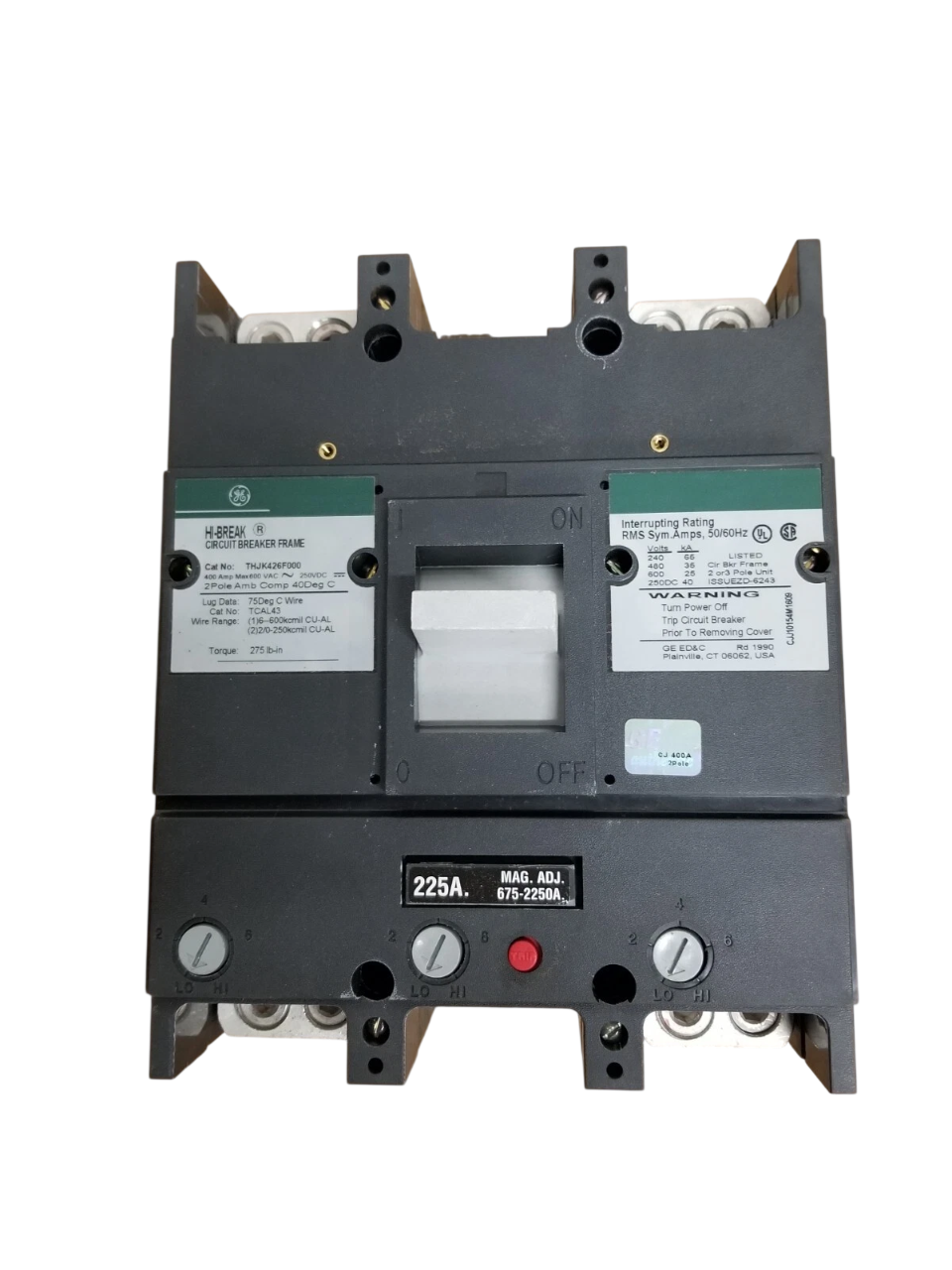

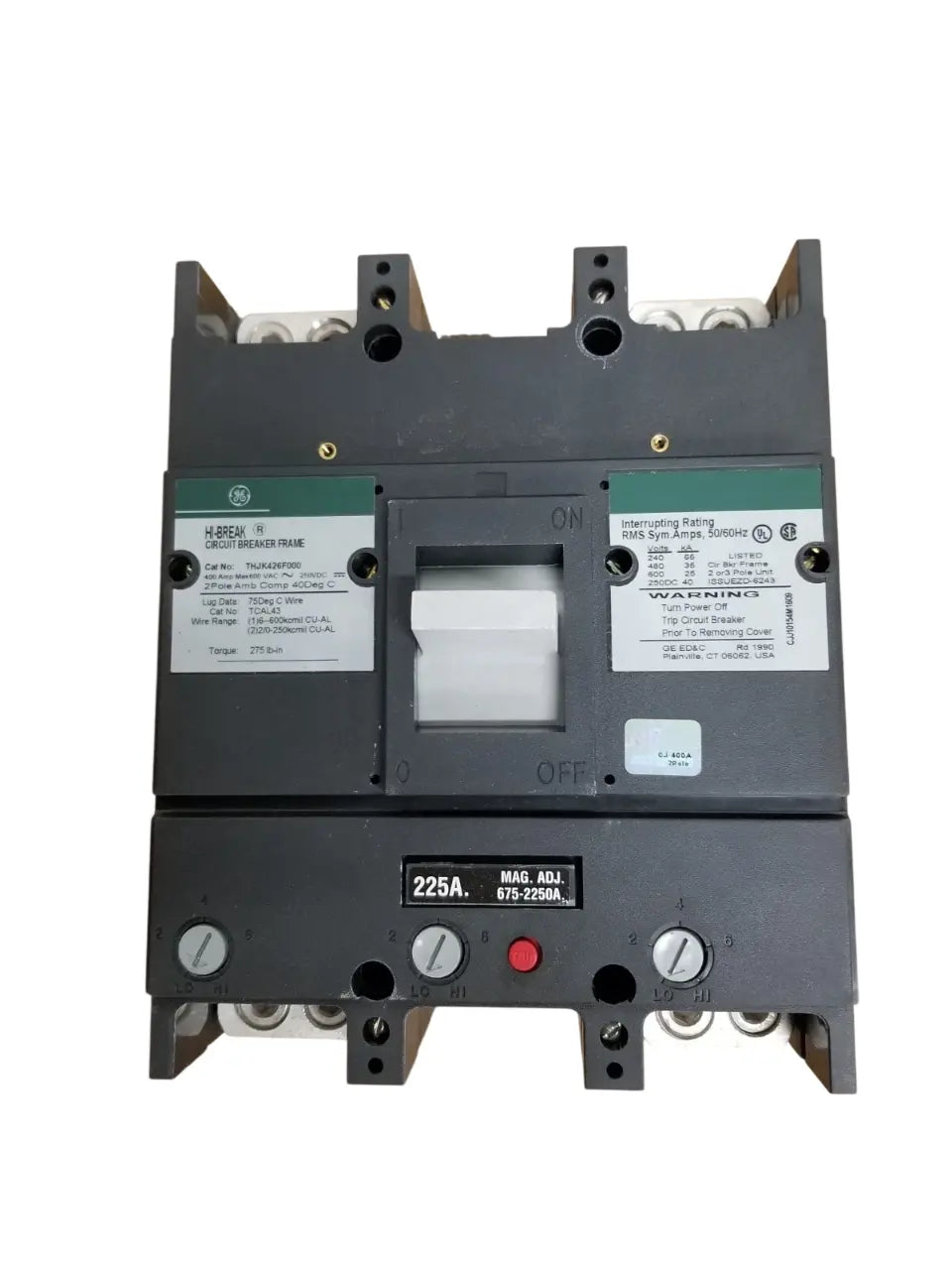

THJK436300LL is a General Electric molded case circuit breaker designed for industrial power distribution applications. This 3-pole, 600-volt rated breaker delivers 300-amp capacity with thermal-magnetic trip protection and is part of the J600 family of circuit breakers. The unit features bolt-on mounting with aluminum/copper load lugs for secure terminal connections and is rated for high interrupting capacity across multiple voltage levels.
- Amperage Rating: 300A
- Voltage Rating: 600V AC
- Poles: 3
- Frame: THJK (J600 Family)
- Mounting Type: Bolt-On
- Trip Type: Thermal Magnetic
- Terminal Connection: Load Lug (Aluminum/Copper)
- Interrupting Rating: 25 kA at 600 VAC
- Interrupting Rating: 35 kA at 480 VAC
- Interrupting Rating: 65 kA at 240 VAC
Specifications
- Part Number: THJK436300LL
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : THJK
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164234084
- GTIN : 00783164234084
- Weight : 18
