2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THJK436225LL

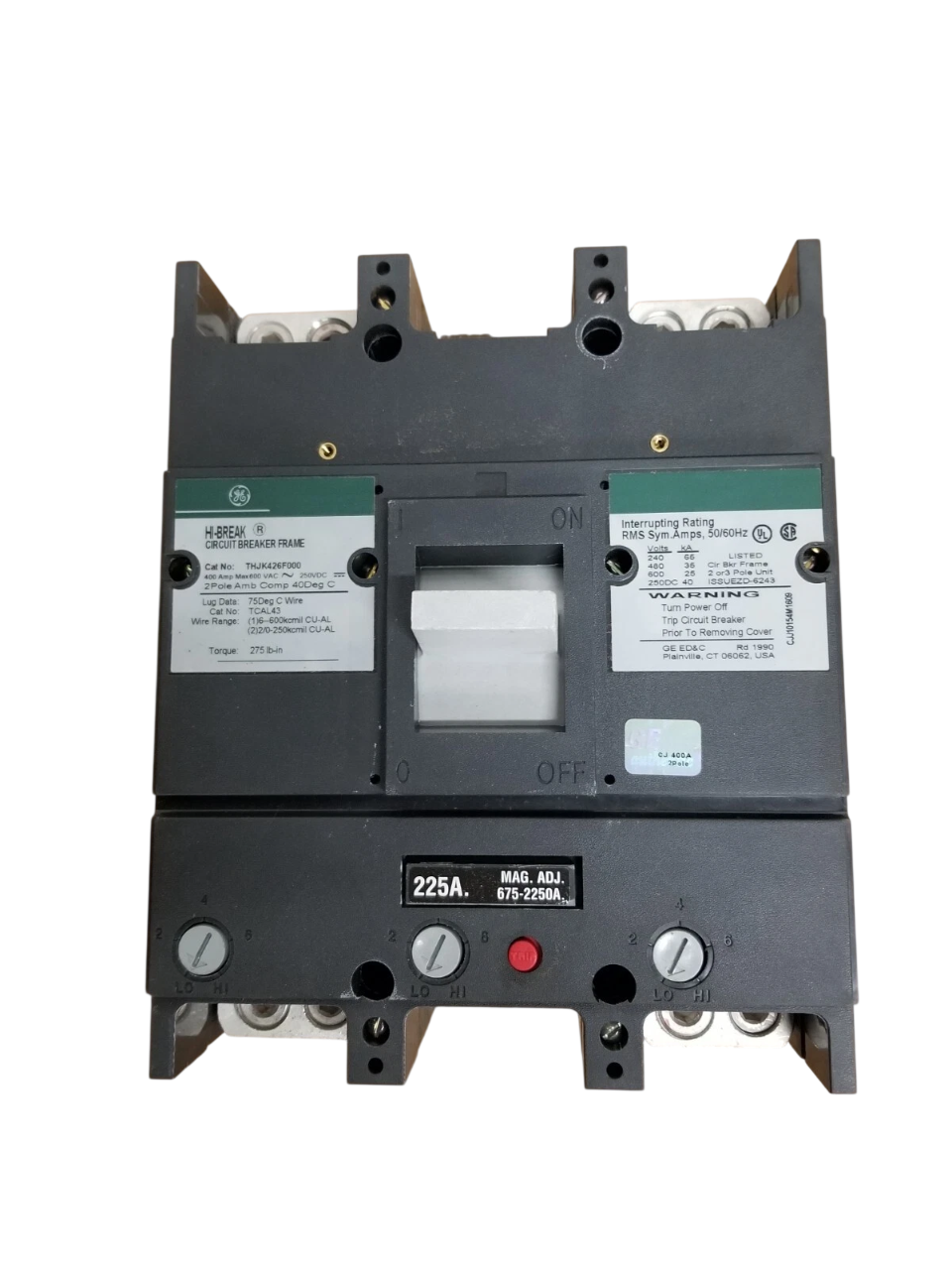

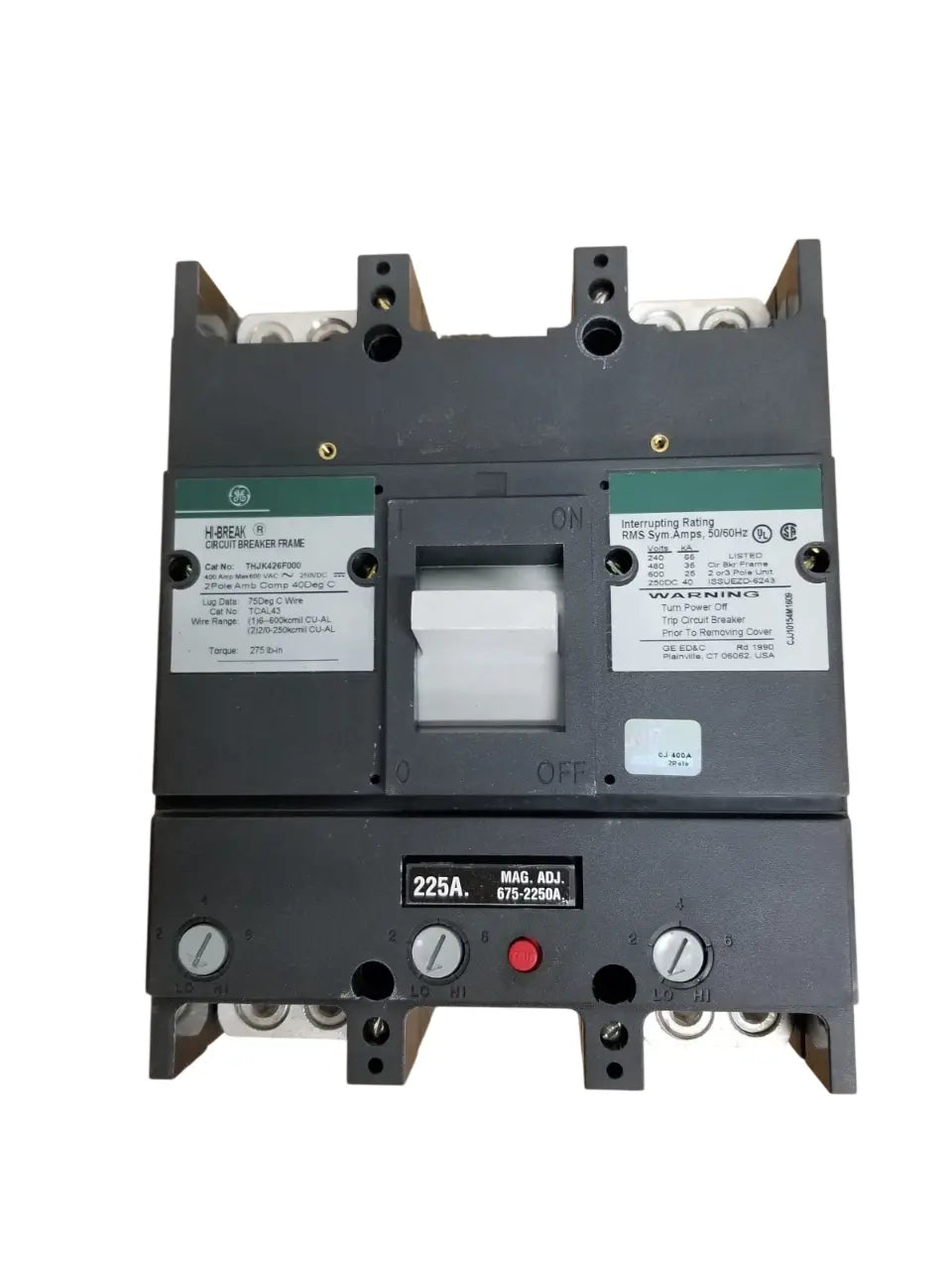

THJK436225LL is a General Electric J600 Line molded case circuit breaker rated for 225 amps at 600 volts with three poles. This thermal magnetic circuit breaker features bolt-on mounting with line and load side lug terminals for reliable power distribution in industrial and commercial applications. Key Specifications
- Part Number: THJK436225LL
- Manufacturer: General Electric
- Frame Type: THJK
- Amperage Rating: 225 Amps
- Voltage Rating: 600 Volts AC
- Poles: 3
- Interrupt Rating: 35kA at 480V
- Mounting: Bolt-On
- Trip Unit: Thermal Magnetic
- Series: J600 Line
- Terminal Type: Line and Load Side Lugs
Specifications
- Part Number: THJK436225LL
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : THJK
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164234046
- GTIN : 00783164234046
- Weight : 18
