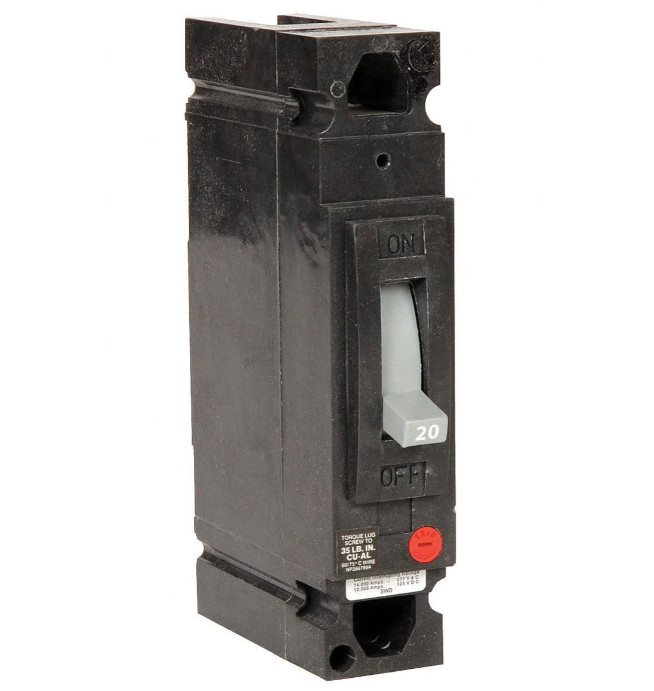

THED114020 - General Electric 20A 1-Pole Thermal Magnetic Molded Case Circuit Breaker E150 Frame 65kAIC

SKU: THED114020-New
Condition: New
Price:
$4,569.30
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

THED114020 - General Electric Bolt-On 347V 20A 1 pole circuit breaker 10kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
THED114020 - General Electric Bolt-On 347V 20A 1 pole circuit breaker 10kA@480V - Essential Electric Supply

Description

THED114020


THED114020 is a General Electric 20A 1-pole thermal magnetic molded case circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features an E150 frame and is rated for 120/240/277/347/480 VAC and 125 VDC, with a 65kAIC interrupting rating at 120/240/277 VAC and 20kAIC at 125 VDC. It is suitable for use in lighting, motor, and general power circuits, and is UL listed for switching duty. This molded case circuit breaker provides long-time and instantaneous protection, ensuring safe and efficient operation. The non-interchangeable trip unit offers precise protection, and the breaker is designed for easy mounting in standard enclosures. It is commonly used in panelboards and switchgear for commercial and industrial installations.
  • Part Number: THED114020
  • Manufacturer: General Electric
  • Amperage: 20A
  • Poles: 1
  • System Voltage: 120/240/277/347/480 VAC, 125 VDC
  • Interrupting Rating: 65kAIC at 120/240/277 VAC, 20kAIC at 125 VDC
  • Frame Type: E150
  • Mounting Type: Standard panelboard mounting
  • Trip Unit: Non-interchangeable thermal magnetic
  • Protection: Long-time and instantaneous (LI)
  • Certifications: UL listed, CSA certified
  • Application: Commercial and industrial lighting, motor, and power circuits
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: THED114020
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : THED
  • Voltage : 347
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164307184
  • GTIN : 40783164307182
  • Weight : 1 lb

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
