Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THED114015WL

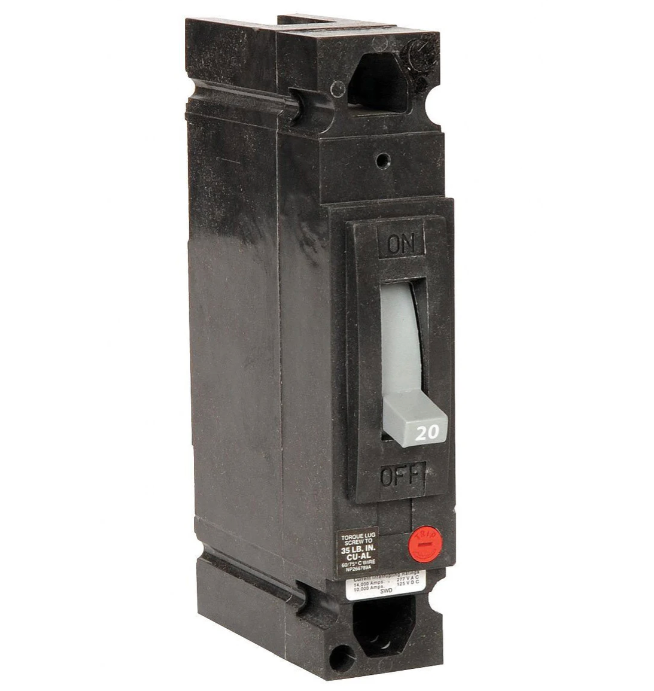

THED114015WL is a General Electric 15A 1 Pole 347V molded case circuit breaker from the E150 Line family, designed for reliable protection in commercial and industrial applications.This breaker features a bolt-on mounting style, thermal magnetic trip unit, and a high interrupting capacity of 18kAIC at 480V. It is suitable for use in systems requiring 347V AC or 125V DC, with load side lug terminals for easy installation.
- Part Number: THED114015WL
- Manufacturer: General Electric
- Amperage: 15A
- Poles: 1
- Voltage Rating: 347V AC, 125V DC
- Mounting Type: Bolt-On
- Interrupting Capacity: 18kAIC @ 480V
- Series/Frame: E150 Line
- Frame Type: TED
- Trip Unit: Thermal Magnetic
- Terminal Type: Load Side Lug
- Application: Commercial, Industrial
Specifications
- Part Number: THED114015WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 347
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316416787
- GTIN : 00783164167870
- Weight : 1
