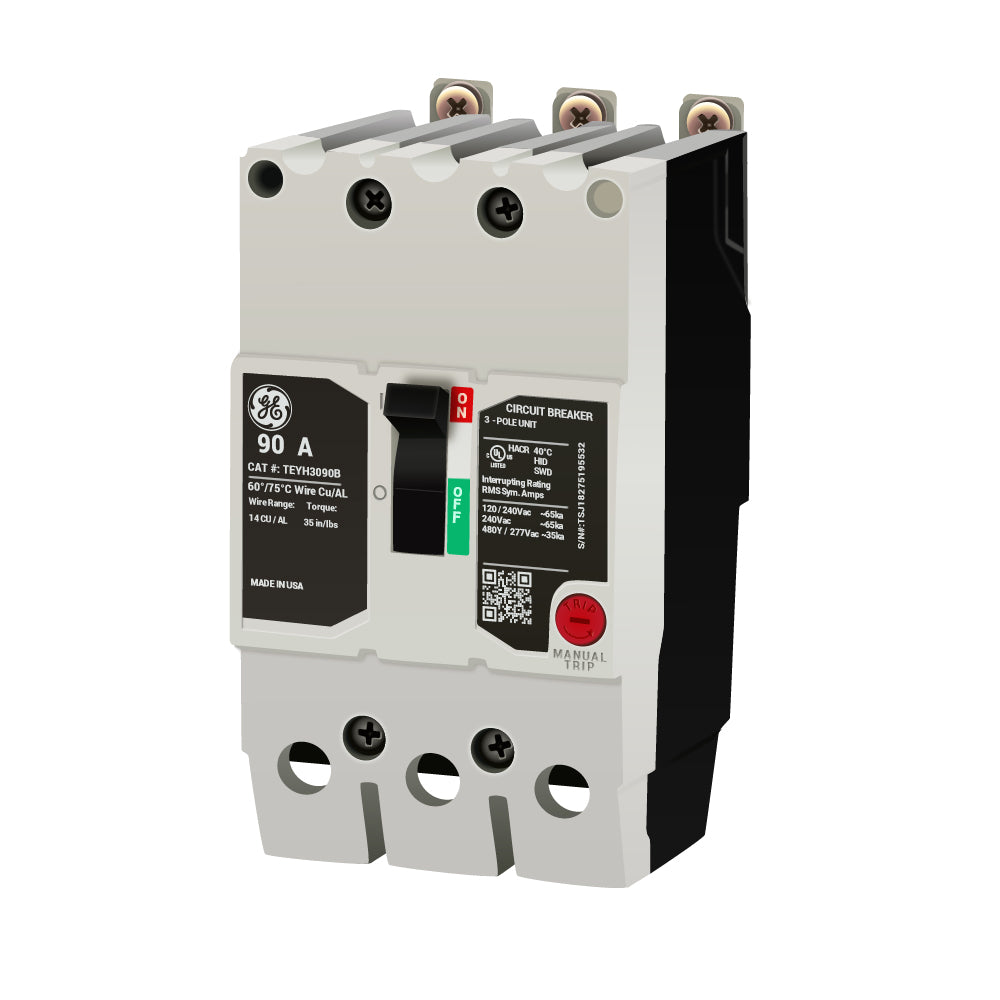

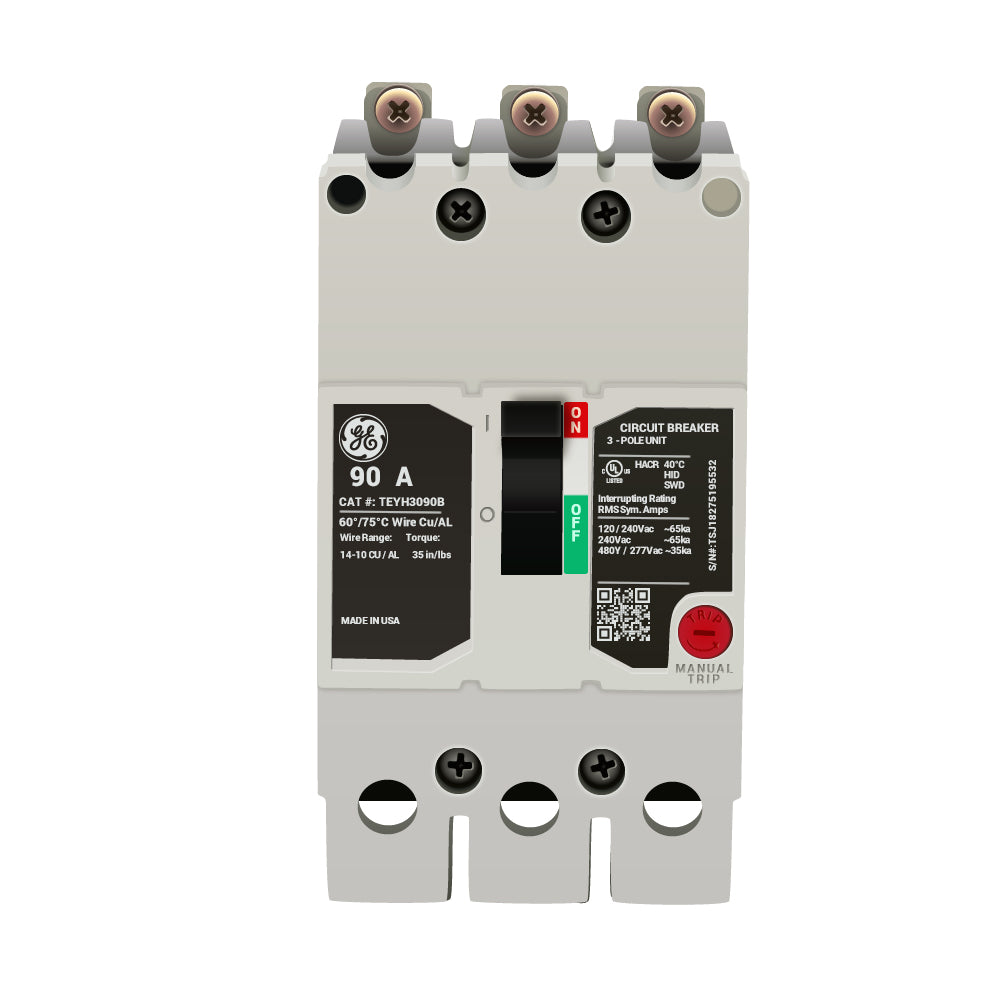

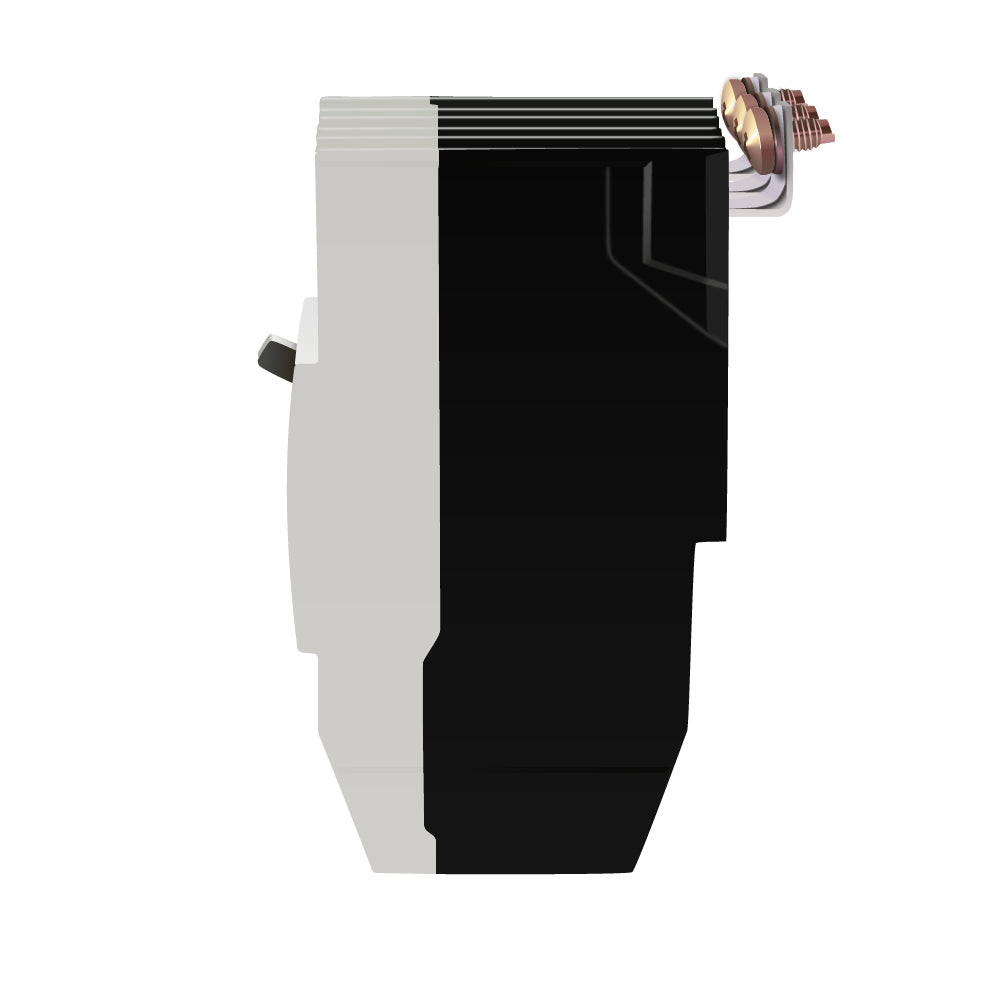

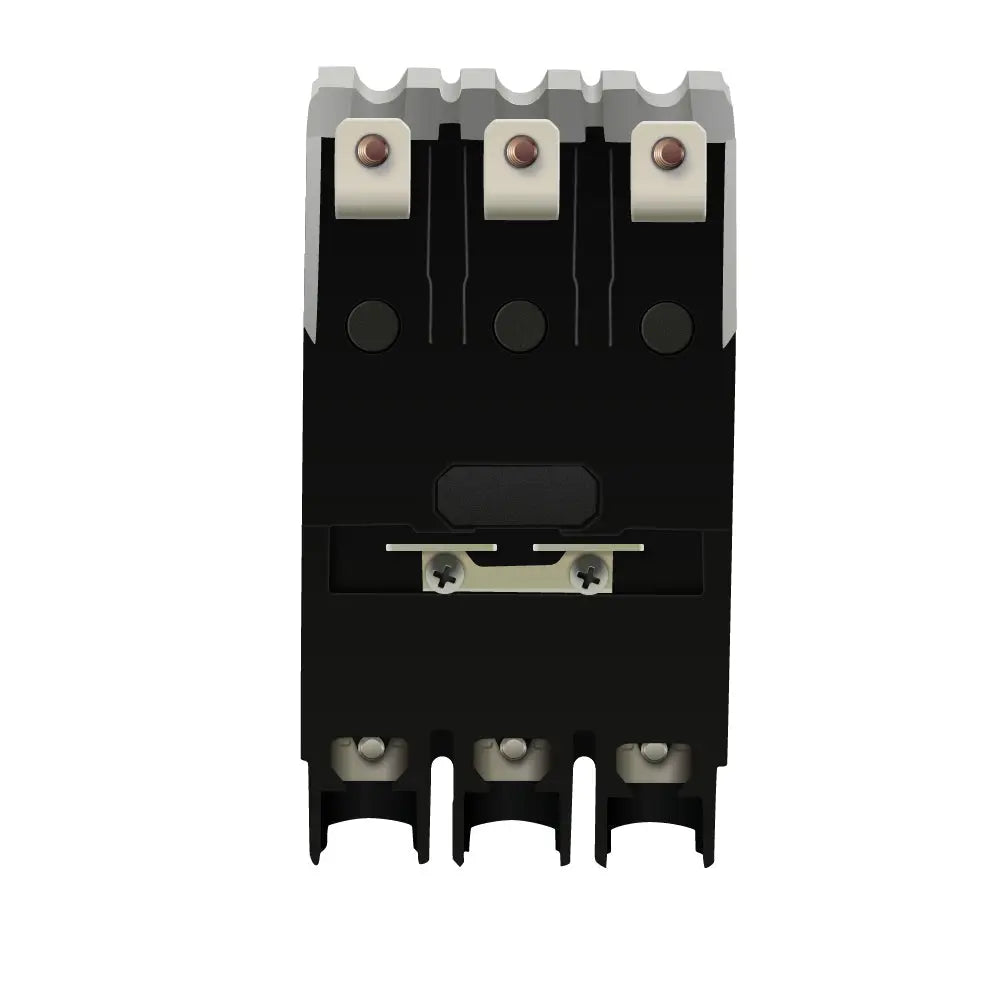

TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip

Save $721.22
SKU: TEYH3090B-New
Condition: New
Price:
$631.78 $1,353.00
Stock:
12 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TEYH3090B - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYH3090B - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply
TEYH3090B - General Electric 90 Amp 3 Pole 480V Molded Case Circuit Breaker, Bolt-On, TEYH Series, Thermal Magnetic Trip - Essential Electric Supply

Description

TEYH3090B


TEYH3090B is a General Electric molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.

This 3-pole, 90 amp, 480V AC circuit breaker features a compact, bolt-on mounting style and is part of the TEYH series, known for its robust construction and thermal magnetic trip unit. It is suitable for use in grounded 480Y/277V systems and provides a 35 kA interrupting rating for enhanced safety and performance.

    Key Specifications
  • Part Number: TEYH3090B
  • Manufacturer: General Electric
  • Amperage: 90 A
  • Voltage: 277/480 VAC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupt Rating: 35 kA
  • Series/Frame: TEYH
  • Trip Unit: Thermal Magnetic
  • Certifications: Not specified in available data
  • Application: Commercial/Industrial Power Distribution
  • Width: 1 inch per pole (compact design)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYH3090B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYH Series
  • Type : TEYH
  • Voltage : 480
  • Amperage : 90
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 078316446225
  • GTIN : 00783164462227
  • Country of Origin : United States
  • Weight : 2 lb
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
