TEYH3015B - General Electric 15 Amp 277/480VAC 3 Pole Bolt-On Circuit Breaker 35kA Interrupt Rating

TEYH3015B

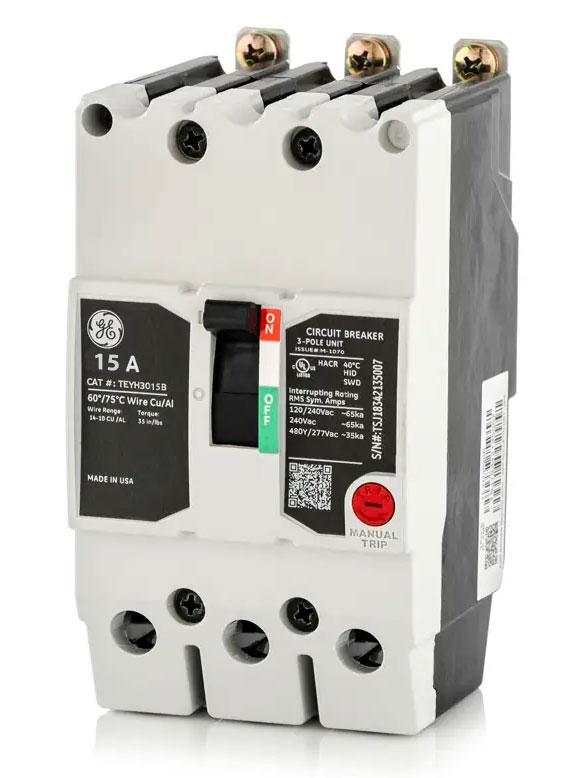

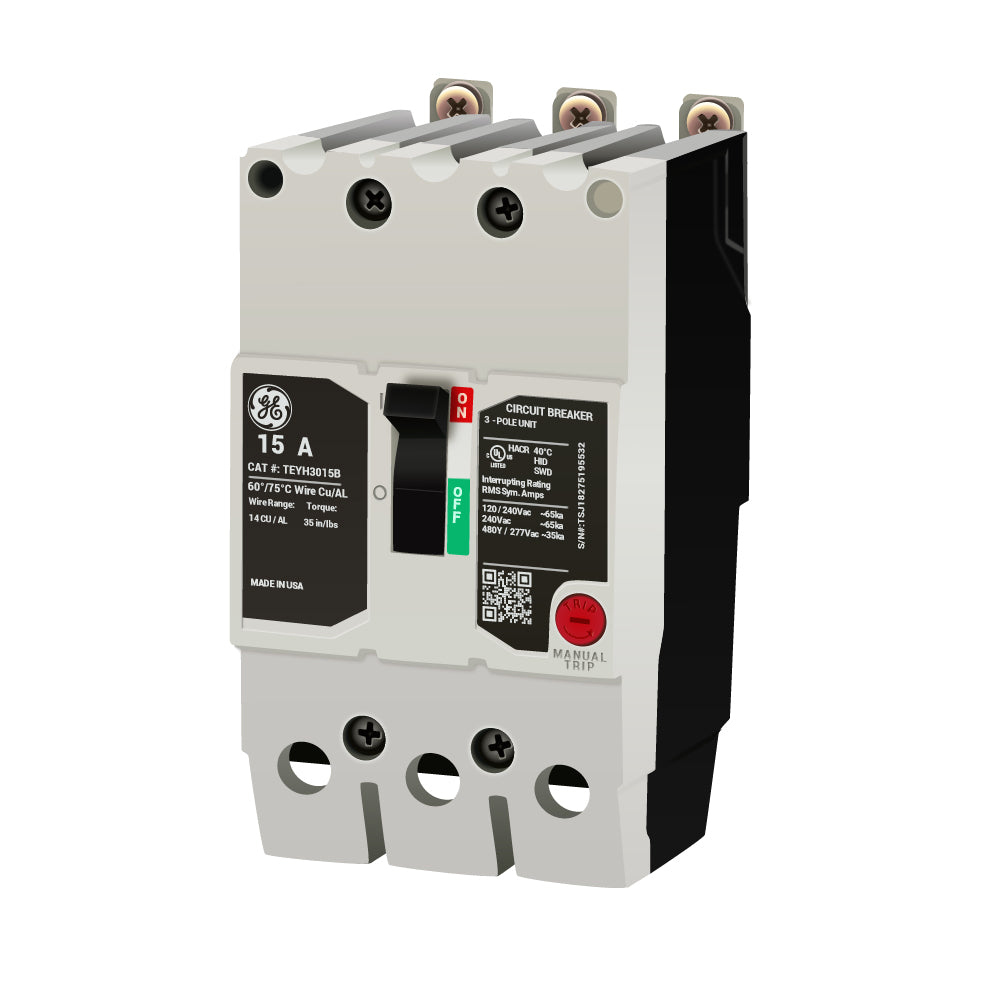

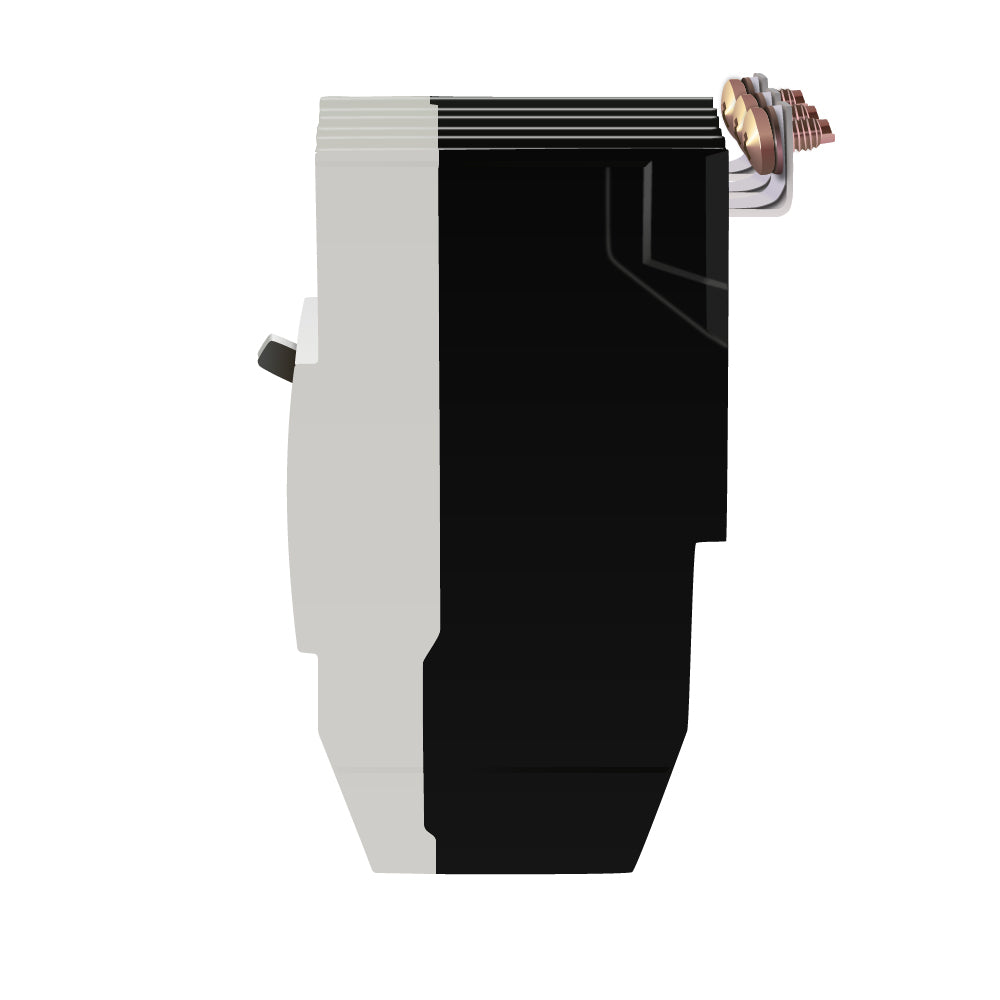

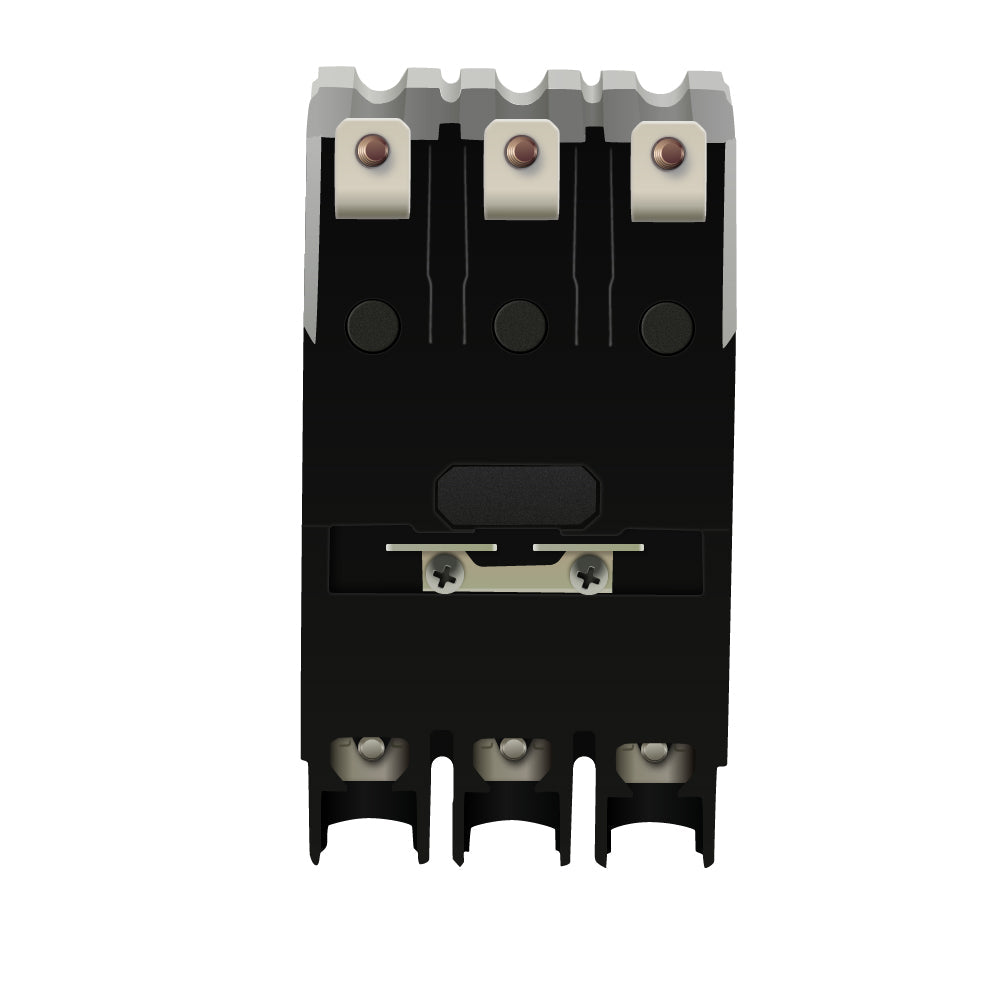

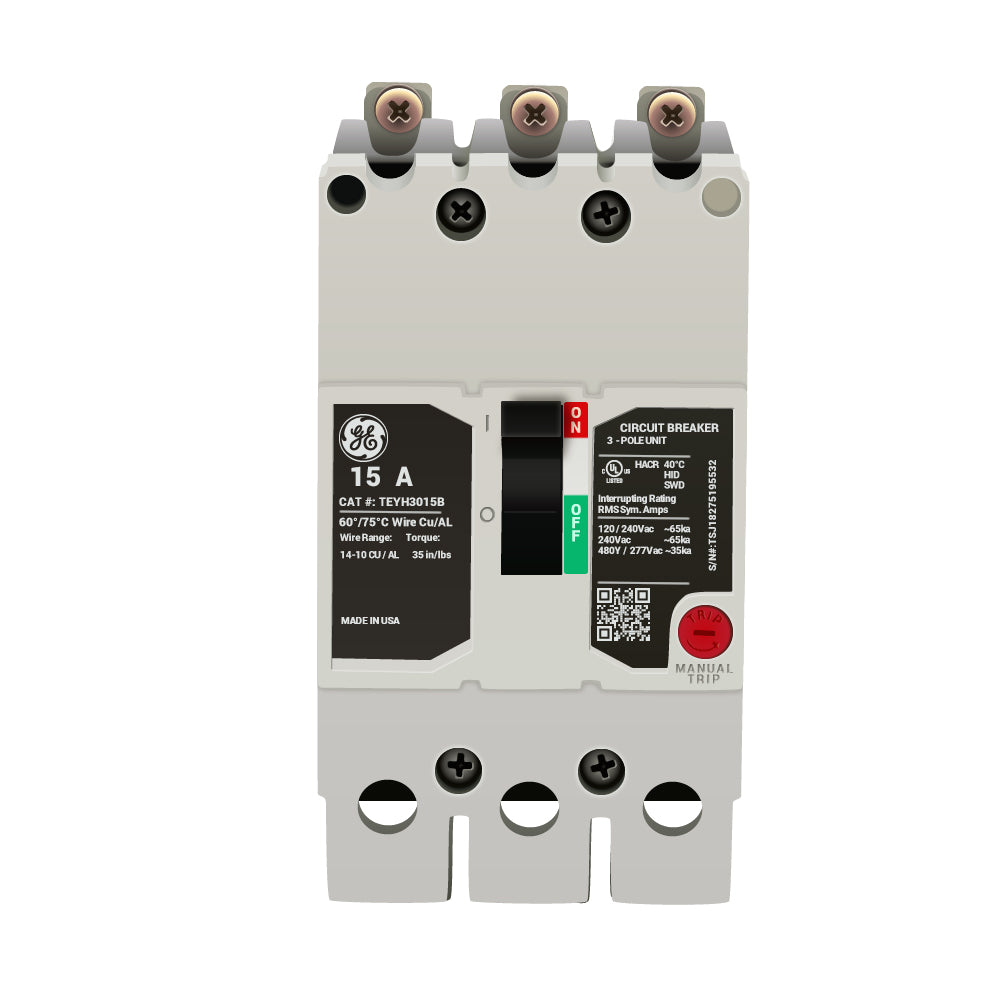

TEYH3015B is a General Electric 3 Pole, 15 Amp, 277/480VAC bolt-on circuit breaker with a 35kA interrupting rating.This thermal magnetic molded case circuit breaker features a compact TEY frame, long-time and instantaneous trip functions (LI), and is UL and CSA certified. It supports wire sizes from 14 AWG to 10 AWG and is designed for use in grounded 480Y/277 VAC systems, commonly installed in lighting panelboards including GE A-Series. The breaker has a toggle actuator and load side lug terminal connection.

Key Specifications
• Amperage: 15 Amps
• Voltage Rating: 277/480 VAC, 250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA at 277/480 VAC
• Frame Type: TEY
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL Listed, cUL, CSA Certified
• Wire Size Range: 14 AWG to 10 AWG (Copper, Aluminum)
• Terminal Connection: Load Side Lug
• Dimensions: 5.2" H x 3" W x 3" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TEYH3015B
• Manufacturer : General Electric
• Brand : General Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : TEYH Series
• Type : TEYH
• Voltage : 480
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/TEY
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783164462111
• GTIN : 00783164462111
• Country of Origin : United States
• Dimensions : 3 in x 5-1/4 in
• Weight : 2
• Panel Type : GE AS Lighting Panels
• Standards : UL
• Certification : UL
