Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEYH3045B

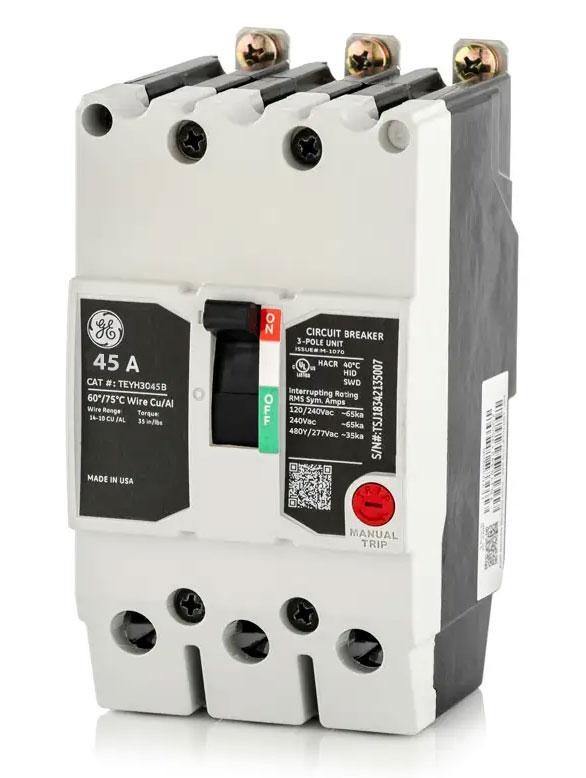

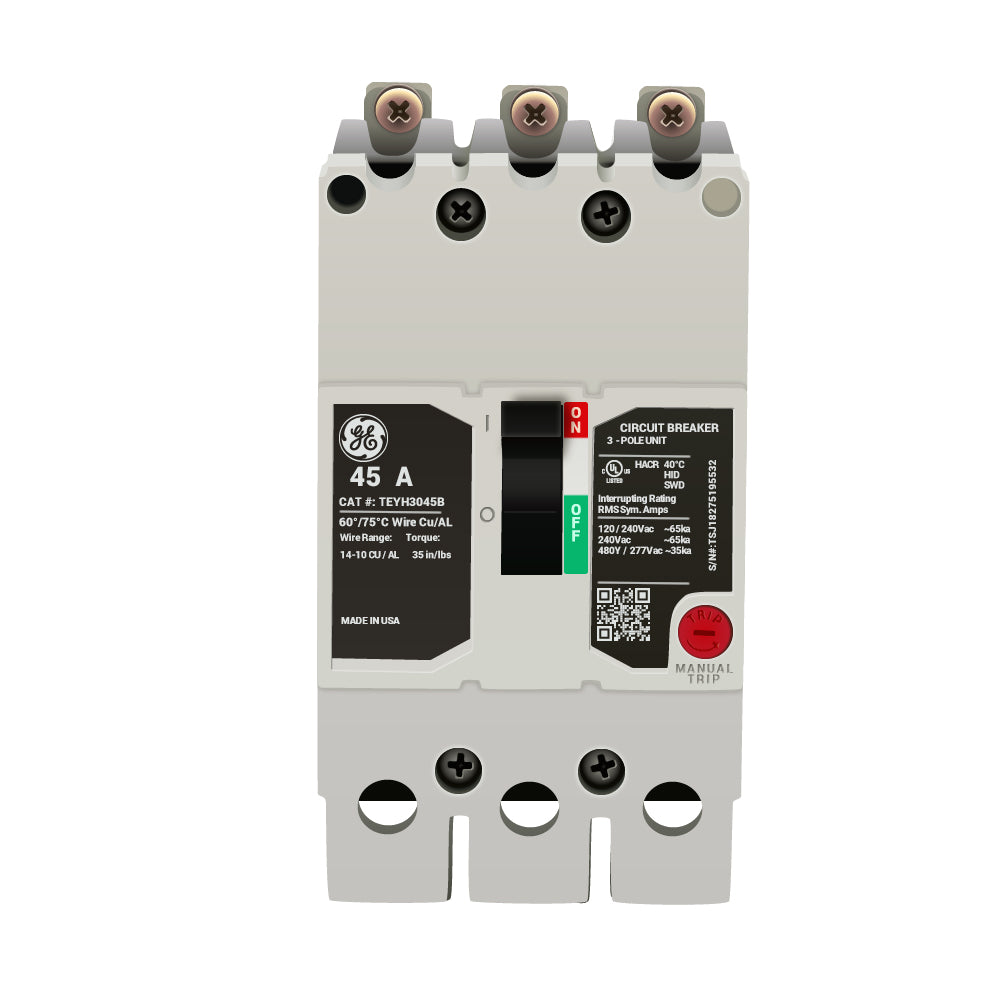

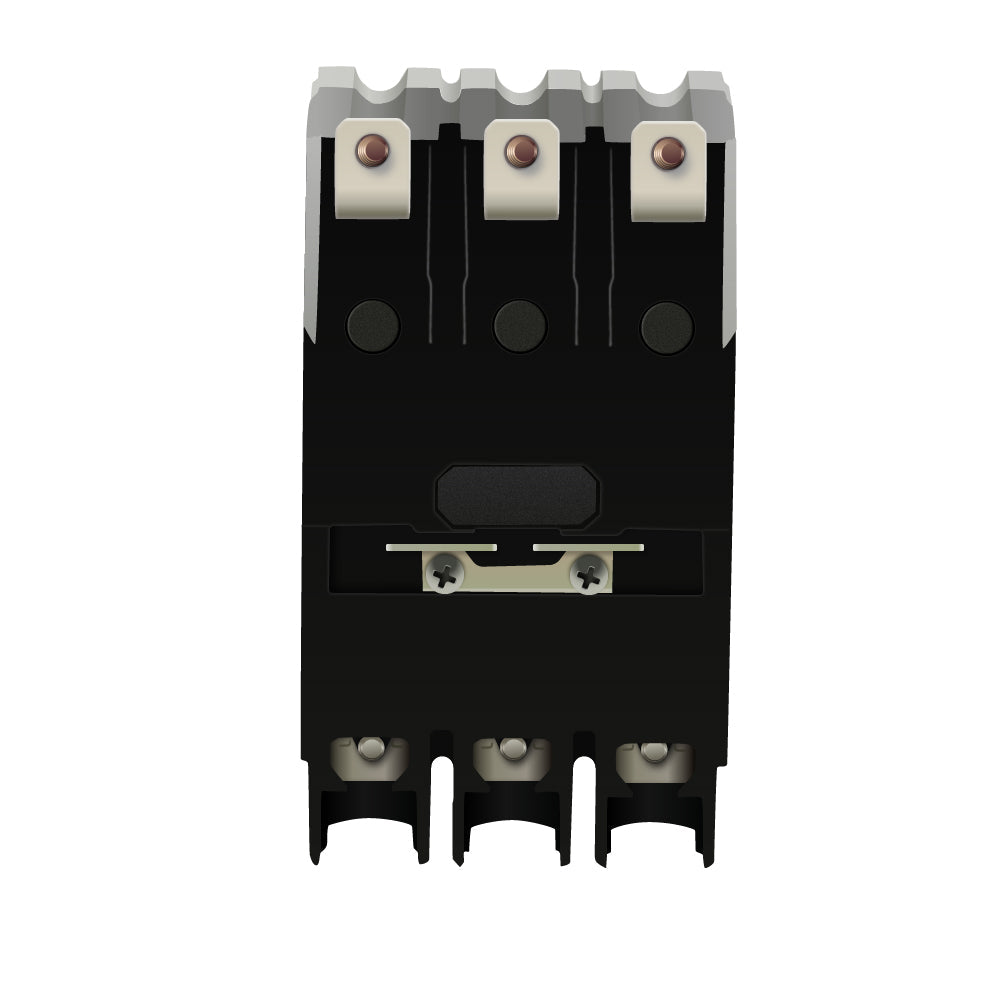

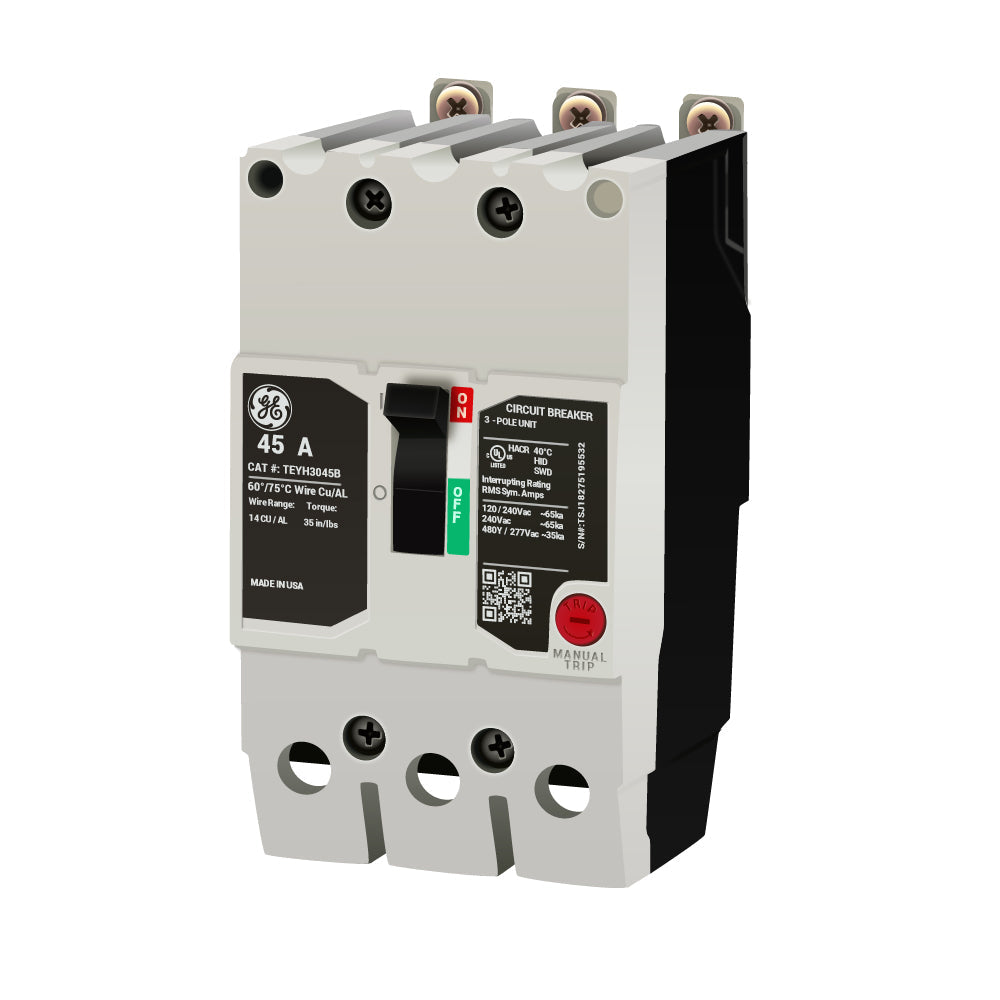

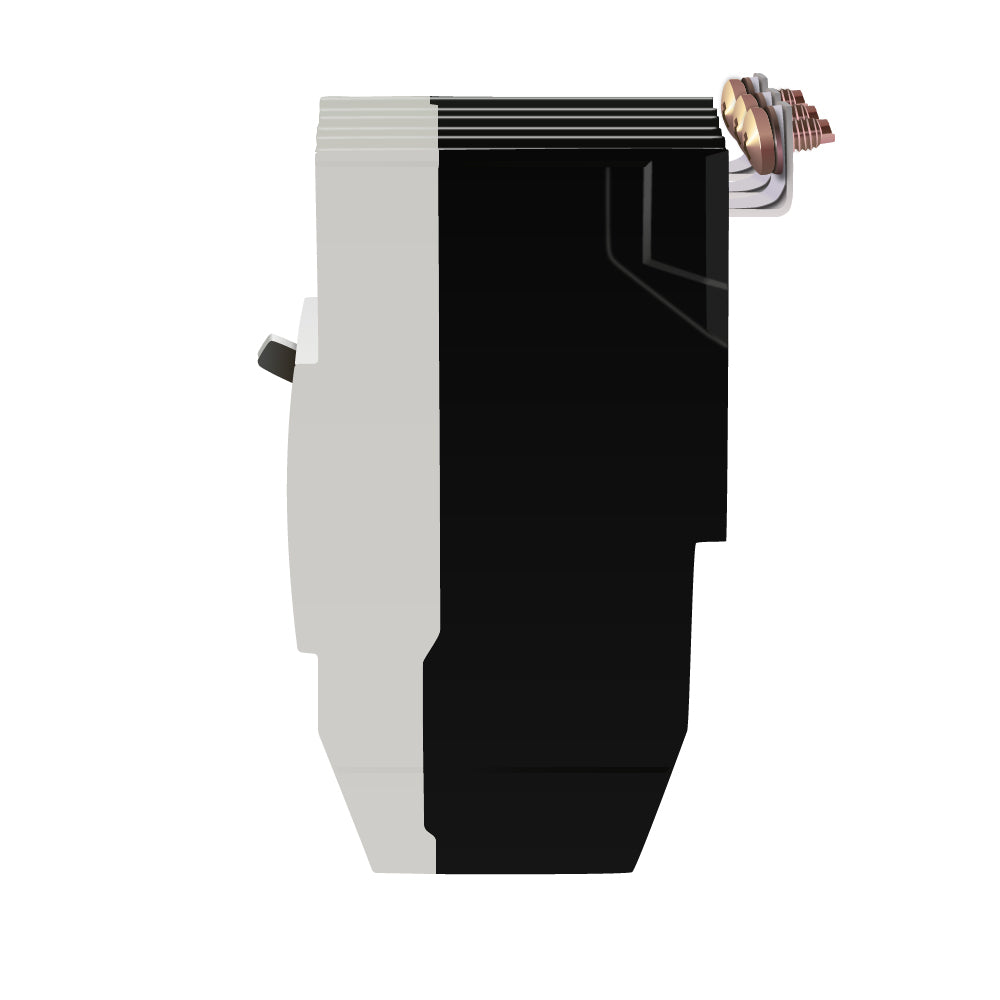

TEYH3045B is a General Electric 3 pole, 45 amp, 277/480 volt bolt-on circuit breaker from the TEY series designed for reliable thermal magnetic protection.This molded case circuit breaker features a 35kA interrupting rating at 277/480VAC, thermal magnetic trip unit, and bolt-on panelboard mounting. It supports 3-phase ABC connection with lug terminal connections and is rated for a frame size of 125A TEY. The breaker is suitable for residential, commercial, and industrial applications requiring overload and short-circuit protection.
- Amperage: 45 Amps
- Voltage Rating: 277/480 VAC
- Number of Poles: 3
- Mounting Type: Bolt-On Panelboard
- Interrupt Rating: 35kA at 277/480V AC
- Frame Size: 125A TEY Series
- Trip Unit: Thermal Magnetic
- Terminal Connection: Lug
- Phase: 3 (ABC)
- Width: 3 inches
- Height: 5.2 inches
- Depth: 3 inches
Specifications
- Part Number: TEYH3045B
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TEYH Series
- Type : TEYH
- Voltage : 480
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 078316446225
- GTIN : 00783164462173
- Country of Origin : United States
- Weight : 2
- Panel Type : GE AS Lighting Panels
- Standards : UL
