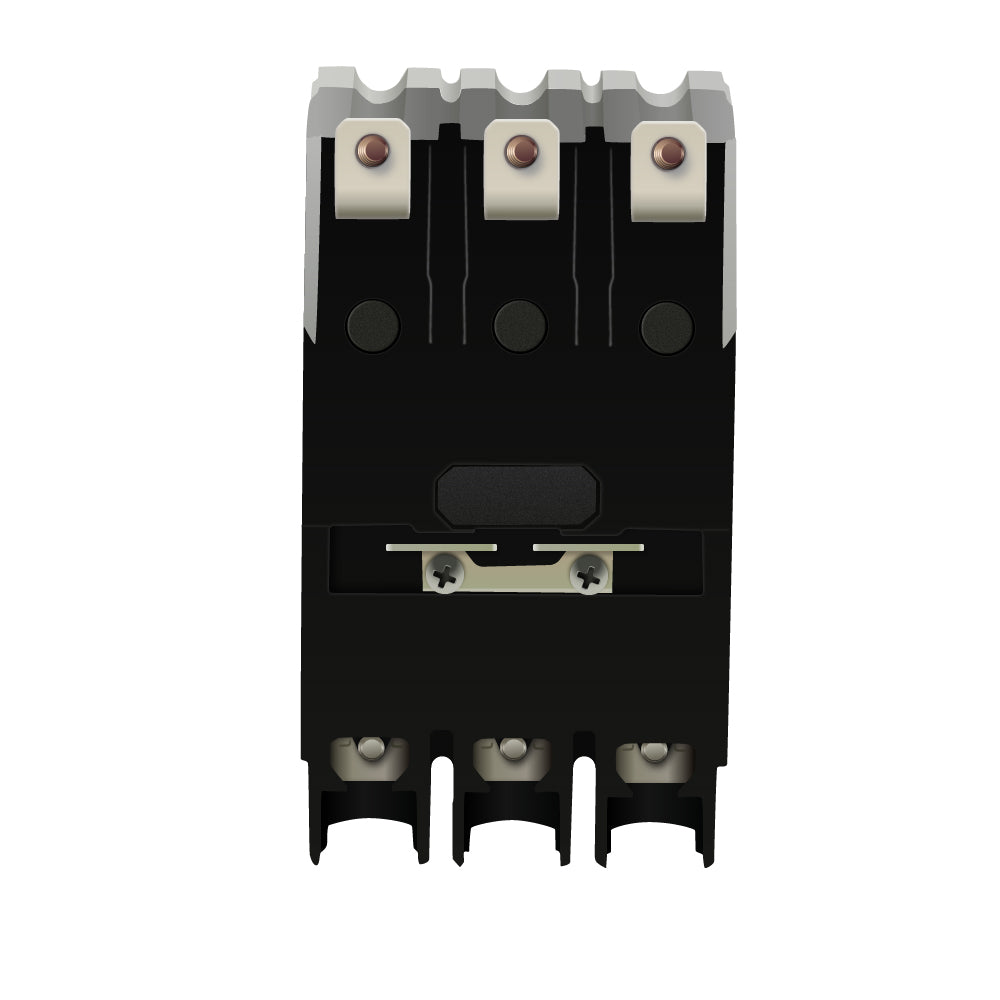

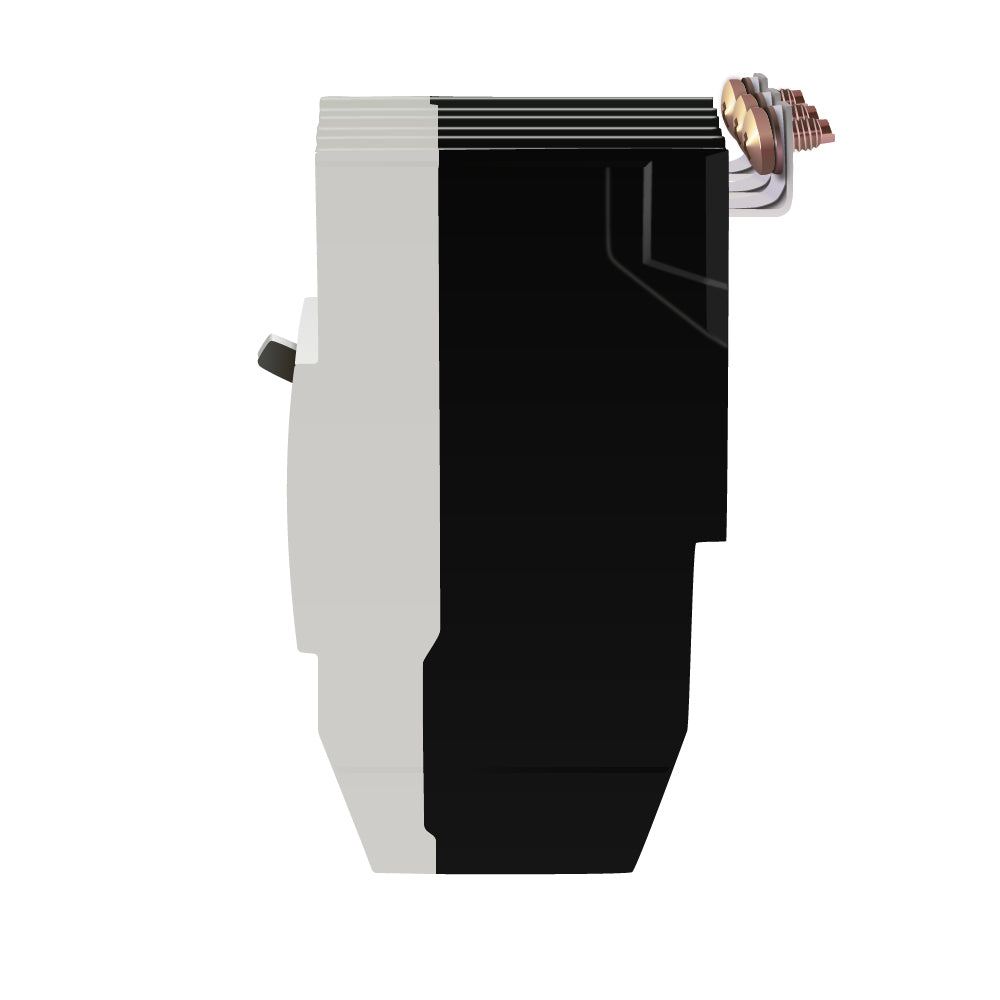

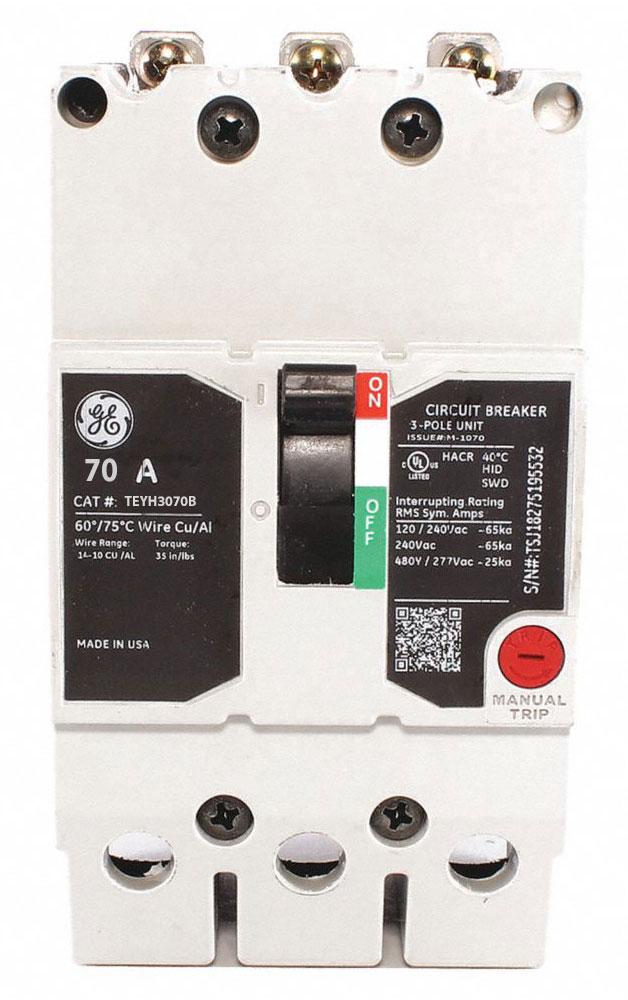

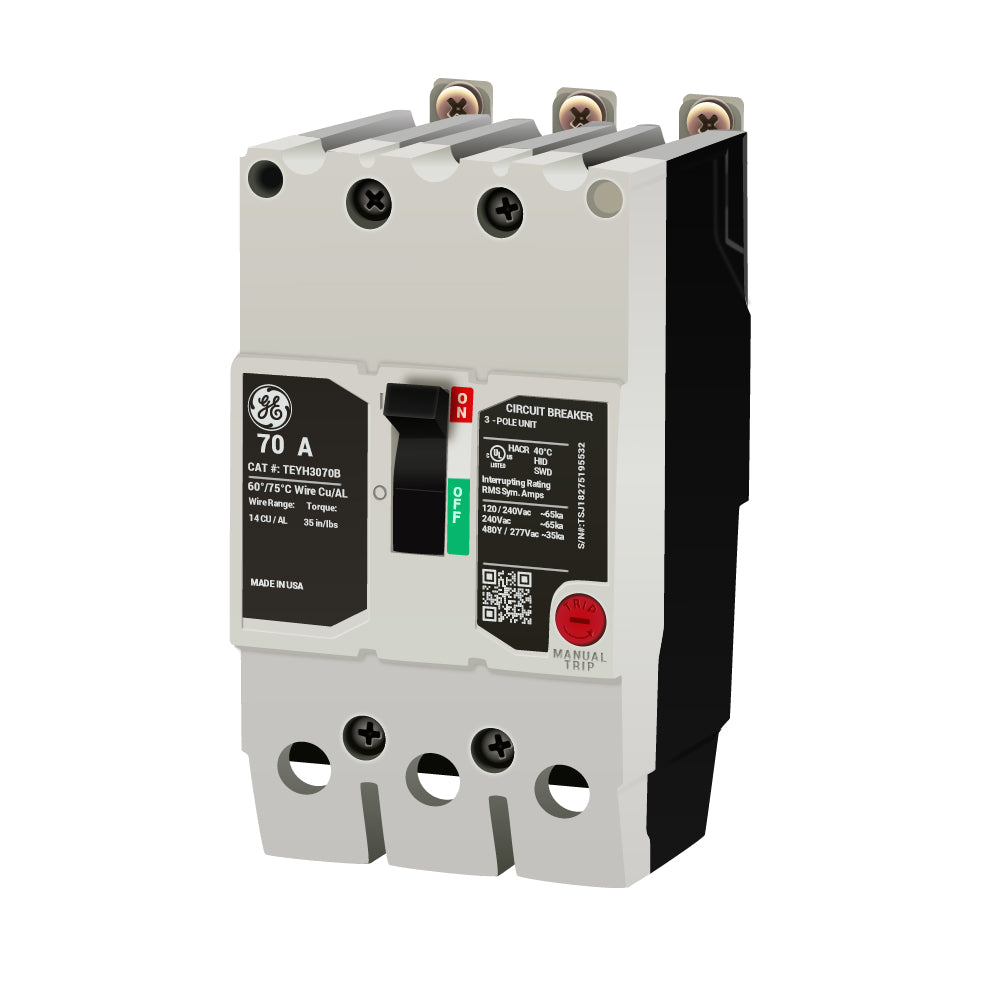

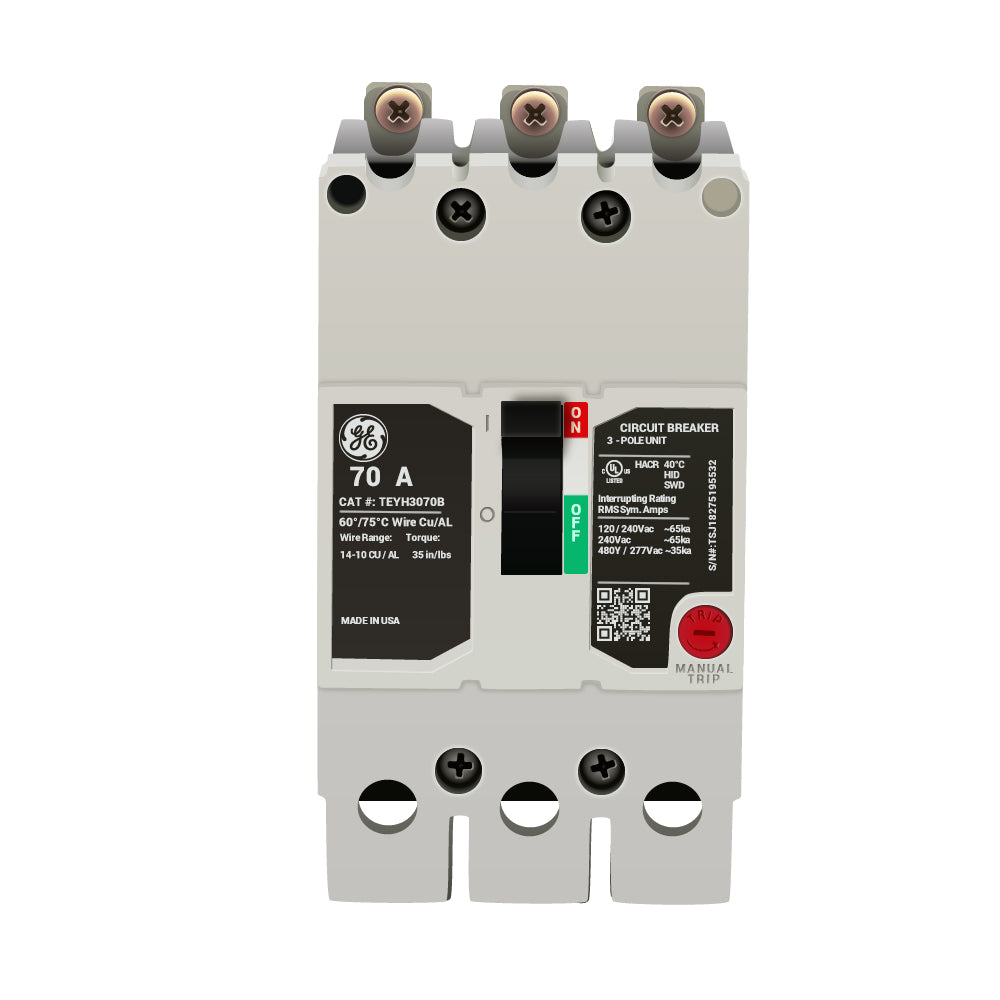

TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame

Save $721.21
SKU: TEYH3070B-New
Condition: New
Price:
$631.79 $1,353.00
Stock:
6 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TEYH3070B - General Electric Bolt-On 70 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYH3070B - General Electric Bolt-On 70 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply
TEYH3070B - General Electric 70 Amp 3 Pole 277/480VAC Bolt-On Circuit Breaker 35kA Interrupt Rating TEY Frame - Essential Electric Supply

Description

TEYH3070B


TEYH3070B is a General Electric 3 pole, 70 amp thermal magnetic molded case circuit breaker designed for 277/480VAC systems with bolt-on mounting.This compact TEY frame breaker features a 35kA interrupt rating at 480VAC, long-time and instantaneous trip functions, and load side lug terminals. It is suitable for grounded 480Y/277 VAC applications and provides reliable circuit protection with a bolt-on mounting base.
  • Amperage: 70 Amps
  • Voltage: 277/480 VAC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupt Rating: 35kA @ 480V
  • Frame/Series: TEY
  • Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
  • Connection: Load Side Lug Terminals
  • Compact 1-inch wide per pole design
  • Non-interchangeable trip
  • Suitable for grounded 480Y/277 VAC systems
  • UL and other industry certifications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYH3070B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYH Series
  • Type : TEYH
  • Voltage : 480
  • Amperage : 70
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 078316446225
  • GTIN : 00783164462203
  • Country of Origin : United States
  • Weight : 2 lb
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
