Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEYH1045B

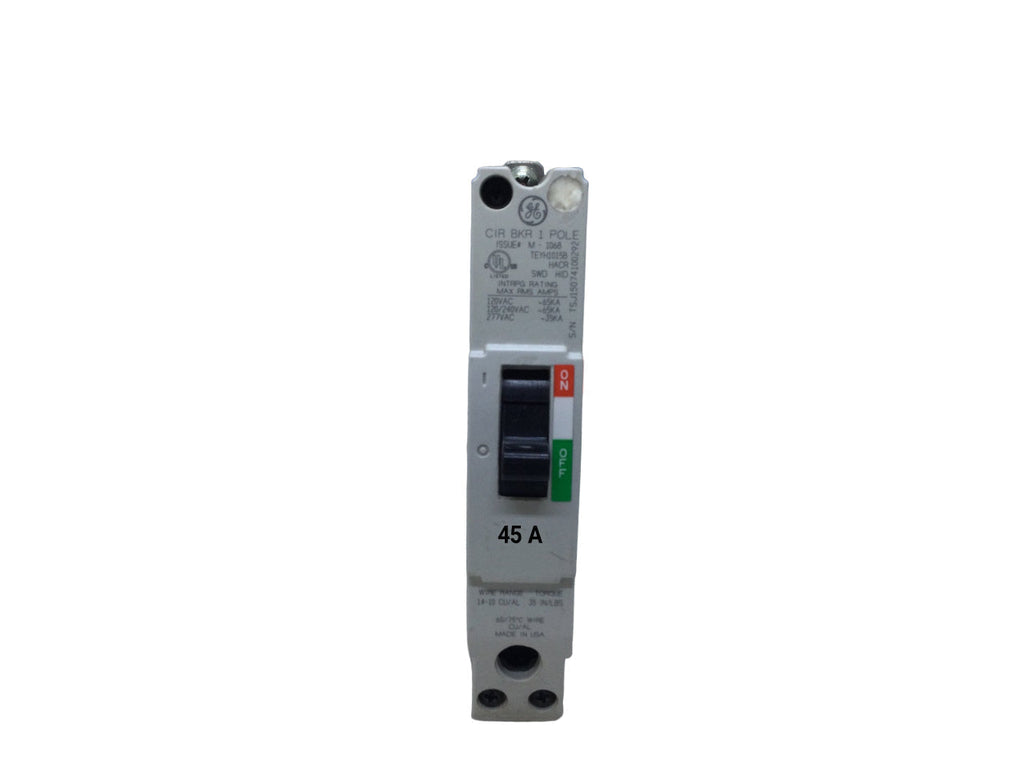

TEYH1045B is a General Electric molded case circuit breaker designed for single-pole applications in industrial and commercial power distribution systems. This TEYH-frame breaker delivers reliable overcurrent protection with a fixed thermal-magnetic trip unit, making it suitable for branch circuit protection in panelboard installations. The bolt-on connection type allows for straightforward integration into compatible GE panelboards and distribution equipment. Key Specifications
- Amperage Rating: 45 Amps
- Voltage Rating: 480V AC
- Number of Poles: 1
- Connection Type: Bolt-On
- Interrupt Rating: 35 kA at 277V AC
- Trip Unit: Fixed Thermal-Magnetic
- Series: TEYH
- UL Listed: UL489
- CSA Listed: LR 57114
Specifications
- Part Number: TEYH1045B
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TEYH Series
- Type : TEYH
- Voltage : 480
- Amperage : 45
- Phase : 1
- Poles : 1
- AIC rating : 35kA@480V
- Connection : Bolt-on Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 078316446192
- GTIN : 00783164461923
- Country of Origin : United States
- Dimensions : 1 in x 5-1/4 in
- Weight : 1
- Panel Type : GE AS Lighting Panels
- Standards : UL
- Certification : UL
