TEYH1025B - General Electric 25A 1-Pole 277/480V AC Molded Case Circuit Breaker TEYH Series Bolt-On 35kA Interrupt Rating

Save $201.59
SKU: TEYH1025B-New
Condition: New
Price:
$186.41 $388.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TEYH1025B - General Electric Bolt-on Panelboard 480V 25A 1 pole circuit breaker 35kA@480V - Essential Electric Supply

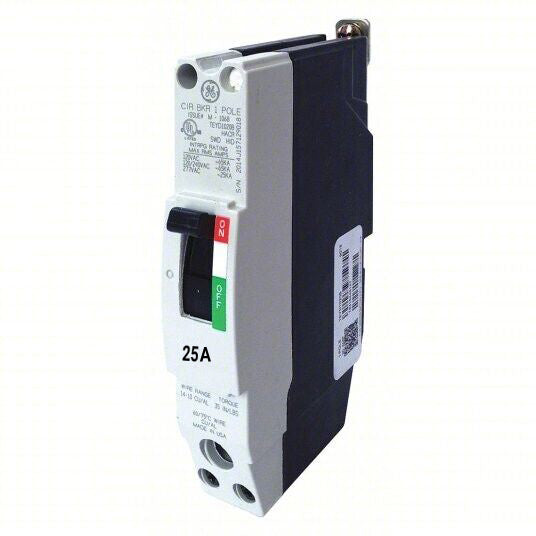

TEYH1025B - General Electric 25A 1-Pole 277/480V AC Molded Case Circuit Breaker TEYH Series Bolt-On 35kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYH1025B - General Electric Bolt-on Panelboard 480V 25A 1 pole circuit breaker 35kA@480V - Essential Electric Supply
TEYH1025B - General Electric 25A 1-Pole 277/480V AC Molded Case Circuit Breaker TEYH Series Bolt-On 35kA Interrupt Rating - Essential Electric Supply

Description

TEYH1025B


TEYH1025B is a General Electric 25 Amp, 1-pole molded case circuit breaker designed for 277/480V AC applications with a 35kA interrupt rating.This TEYH Series circuit breaker features a thermal magnetic trip unit with fixed instantaneous trip, bolt-on mounting style for panelboards, and lug-type terminal connections. It supports single-phase systems and is UL certified for safety and reliability. The compact design fits a 125A frame size with dimensions approximately 5.2 inches height, 1 inch width, and 3 inches depth.
  • Amperage: 25A
  • Voltage Rating: 277/480V AC
  • Number of Poles: 1
  • Interrupt Rating: 35kA at 277/480V AC
  • Series/Frame: TEYH / 125A Frame
  • Trip Unit: Thermal Magnetic, Fixed Instantaneous
  • Mounting Type: Bolt-On Panelboard
  • Terminal Connection: Lug
  • Phase: Single (1)
  • Standards: UL Certified
  • Max Wire Size: 4 AWG
  • Min Wire Size: 10 AWG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYH1025B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYH Series
  • Type : TEYH
  • Voltage : 480
  • Amperage : 25
  • Phase : 1
  • Poles : 1
  • AIC rating : 35kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164461886
  • GTIN : 00783164461886
  • Country of Origin : United States
  • Weight : 1
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
  • Certification : UL
