TEYH1020B - General Electric 20A 1-Pole 480/277V Bolt-On Circuit Breaker 35kA Interrupt Rating

Save $250.82
SKU: TEYH1020B-New
Condition: New
Price:
$137.18 $388.00
Stock:
100+ in stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

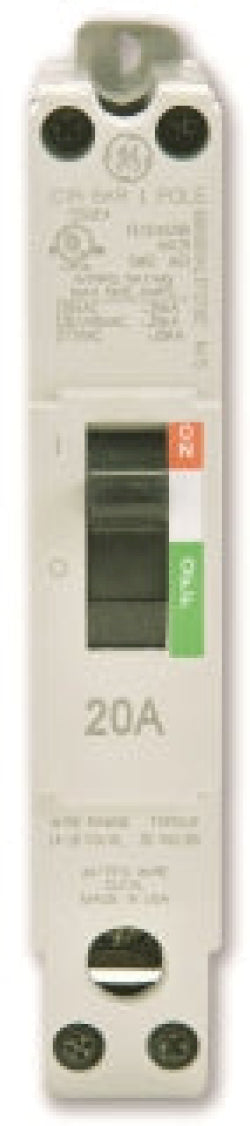

TEYH1020B - General Electric Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
TEYH1020B - General Electric 20A 1-Pole 480/277V Bolt-On Circuit Breaker 35kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYH1020B - General Electric Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
TEYH1020B - General Electric 20A 1-Pole 480/277V Bolt-On Circuit Breaker 35kA Interrupt Rating - Essential Electric Supply

Description

TEYH1020B


TEYH1020B is a General Electric 20 amp, 1-pole bolt-on circuit breaker designed for 480/277 Vac systems with a 35kA interrupting rating at 277 Vac.This TEYH1020B breaker features a compact bolt-on frame type, suitable for lighting panel applications. It supports a 20 amp continuous current rating, has a fixed long time and instantaneous trip function, and is UL listed under file E11592. The breaker accommodates wire sizes from #14 to #10 AWG copper or aluminum and is suitable for reverse feed.
    Key Specifications
    • Amperage: 20 A
    • Poles: 1
    • Voltage Rating: 480/277 Vac
    • Interrupting Rating: 35kA at 277 Vac, 65kA at 120/240 Vac
    • Mounting Type: Bolt-On
    • Frame Type: TEYH
    • Trip Style: Fixed Long Time and Instantaneous
    • Wire Range: #14-#10 AWG Cu/Al
    • UL Listed: File E11592
    • Suitable for Reverse Feed: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYH1020B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYH Series
  • Type : TEYH
  • Voltage : 480
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 35kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164461879
  • GTIN : 00783164461879
  • Country of Origin : United States
  • Dimensions : 1 in x 5-1/4 in
  • Weight : 1
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
  • Certification : UL
