Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEYH1015B

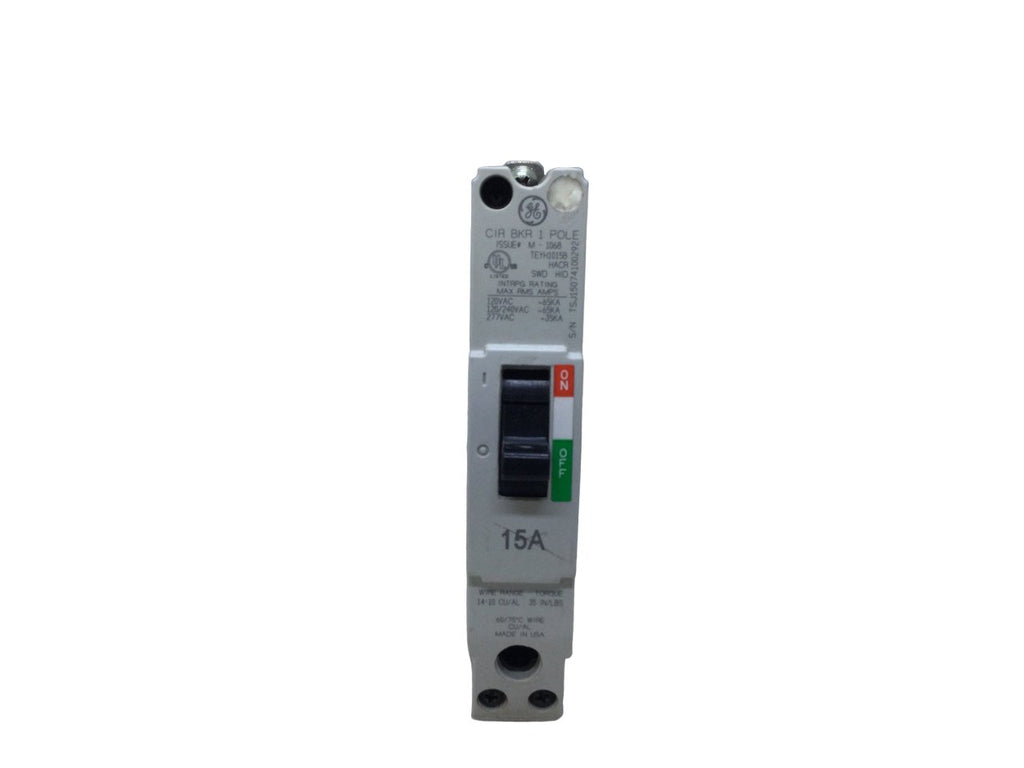

TEYH1015B is a 1-pole, 15A molded case circuit breaker designed for use in 277V electrical systems. This General Electric TEYH1015B breaker is part of the TEYH Series and features a bolt-on mounting design for secure installation in compatible panelboards.Engineered for reliable protection in commercial and industrial applications, the TEYH1015B offers a high interrupting capacity and is suitable for grounded 480Y/277 Vac systems. The toggle actuator provides clear visual indication of the breaker's status, and the compact one-inch per pole width maximizes panel space efficiency.
- Part Number: TEYH1015B
- Manufacturer: General Electric
- Series/Frame: TEYH
- Poles: 1
- Amperage: 15A
- Voltage Rating: 277V AC
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA @ 480V
- Actuator Type: Toggle
- Width: 1 inch per pole
- Compatible Systems: Grounded 480Y/277 Vac
Specifications
- Part Number: TEYH1015B
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TEYH Series
- Type : TEYH
- Voltage : 480
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 35kA@480V
- Connection : Bolt-on Panelboard
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783164461862
- GTIN : 00783164461862
- Country of Origin : United States
- Dimensions : 1 in x 5-1/4 in
- Weight : 1
- Panel Type : GE AS Lighting Panels
- Standards : UL
- Certification : UL
