Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEY220ST12

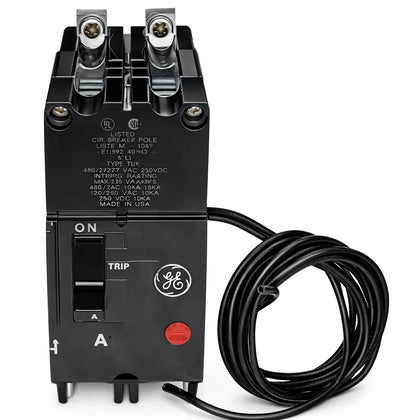

TEY220ST12 is a General Electric 20 Amp, 2 Pole molded case circuit breaker from the TEY series designed for bolt-on mounting in 480V applications.This compact breaker features thermal magnetic protection with long-time and instantaneous trip functions, a 14kA interrupt rating at 480V, and is suitable for grounded 480Y/277 VAC systems. It complies with standard E11592 and is rated for HACR and HID load types.
- Amperage: 20 Amp
- Voltage Rating: 480V (480Y/277 VAC)
- Number of Poles: 2 Pole
- Interrupt Rating: 14kA at 480V
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
- Mounting Type: Bolt-On
- Series/Frame: TEY
- Certifications: Standard E11592, HACR, HID
- Phase: Single Phase
- Compact 1-inch wide per pole design
Specifications
- Part Number: TEY220ST12
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TEY
- Voltage : 480
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164196528
- GTIN : 00783164000000
- Weight : 1
