TEY220 - General Electric 20 Amp 2 Pole 277/480VAC Bolt-On Circuit Breaker Thermal Magnetic

Save $228.15
SKU: TEY220-New
Condition: New
Price:
$160.85 $389.00
Stock:
100+ in stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

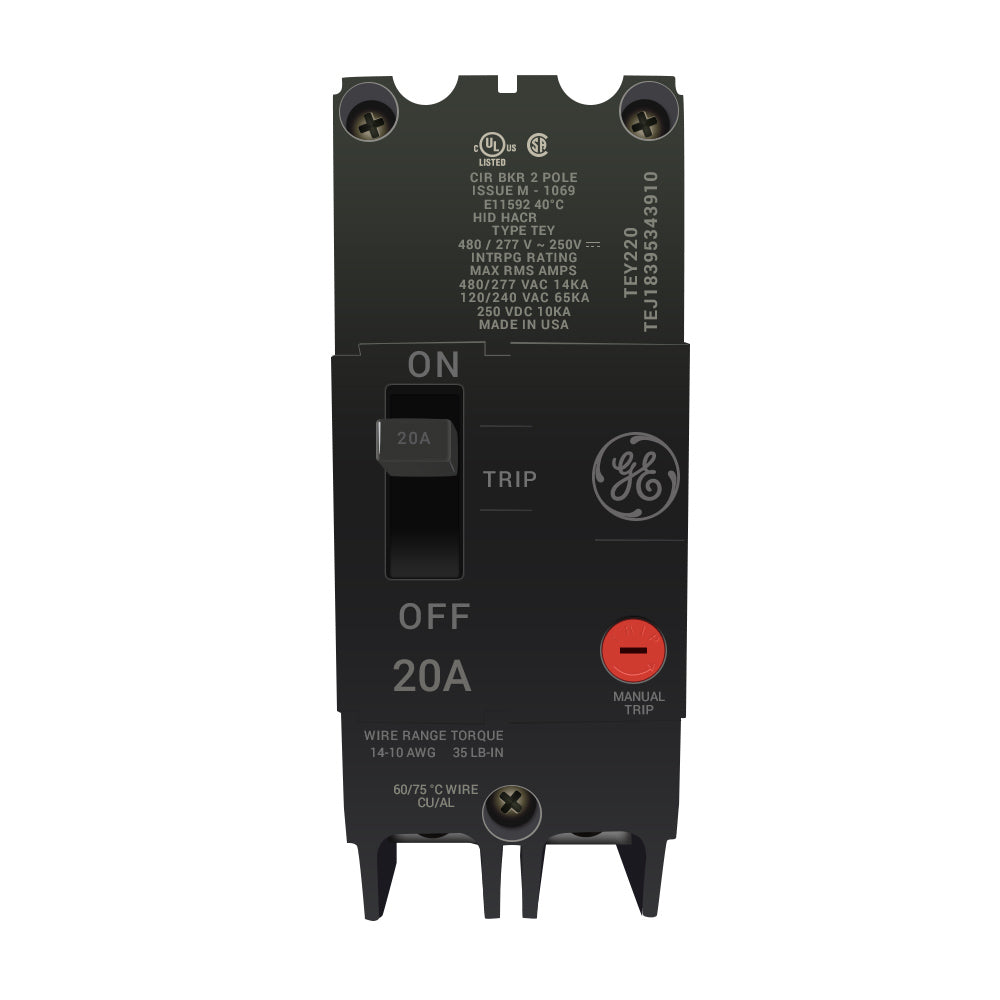

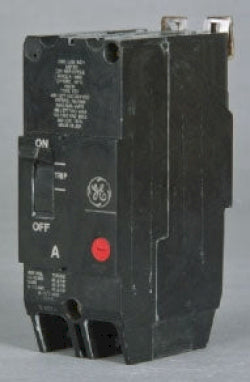

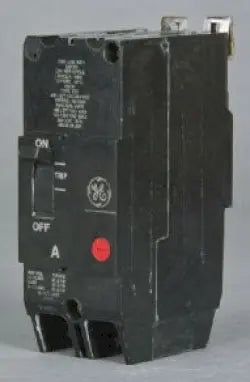

TEY220 - General Electric Bolt-On 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TEY220 - General Electric Bolt-On 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TEY220 - General Electric Bolt-On 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TEY220 - General Electric 20 Amp 2 Pole 277/480VAC Bolt-On Circuit Breaker Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEY220 - General Electric Bolt-On 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TEY220 - General Electric Bolt-On 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TEY220 - General Electric Bolt-On 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TEY220 - General Electric 20 Amp 2 Pole 277/480VAC Bolt-On Circuit Breaker Thermal Magnetic - Essential Electric Supply

Description

TEY220


TEY220 is a General Electric 2 Pole, 20 Amp thermal magnetic molded case circuit breaker designed for bolt-on mounting.This compact TEY series breaker supports voltages of 277/480VAC and 250VDC with a 14kA interrupting rating at 277/480VAC. It features a thermal magnetic trip unit with LI (long-time and instantaneous) trip functions, lug-type terminal connections, and is UL and CSA certified. The breaker is suitable for lighting panel applications and has a 1-phase configuration.
    Key Specifications
    • Amperage: 20 A
    • Voltage: 277/480VAC, 250VDC
    • Poles: 2
    • Mounting Type: Bolt-On
    • Interrupting Rating: 14kAIC at 277/480VAC
    • Series/Frame: TEY
    • Trip Unit: Thermal Magnetic with LI functions
    • Certifications: UL, CSA
    • Terminal Connection: Lug
    • Phase: 1
    • Max Wire Size: 10 AWG
    • Min Wire Size: 14 AWG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEY220
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Q-Line
  • Type : TEY
  • Voltage : 480
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 14kA@480V
  • Connection : Bolt-on
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Any

Product Data

  • UPC : 783164180954
  • GTIN : 00783164180954
  • Country of Origin : United States
  • Dimensions : 2 in x 5.25" x 5-1/4 in
  • Weight : 1 lb
  • Panel Type : GE AE Lighting Panels
  • Standards : CSA, UL
  • Certification : CSA, UL
