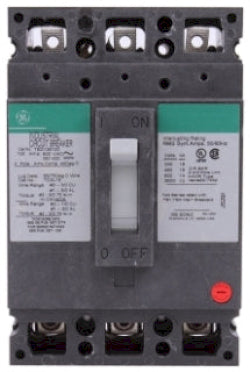

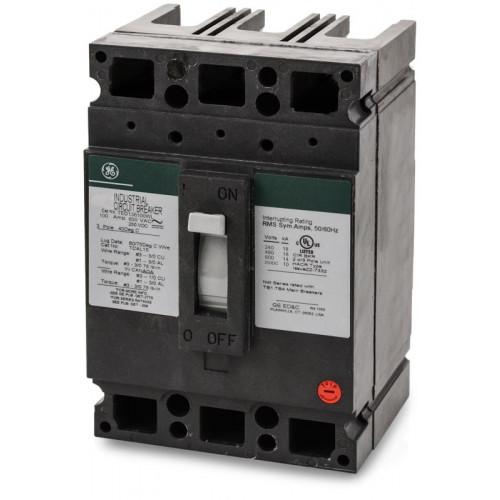

TED136100 - General Electric 100A 600VAC 3-Pole Molded Case Circuit Breaker E150 Frame

Save $480.96
SKU: TED136100-New

Condition: New
Price:
Sale price$623.04 Regular price$1,104.00
Stock:
7 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Description

TED136100


TED136100 is a General Electric 3-pole molded case circuit breaker rated for 100 amps and 600 VAC, designed for panel mounting.TED136100 features thermal magnetic trip units with long-time and instantaneous protection, an E150 frame, and a 14,000 A interrupt rating for AC and DC applications. It supports load lug connections with wire gauges from 3 to 1 AWG and is UL, CSA, and CE certified.
  • Manufacturer: General Electric
  • Part Number: TED136100
  • Amperage: 100 A
  • Voltage Rating: 600 VAC / 500 VDC
  • Poles: 3
  • Frame Type: E150
  • Mounting Type: Panel
  • Interrupt Rating: 14,000 A AC/DC
  • Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
  • Connection Type: Load Lug
  • Wire Gauge: 3 to 1 AWG
  • Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED136100
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164063547
  • GTIN : 00783164063547
  • Weight : 3
  • Certification : UL, CSA, CE
  • Wire Size : 3 to 1 AWG
