TED134015WL - General Electric 15A 480VAC 3-Pole Molded Case Circuit Breaker E150 Frame

Save $373.04
SKU: TED134015WL-New
Condition: New
Price:
$505.96 $879.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

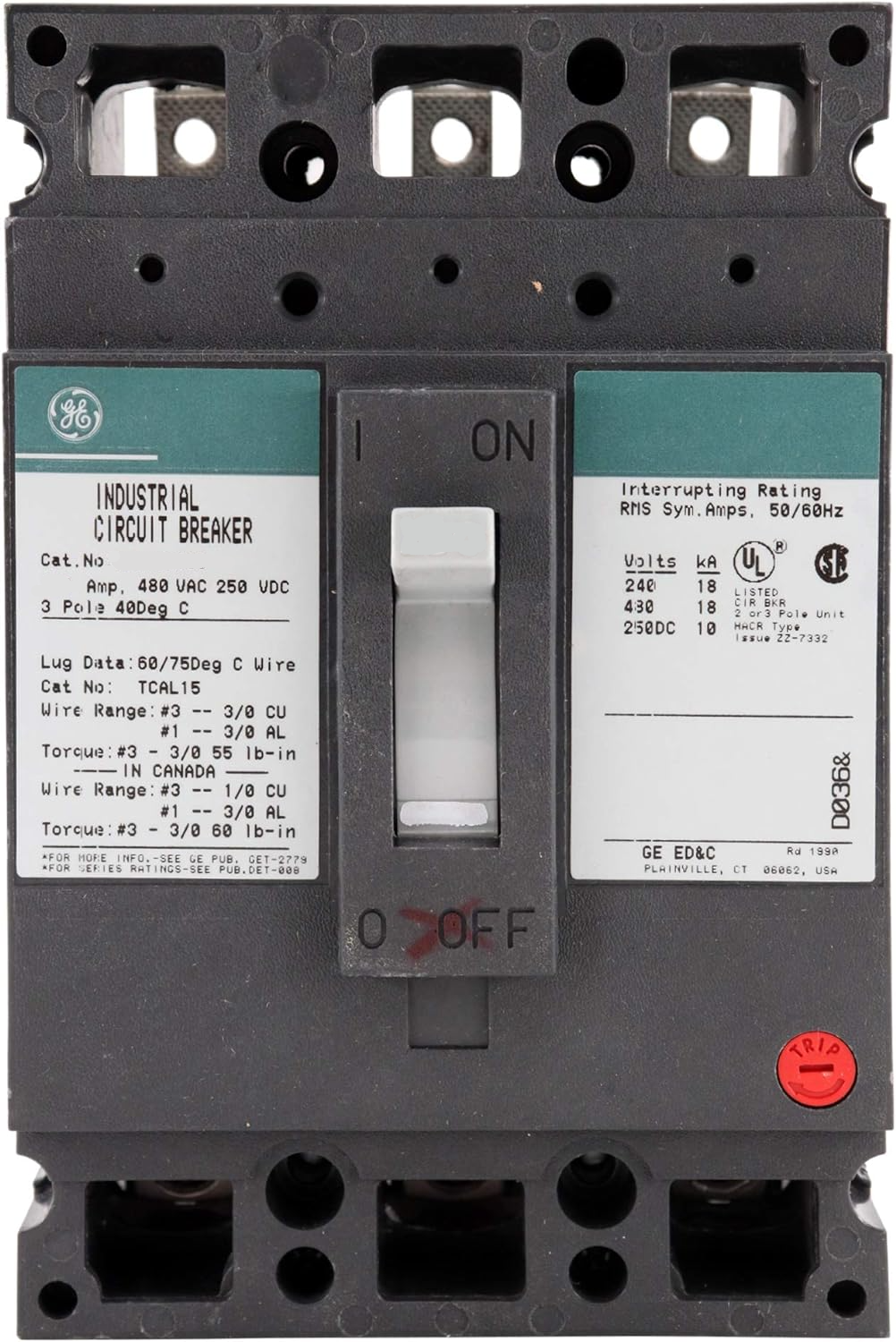

TED134015WL - General Electric Feed-Thru 15 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED134015WL - General Electric 15A 480VAC 3-Pole Molded Case Circuit Breaker E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

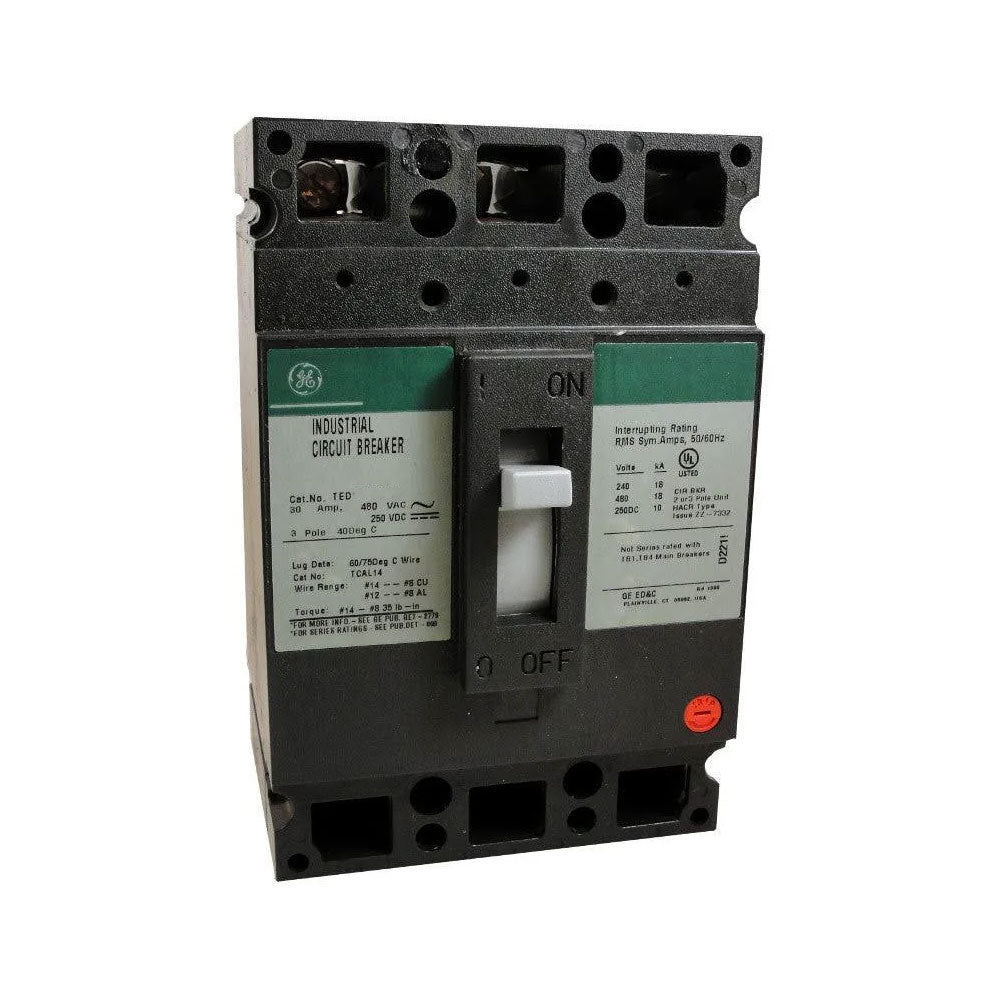

TED134015WL - General Electric Feed-Thru 15 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED134015WL - General Electric 15A 480VAC 3-Pole Molded Case Circuit Breaker E150 Frame - Essential Electric Supply

Description

TED134015WL


TED134015WL is a General Electric 3-pole molded case circuit breaker rated for 15 amps and 480 VAC operation.This thermal magnetic circuit breaker features an E150 frame with a fixed long-time and instantaneous trip unit (LI trip style). It provides an interrupting rating of 18 kA at 120/240/277/480 VAC, 14 kA at 600 VAC, and 10 kA at 125/250/500 VDC. The breaker is suitable for reverse feed applications and includes HACR markings. It uses lug type TC041 for line/load connections and complies with UL and CSA certifications.
    Key Specifications
    • Amperage: 15 A
    • Voltage Rating: 480 VAC (also rated for 120/240/277 VAC and various DC voltages)
    • Poles: 3
    • Frame Type: E150
    • Interrupting Rating: 18 kA at 480 VAC
    • Trip Unit: Thermal Magnetic, Fixed Long-Time and Instantaneous (LI)
    • Mounting Type: Molded Case
    • Suitable for Reverse Feed: Yes
    • Terminal Type: Lug (TC041)
    • Certifications: UL File E11592, CSA File LR57114
    • Special Markings: HACR
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: TED134015WL
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : E150 Line
    • Type : TED
    • Voltage : 480
    • Amperage : 15
    • Phase : 3
    • Poles : 3
    • AIC rating : 18kA@480V
    • Connection : Feed-Thru
    • Functions : LI - Long-Time and Instantaneous
    • Temp Rating : -13–158 °F (-25–70 °C)
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 783164063011
    • GTIN : 40783164063019
    • Dimensions : 6.31" X 4.13" X 4.09"
    • Weight : 3 lb
    • Certification : UL

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
