Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED136080

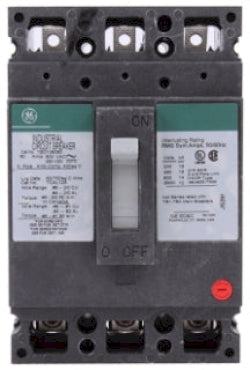

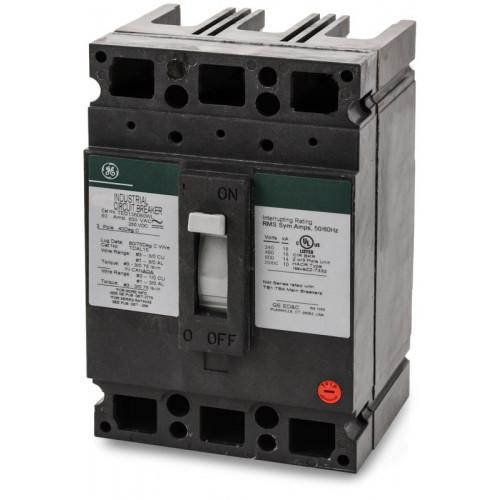

TED136080 is a General Electric 3 pole molded case circuit breaker rated for 80 amps and 600 volts, designed for reliable power distribution protection.This TED type breaker is part of the E150 Line series and features a thermal-magnetic trip unit with an 18kA interrupting rating at 480V, suitable for industrial and commercial applications.
- Key Specifications
- Amperage: 80 Amps
- Voltage Rating: 600 VAC
- Number of Poles: 3 Pole
- Series/Frame: E150 Line, TED Type
- Interrupt Rating: 18kA at 480V
- Trip Unit: Thermal-Magnetic
- Mounting Type: Bolt-On
- UL Listed Lugs for Copper and Aluminum
- Trip-Free Mechanism for Safety
- Silver Alloy Contacts for Durability
- Arc Chutes for Effective Arc Extinguishing
- Suitable for Reverse Feed Applications
Specifications
- Part Number: TED136080
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164063523
- GTIN : 00783164063523
- Weight : 3
- Certification : UL, CSA, CE
