Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED136030

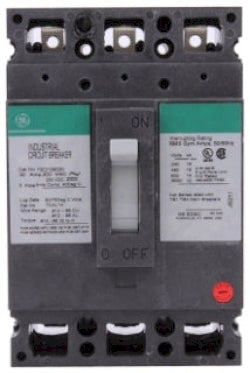

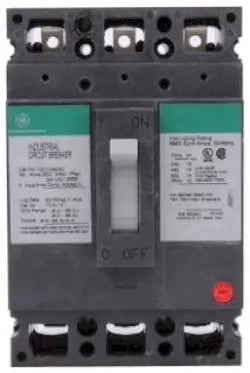

TED136030 is a General Electric 3 Pole Molded Case Circuit Breaker rated for 30 Amps and 600 VAC voltage. It features a thermal magnetic trip unit and is designed for reliable circuit protection.This circuit breaker belongs to the TED series with an E150 frame, providing a 14 to 18 kA interrupt rating at 480V. It supports 3-phase power with bolt-on mounting and load side lug connections. The breaker is UL and CSA certified, suitable for industrial and commercial applications requiring robust protection.
- Manufacturer: General Electric
- Part Number: TED136030
- Amperage: 30A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: TED (E150 Frame)
- Interrupt Rating: 14-18 kA at 480V
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous Trip)
- Mounting Type: Bolt-On
- Connection Type: Load Side Lug
- Phase: 3
- Certifications: UL 489, CSA Certified
- Operating Temperature: Up to 40-50°C
Specifications
- Part Number: TED136030
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164063455
- GTIN : 00783164063455
- Weight : 3
