Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED134050

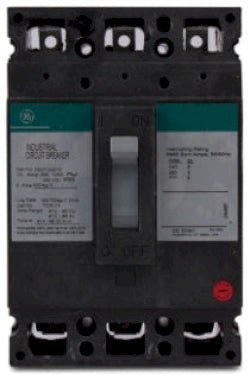

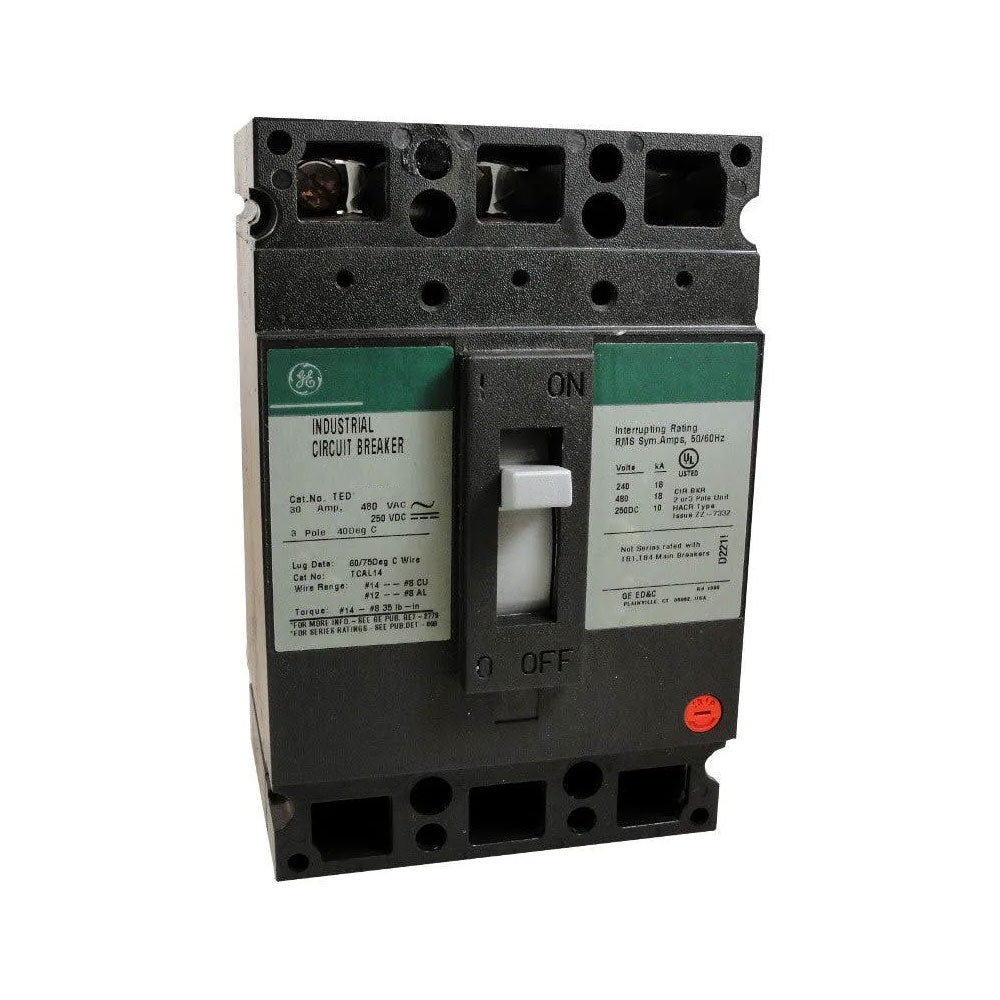

TED134050 is a General Electric 3-pole circuit breaker rated for 50 amps and 480 volts, designed for reliable power distribution protection.This molded case circuit breaker features a TED frame type with thermal magnetic trip unit technology, providing an interrupting capacity of 18 kA at 480V AC. It is bolt-on mounted and includes line and load side lug terminals for secure connections. The breaker is suitable for commercial and industrial applications requiring robust overload and short circuit protection.
- Manufacturer: General Electric
- Part Number: TED134050
- Amperage: 50 Amps
- Voltage: 480 Volts AC
- Poles: 3
- Frame Type: TED
- Mounting Type: Bolt-On
- Interrupting Capacity: 18 kA at 480V AC
- Trip Unit: Thermal Magnetic
- Certifications: NETA tested available (varies by seller)
Specifications
- Part Number: TED134050
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 480
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164063875
- GTIN : 00783164063875
- Weight : 3 lb
