Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED134025

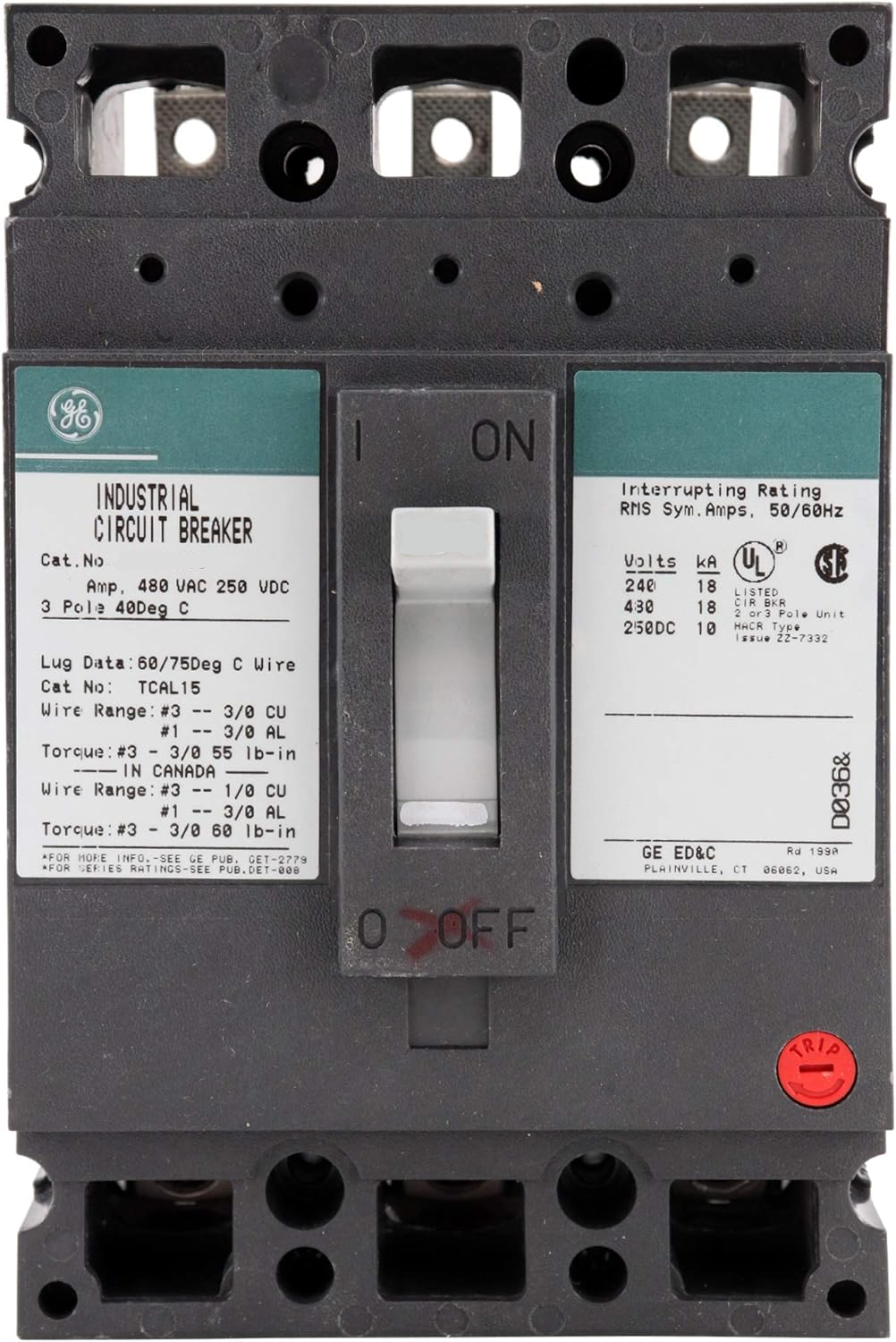

TED134025 is a General Electric 3 pole, 25 amp, 480 volt bolt-on circuit breaker designed for reliable industrial power protection.This TED series molded case circuit breaker features a fixed thermal magnetic trip unit, an interrupt rating of 18kA at 480V, and is part of the E150 line family. It includes line and load side lug terminals and is suitable for bolt-on mounting applications requiring 3 poles and 25 amps at 480 volts.
- Manufacturer: General Electric
- Part Number: TED134025
- Series: TED (E150 Line)
- Amperage: 25 Amps
- Voltage Rating: 480 Volts AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18,000 Amps (18kA) at 480V
- Trip Unit: Fixed Thermal Magnetic
- Load Side Lug Terminals Included
- Certifications: IEC Standard 947 compliant
- Weight: Approximately 3.8 lbs
Specifications
- Part Number: TED134025
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 480
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164063820
- GTIN : 40783164063828
- Weight : 3
