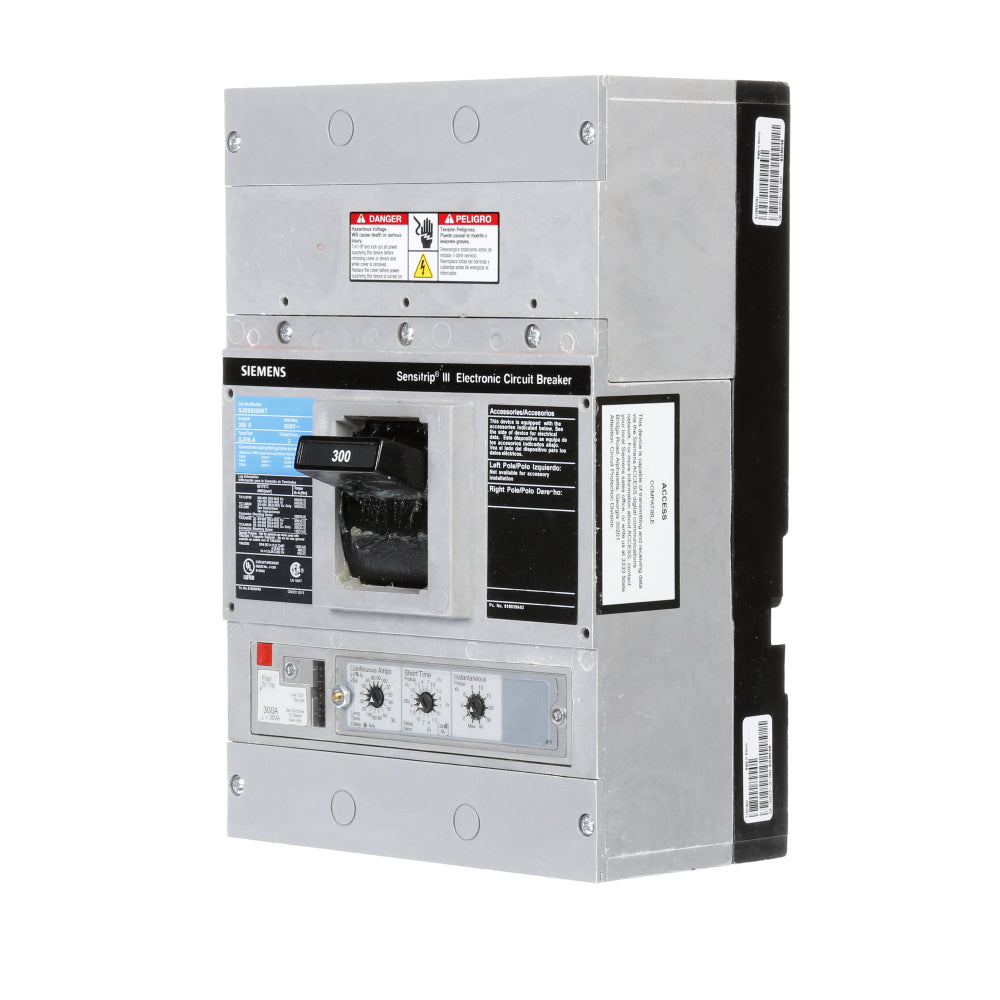

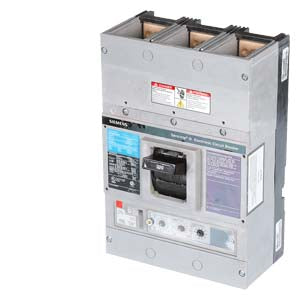

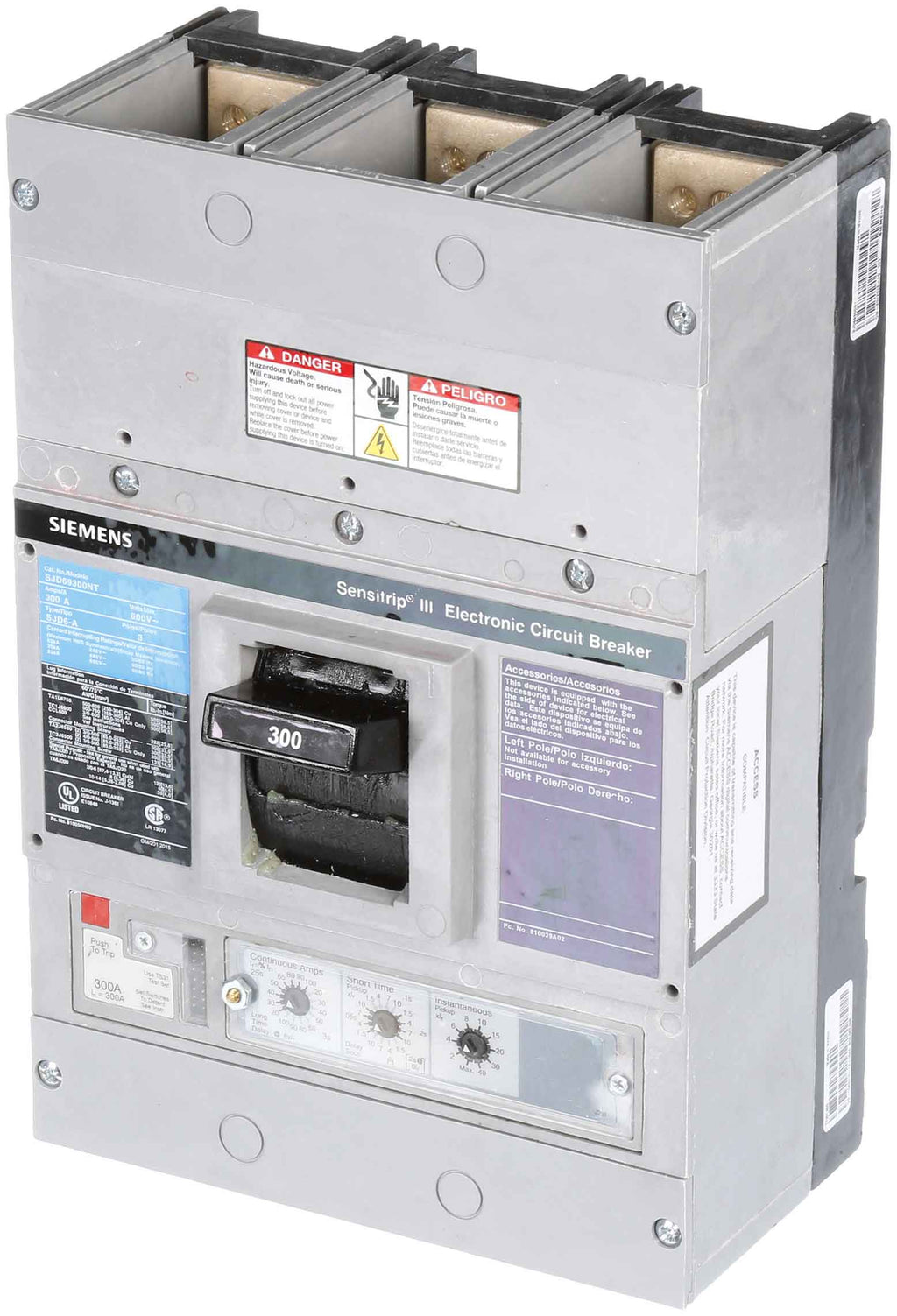

SJD69300NT - Siemens 300A 600V 3-Pole Molded Case Circuit Breaker, SJD Frame, Electronic Trip Unit, 35kAIC@480V, Bolt-On Mounting, UL 489 & IEC 60947-2 Certified

SJD69300NT

SJD69300NT is a Siemens 300A, 600V, 3-pole molded case circuit breaker designed for robust protection in industrial and commercial applications.

This circuit breaker features a solid-state electronic trip unit with Long-Time, Short-Time, and Instantaneous (LSI) functions, providing precise and adaptable protection. The SJD frame ensures high durability, and the breaker is suitable for reverse connection applications. It meets UL 489 and IEC 60947-2 standards for safety and reliability, and includes line and load side lugs for flexible installation (lugs not included).

Key Specifications
• Amperage: 300A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kAIC @ 600V, 35kAIC @ 480V, 65kAIC @ 240V
• Series/Frame: SJD (JD Frame)
• Trip Unit: Electronic (ETU), LSI functions
• Certifications: UL 489, IEC 60947-2
• Connection: Bolt-On, suitable for reverse feed
• Wire Range: 3/0AWG - 500KCM (CU), 4/0AWG - 500KCM (AL)
• Functions: Long-Time, Short-Time, Instantaneous (LSI)
• Special Features: SENSITRIP functions, line and load side lugs (not included)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SJD69300NT
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : SJD
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSI - Long Time, Short Time and Instantaneous Trip
• Frame Size : JD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 783643216945
• GTIN : 00783643216945
• Country of Origin : Mexico
• Weight : 25
• Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
