Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SHLD69600G

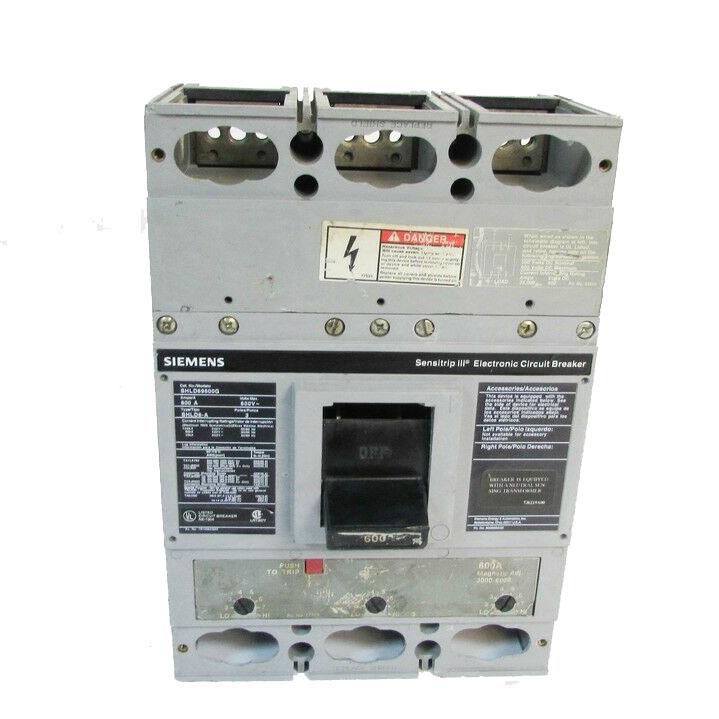

SHLD69600G is a Siemens 3 pole molded case circuit breaker rated for 600 amps and 600 volts AC with bolt-on mounting.This Siemens SHLD69600G circuit breaker features a 3-pole design with a 600 ampere rating and 600 volt AC voltage capacity. It uses the SLD frame and bolt-on connection type. The breaker has an interrupting rating of 65kA at 480V and 100kA at 240V, providing reliable short circuit protection. It includes an electronic trip unit with LSIG (long-time, short-time, instantaneous, ground fault) functions and is UL listed for safety and performance.
- Key Specifications
- Manufacturer: Siemens
- Part Number: SHLD69600G
- Amperage: 600A
- Voltage: 600V AC
- Poles: 3
- Frame/Series: SLD
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA at 480V, 100kA at 240V
- Trip Unit: Electronic LSIG
- Certifications: UL Listed
Specifications
- Part Number: SHLD69600G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SHLD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Frame Size : LD Frame
- Protection : Solid State
Product Data
- UPC : 783643217539
- GTIN : 00783643217539
- Country of Origin : Mexico
- Weight : 25
- Wire Size : 3/0AWG - 500KCM (CU) / 4/0AWG - 500KCM (AL)
