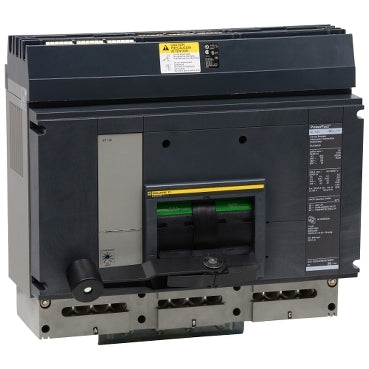

RKA36120CU44A - Schneider Electric 1200A 600V 3-Pole PowerPact R Circuit Breaker I-Line Micrologic 6.0A

RKA36120CU44A

RKA36120CU44A is a Schneider Electric 3-pole, 1200 amp, 600 Volt PowerPact R molded case circuit breaker with I-Line mounting and Micrologic 6.0A trip unit.This circuit breaker provides reliable protection against overloads and short circuits with a 65kA interrupting rating at 480V. It features a 100% continuous current rating and is UL 489 Listed, CSA NMX, and IEC certified. Designed for use in industrial and commercial power distribution systems, it supports PowerLogic monitoring systems and is compatible with a range of accessories.

• Amperage: 1200A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 65kA @ 480V
• Series/Frame: PowerPact R
• Trip Unit: Micrologic 6.0A
• Continuous Current Rating: 100%
• Certifications: UL 489, CSA NMX, IEC
• Compatible with PowerLogic systems
• Weight: Approximately 52 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RKA36120CU44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...600 kcmil aluminium/copper
  4 x AWG 3/0...500 kcmil copper
