Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

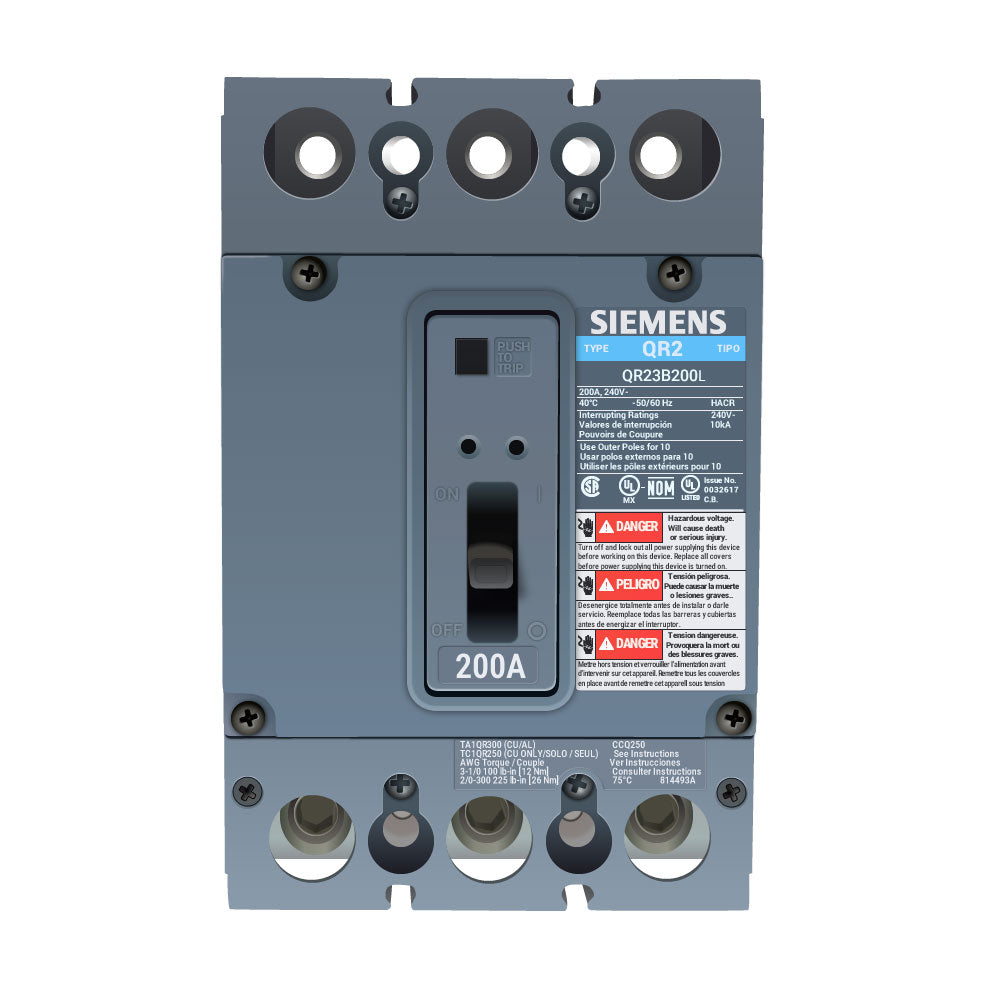

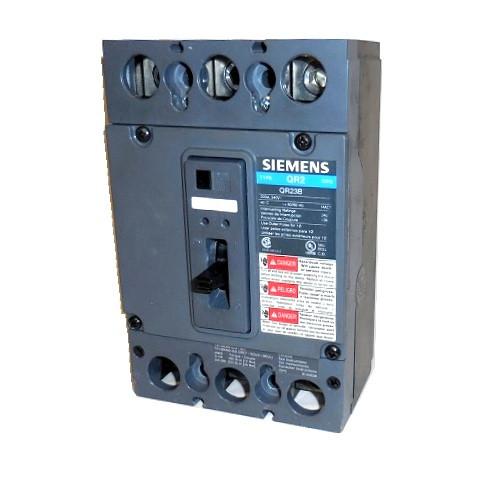

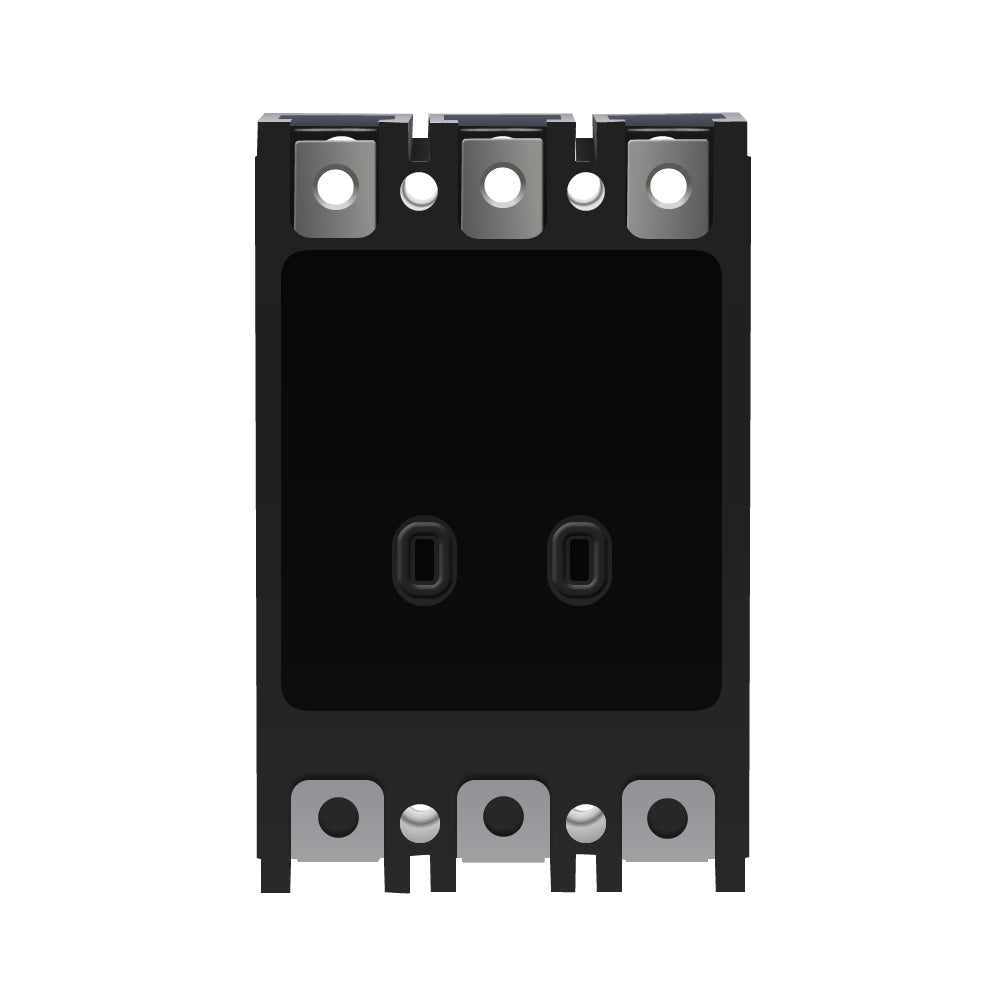

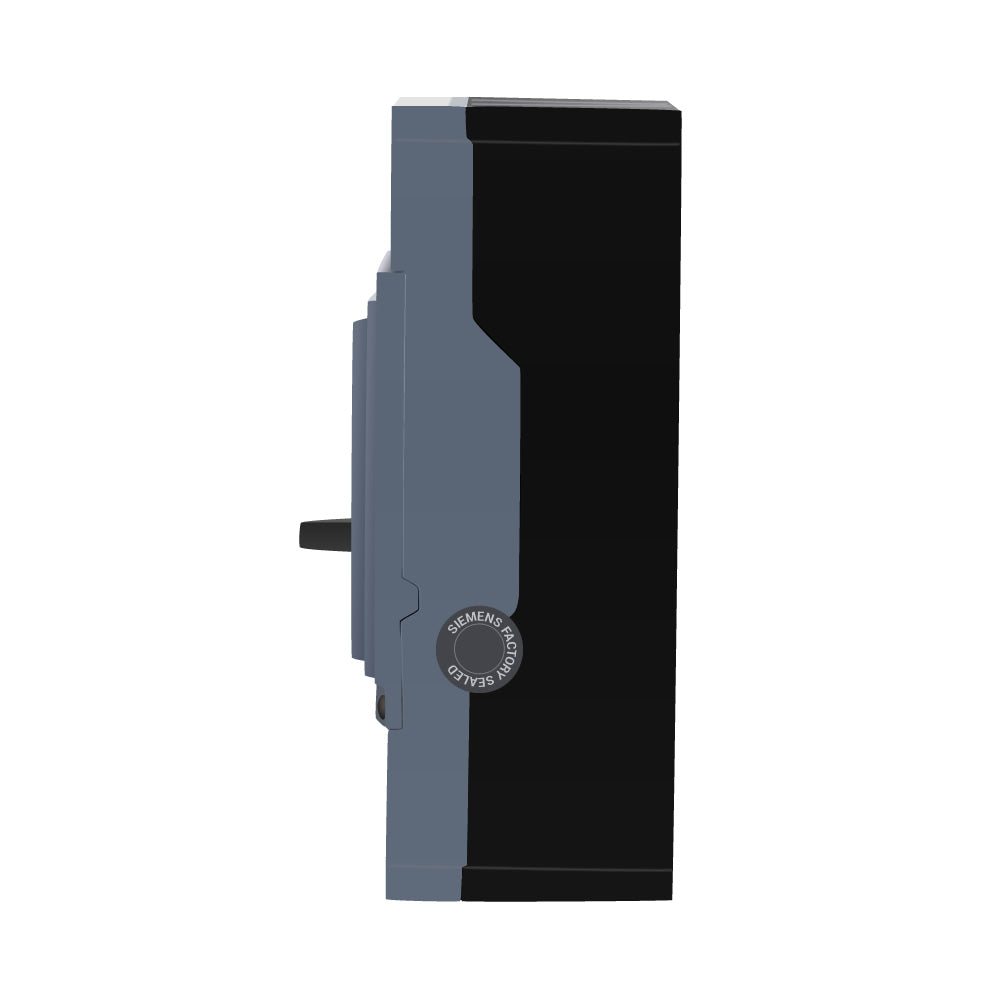

QR23B200L
QR23B200L is a Siemens molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 200A, 240V, 3-pole breaker features a thermal-magnetic trip unit and a 10kA interrupt rating, suitable for use in panelboards, switchboards, and control panels. The QR frame offers a compact design with bolt-on mounting and line/load lugs installed for easy installation. Engineered for durability and safety, the QR23B200L is UL Listed and CSA Certified, meeting North American standards for circuit protection. It is calibrated for standard 40°C ambient temperature and supports field-installable accessories for added flexibility. The breaker is ideal for use in load centers, power panels, and meter centers where dependable overcurrent protection is required.
- Part Number: QR23B200L
- Manufacturer: Siemens
- Amperage: 200A
- Voltage: 240V AC
- Poles: 3
- Interrupt Rating: 10kA @ 240V
- Mounting Type: Bolt-On
- Series/Frame: QR
- Thermal-Magnetic Trip Unit
- Line/Load Lugs Installed
- UL Listed, CSA Certified
- Standard 40°C Breaker
Specifications
- Part Number: QR23B200L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QR2
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136733
- GTIN : 00804766136733
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 4.519
