Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

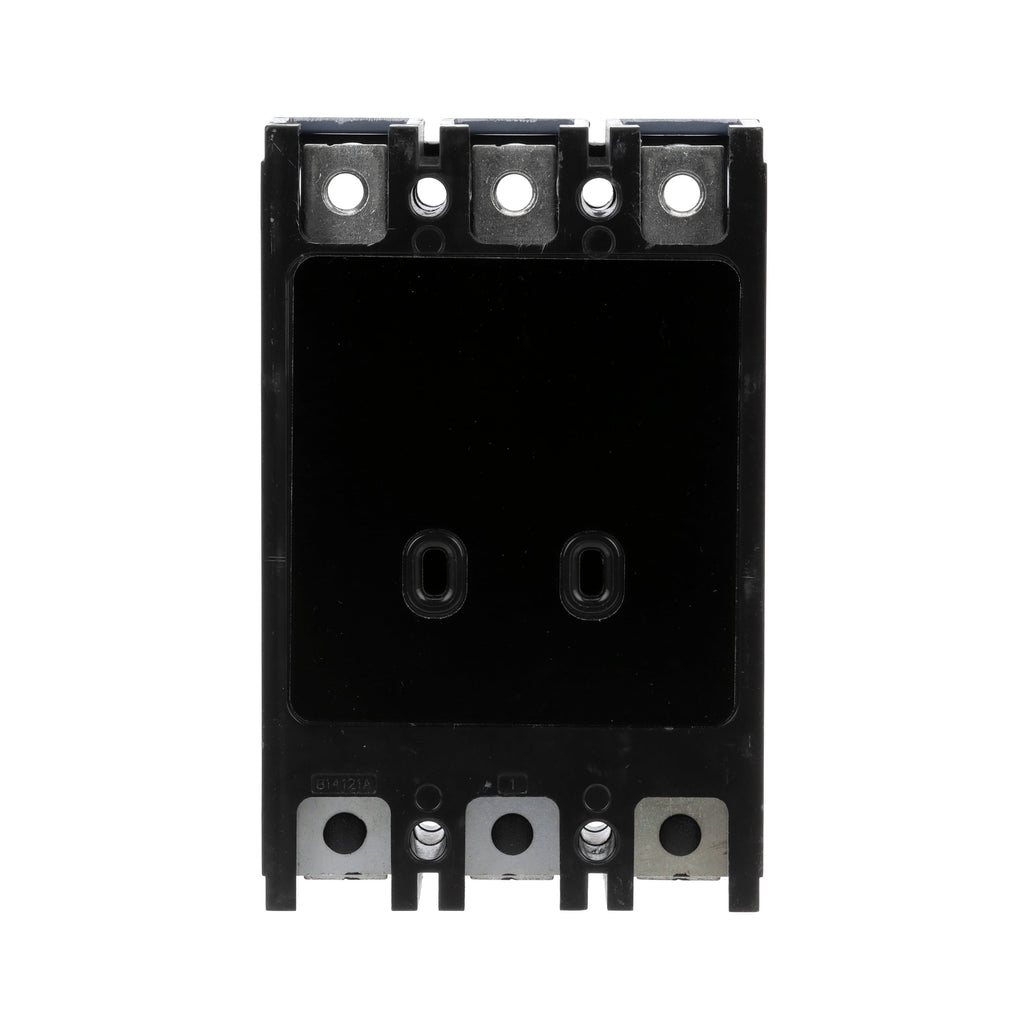

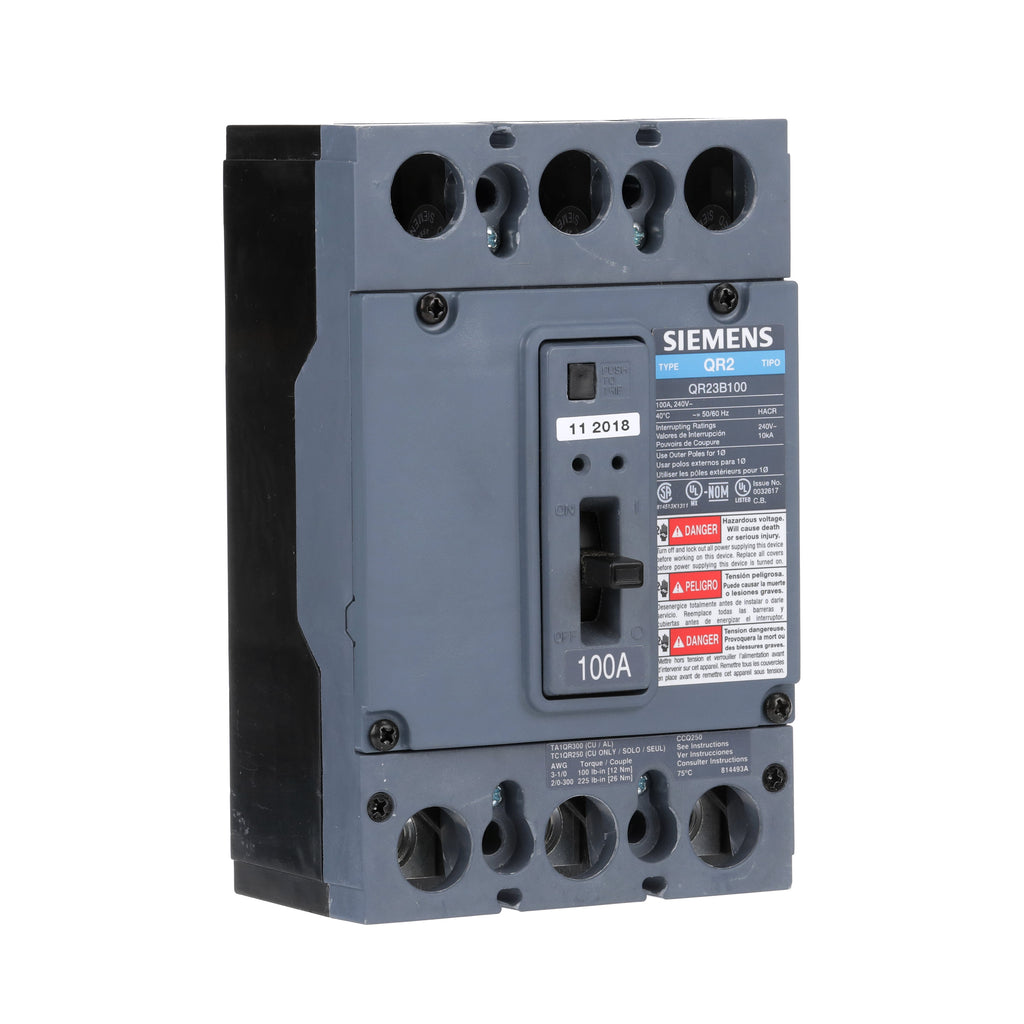

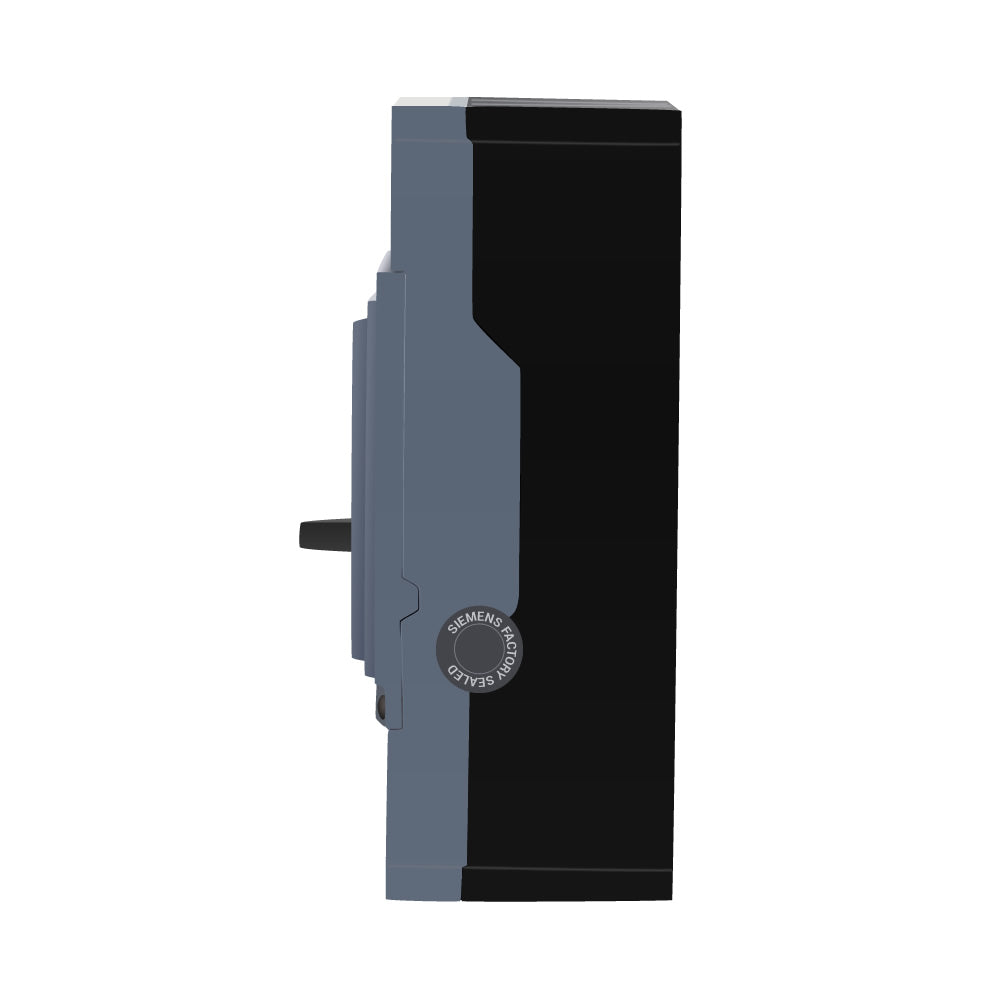

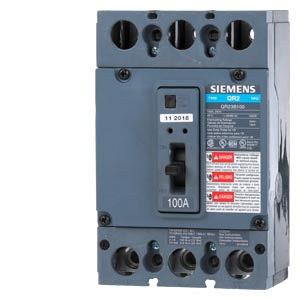

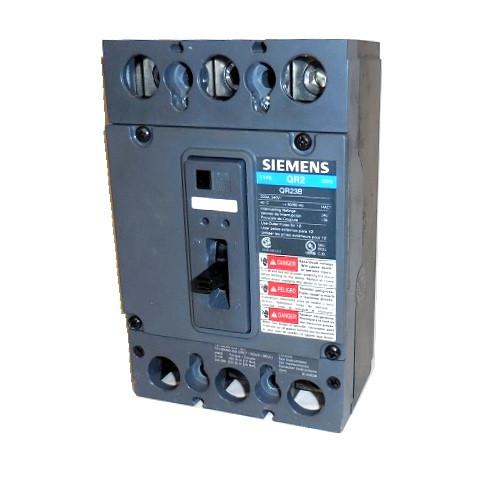

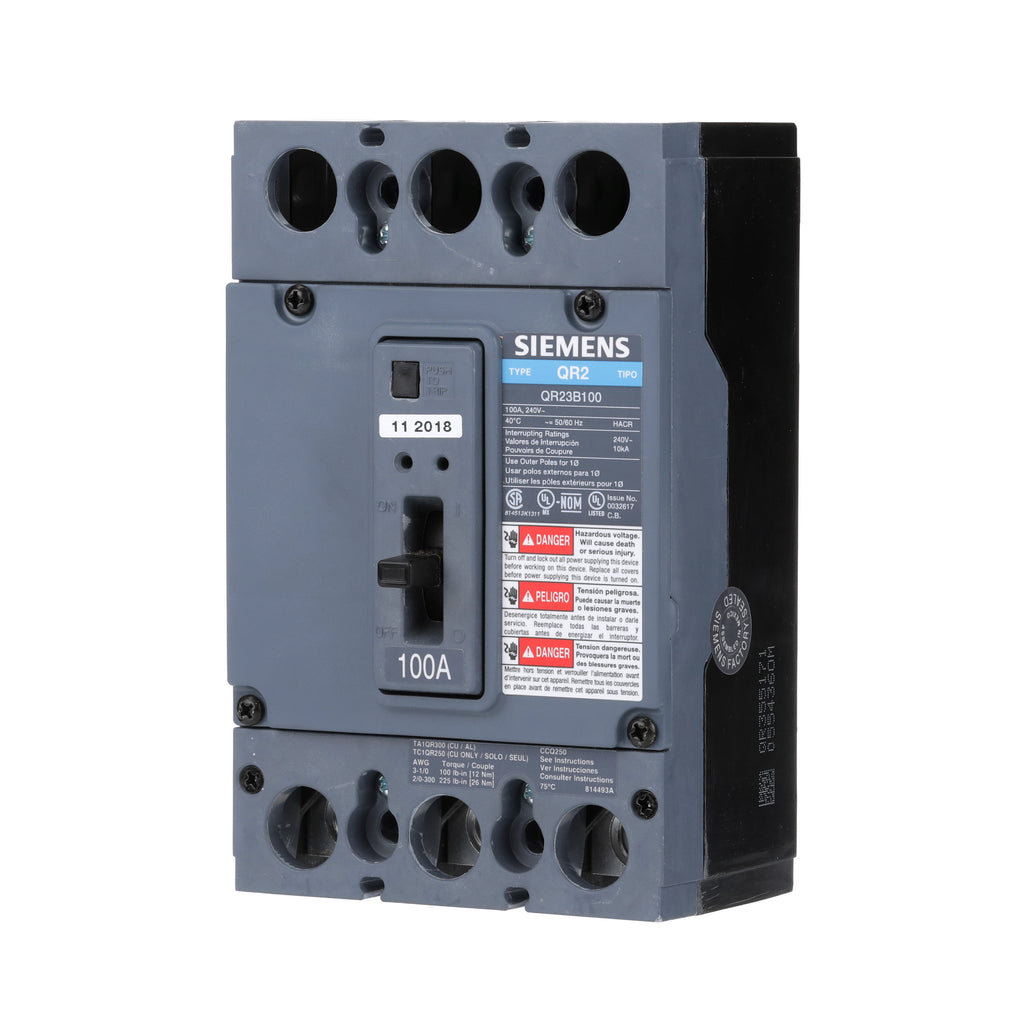

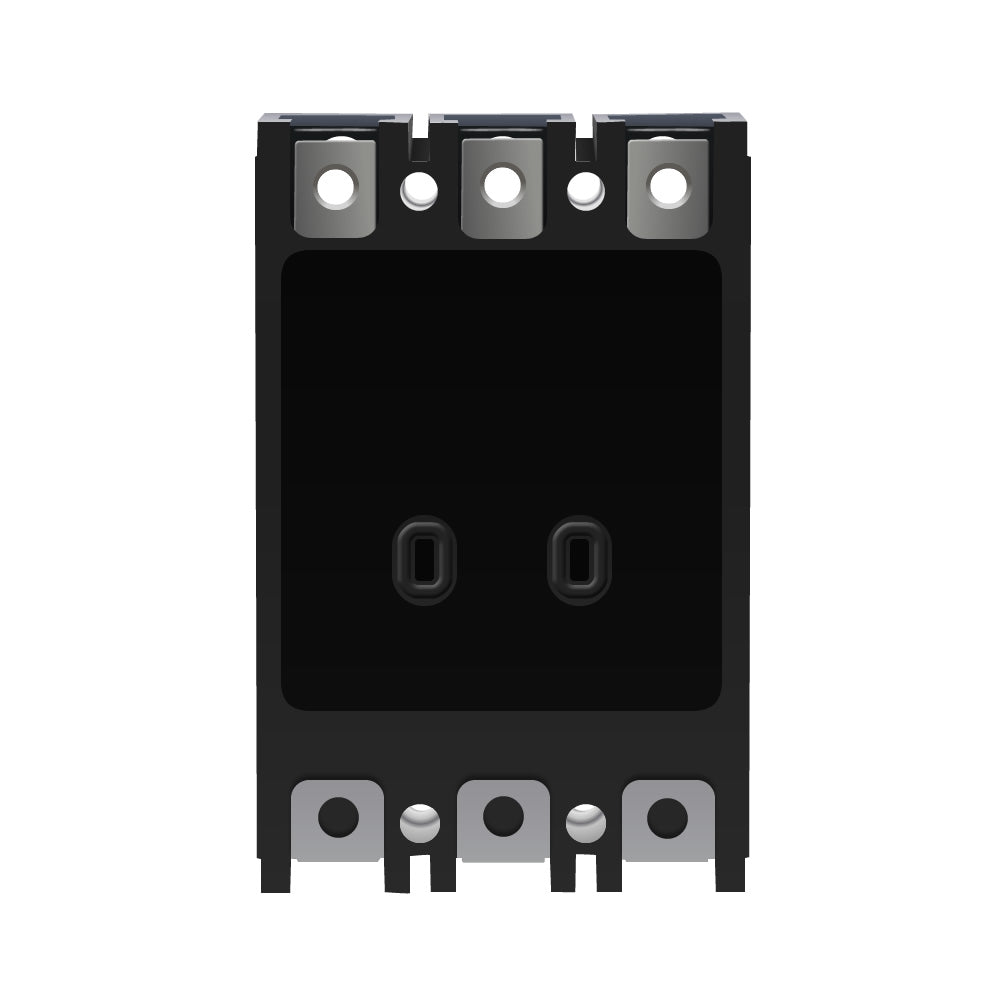

QR23B100

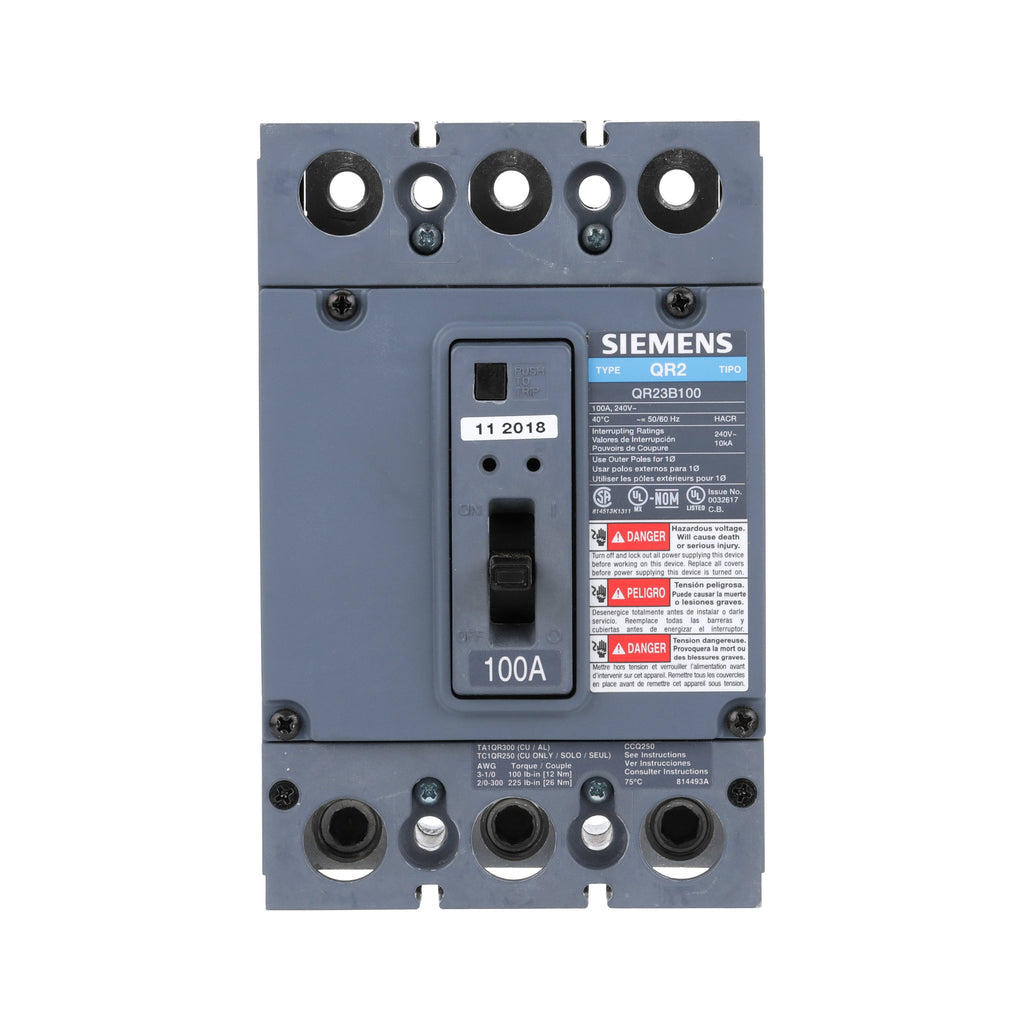

QR23B100 is a Siemens 3-pole molded case circuit breaker designed for reliable protection in low voltage applications.
This thermal magnetic trip circuit breaker features a 100A amperage rating, 240V voltage rating, and a 10kA interrupting capacity. It is part of the QR frame series, offers bolt-on mounting, and is suitable for use in panelboards, switchboards, and similar equipment. The breaker is calibrated for 40°C ambient temperature and is certified to UL 489 and HACR standards.
-
Key Specifications
- Part Number: QR23B100
- Manufacturer: Siemens
- Amperage: 100A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA @ 240V
- Series/Frame: QR
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, HACR
- Frequency: 50/60 Hz
- Wire Size: 3 AWG to 300 kcmil Cu
- Connection: Load Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QR23B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QR2
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136627
- GTIN : 00804766136627
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 4.519
- Certification : UL, CSA, NOM
