QOU330VH - Square D 30 Amp 240VAC 3 Pole Miniature Circuit Breaker, 22kA Interrupt, QOU Series, Thermal/Magnetic Trip, Panel Mount

Save $210.72
SKU: QOU330VH-New
Condition: New
Price:
$249.36 $460.08
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

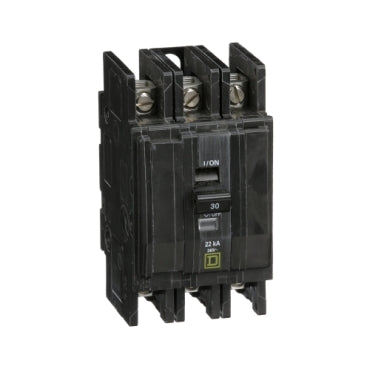

QOU330VH Square D Molded Case Circuit Breaker QOU Series 30A 240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOU330VH Square D Molded Case Circuit Breaker QOU Series 30A 240V - Essential Electric Supply

Description

QOU330VH


QOU330VH is a Square D 3-pole miniature circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal/magnetic trip breaker features a 30 Amp current rating, 240VAC voltage rating, and a high interrupting capacity of 22kA at 240VAC. It is part of the QOU series, offers panel mounting, and is suitable for use with 14 to 2 AWG copper or aluminum wire. Ideal for air conditioning, refrigeration, and general power distribution equipment.

    Key Specifications
  • Part Number: QOU330VH
  • Manufacturer: Square D
  • Amperage: 30A
  • Voltage: 240VAC, 48VDC
  • Poles: 3
  • Mounting Type: Panel Mount
  • Interrupt Rating: 22kA at 240VAC, 5kA at 48VDC
  • Series/Frame: QOU
  • Trip Unit: Thermal/Magnetic
  • Wire Size: 14 to 2 AWG (Copper/Aluminum)
  • Certifications: Not specified
  • Dimensions: 2.25" W x 2.95" D x 4.05" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOU330VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOU Series
  • Type : QOU
  • Voltage : 240
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Slotted Box Lug (Reversible Line and Load)
  • Frame Size : 100A/QOU
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901560067
  • GTIN : 00785901560067
  • Country of Origin : Mexico
  • Dimensions : 4.05 in (102.87 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
  • Weight : 1.119
  • Panel Type : Air Conditioning and Refrigeration Equipment, Heating
  • Standards : CSA, IEC, UL listed
  • Certification : IEC, UL listed
  • Wire Size : AWG 14...AWG 2 aluminium/copper
