QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series

Save $191.65
SKU: QOU335-New
Condition: New
Price:
$116.15 $307.80
Stock:
60 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

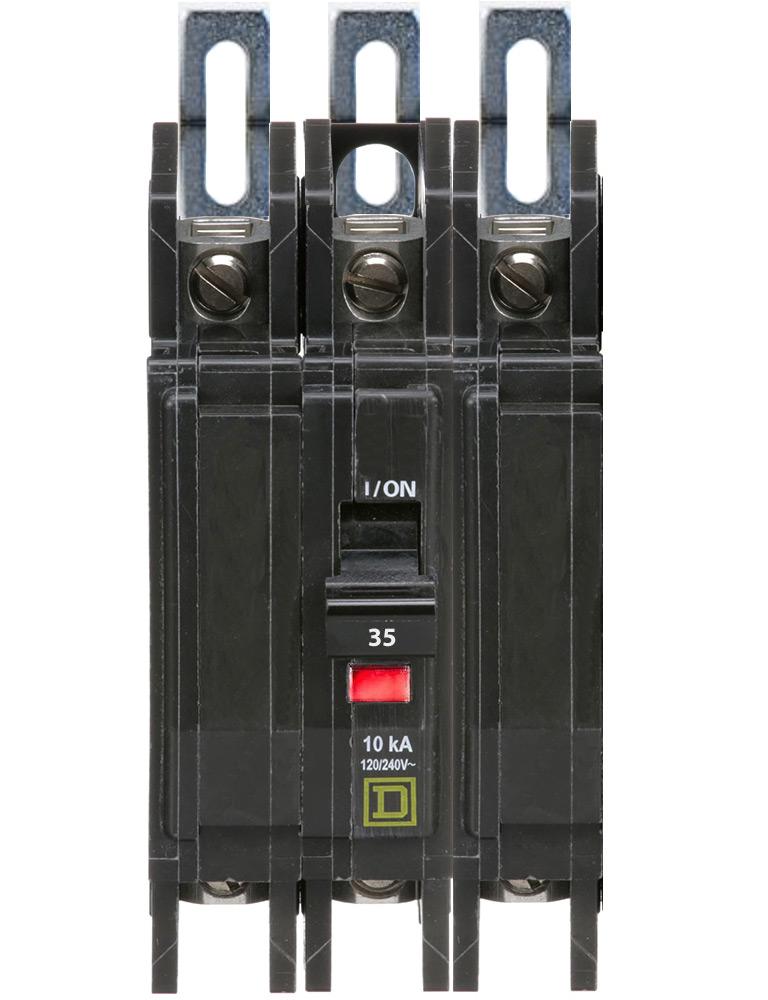

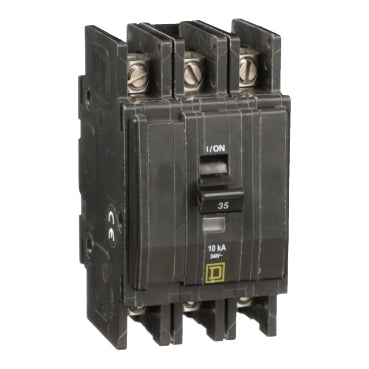

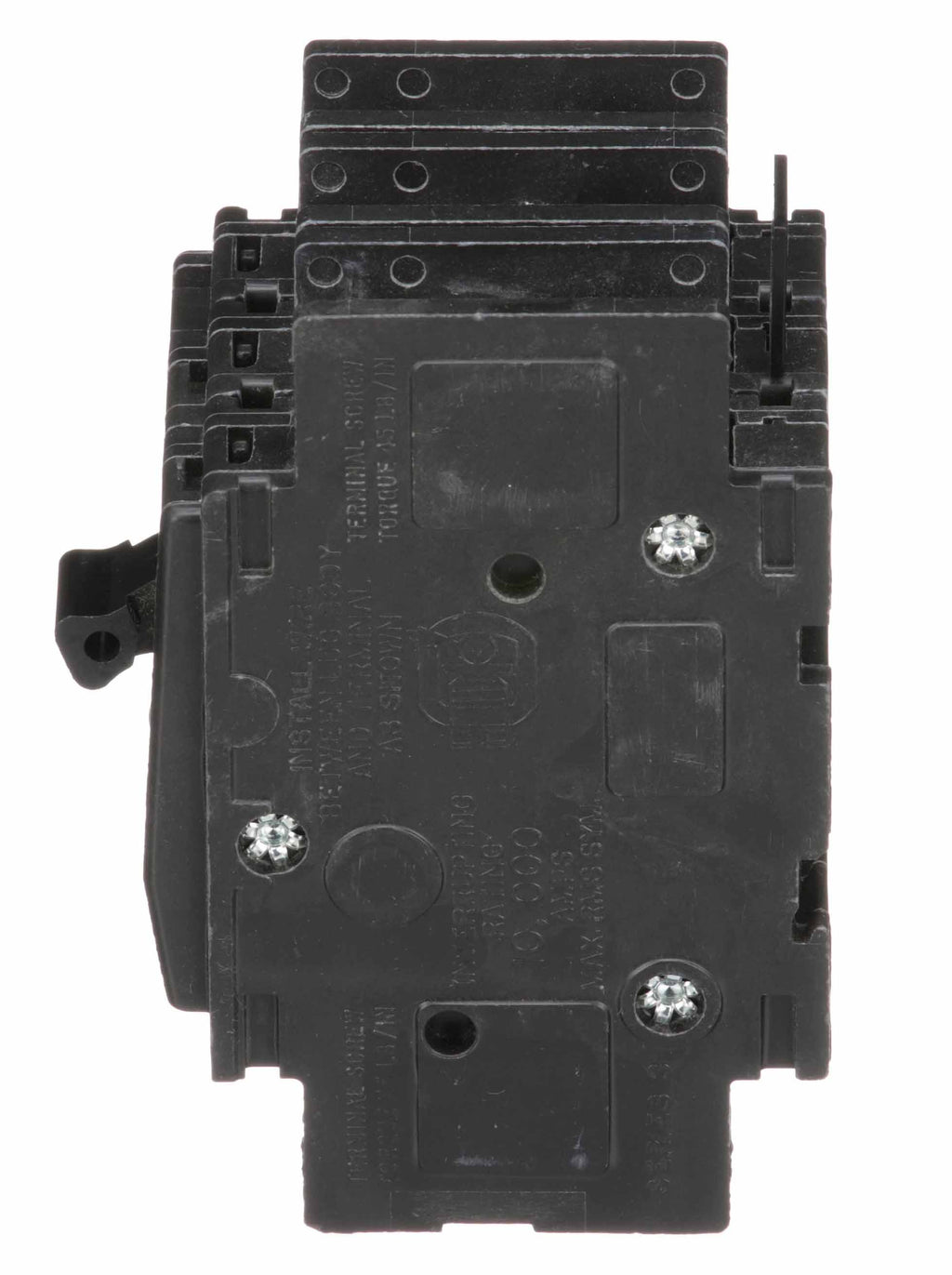

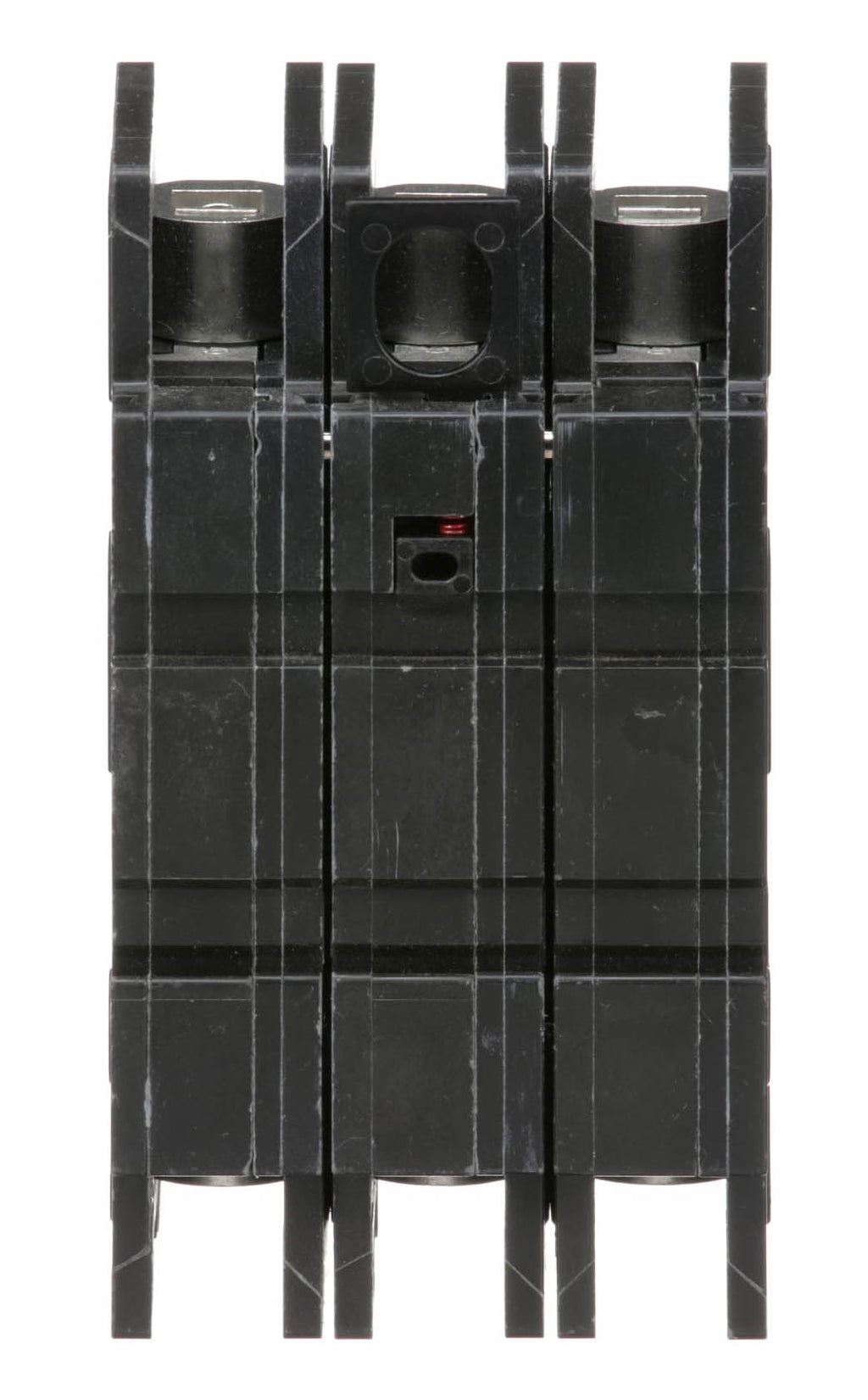

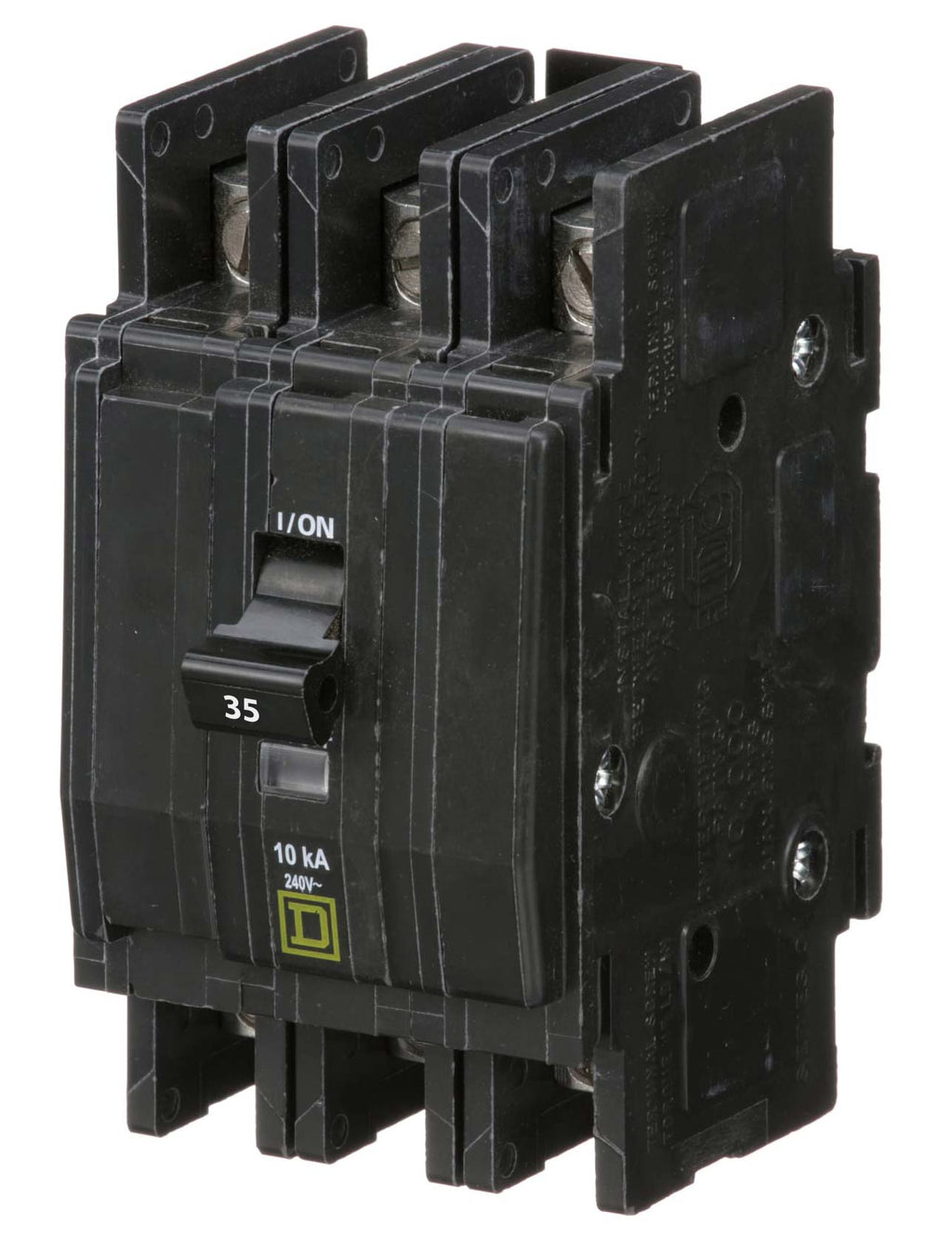

QOU335 - Square D Bolt-On 35 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOU335 - Square D Bolt-On 35 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply
QOU335 - Square D 35 Amp 240V 3 Pole Thermal Magnetic Circuit Breaker QOU Series - Essential Electric Supply

Description

QOU335


QOU335 is a 3 Pole, 35 Amp thermal magnetic circuit breaker from Square D's QOU series designed for reliable protection in electrical systems.This molded case circuit breaker supports 120/240VAC and 48VDC voltages with a 10kA interrupting rating at 120/240VAC. It features long time and instantaneous trip functions, feed-thru connection type, and is suitable for use with air conditioning and refrigeration equipment. The breaker has slotted box line and load side lugs, supports wire sizes from AWG 14 to AWG 2 (copper or aluminum), and is UL, CSA, and IEC certified.
    Key Specifications
    • Amperage: 35 Amps
    • Voltage: 120/240VAC, 48VDC
    • Poles: 3
    • Interrupt Rating: 10kAIC at 120/240VAC
    • Series/Frame: QOU
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
    • Mounting Type: Unit Mount
    • Connection Type: Feed-Thru with Slotted Box Lugs
    • Wire Gauge: AWG 14 to AWG 2 (Copper/Aluminum)
    • Certifications: UL, CSA, IEC
    • Dimensions (LxWxH): 2.95 x 2.25 x 4.05 inches
    • Mercury Free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOU335
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOU Series
  • Type : QOU
  • Voltage : 240
  • Amperage : 35
  • Phase : 3
  • Poles : 3
  • AIC rating : 10kA@240V
  • Connection : Unit Mount
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Slotted Box Lug (Reversible Line and Load)
  • Frame Size : 100A/QOU
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901489184
  • GTIN : 00785901489184
  • Country of Origin : Mexico
  • Dimensions : 4.05 in (102.87 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
  • Weight : 1.13
  • Panel Type : Air Conditioning and Refrigeration Equipment, Heating
  • Standards : CSA, IEC, UL listed
  • Certification : IEC, UL listed
  • Wire Size : AWG 14...AWG 2 aluminium/copper
