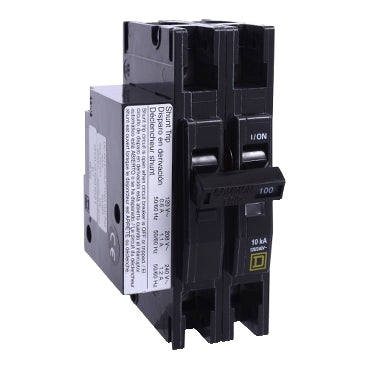

QOU2801042 - Square D QOU 80A 2-Pole 120/240V 10kA Shunt Trip Circuit Breaker

QOU2801042

QOU2801042 is a Square D QOU series miniature circuit breaker rated for 80 amperes at 120/240 volts AC with a 10,000 ampere interrupt rating and shunt trip capability. This 2-pole unit features slotted box lugs on both line and load sides, supporting wire sizes from AWG 12 to AWG 2/0 in aluminum or copper. The breaker is designed for unit mount installation and provides thermal-magnetic protection with permanent trip operation. Key Specifications

• Amperage Rating: 80A
• Number of Poles: 2
• Voltage: 120/240V AC, 120V AC, 60V DC
• Interrupt Rating: 10kA @ 120/240V AC, 10kA @ 120V AC, 5kA @ 60V DC
• Series: QOU
• Trip Unit: Thermal-Magnetic with Shunt Trip
• Mounting: Unit Mount (DIN Rail Style)
• Electrical Connection: Slotted Box Lugs
• Wire Size: AWG 12 to AWG 2/0
• Wire Material: Aluminum or Copper
• Certifications: UL/CSA Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU2801042
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901559948
• Country of Origin : Mexico
• Dimensions : 4.45 in (113.03 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.239
• Certification : UL listed - IEC - CSA
• Wire Size : AWG 12...AWG 2/0 aluminium/copper
