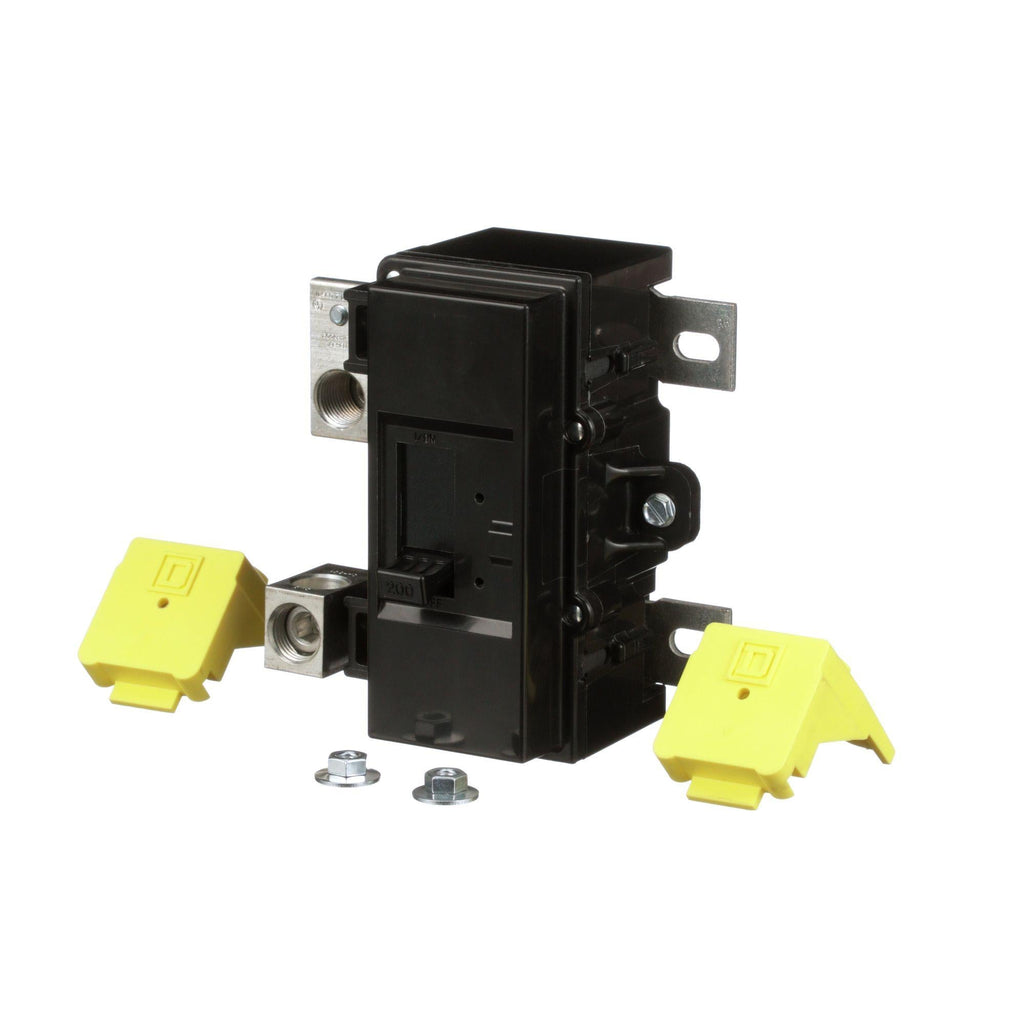

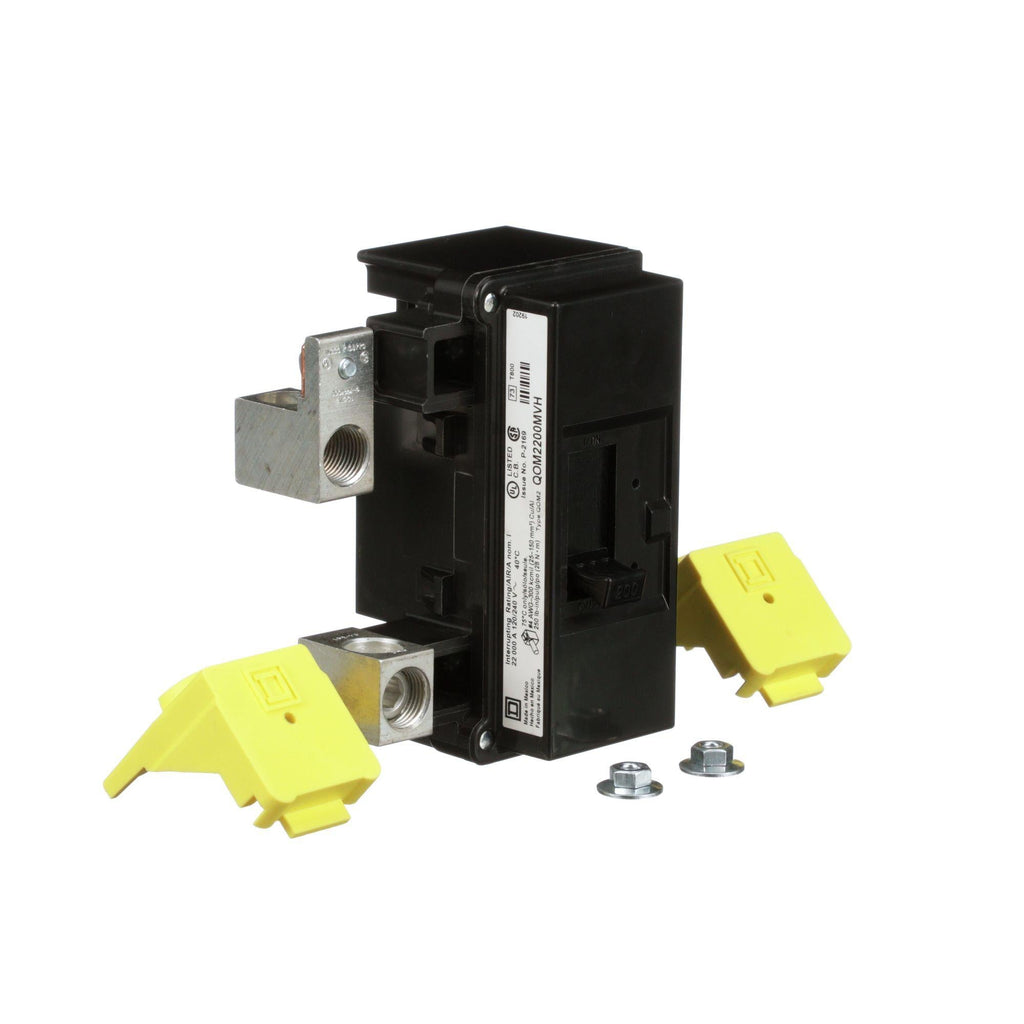

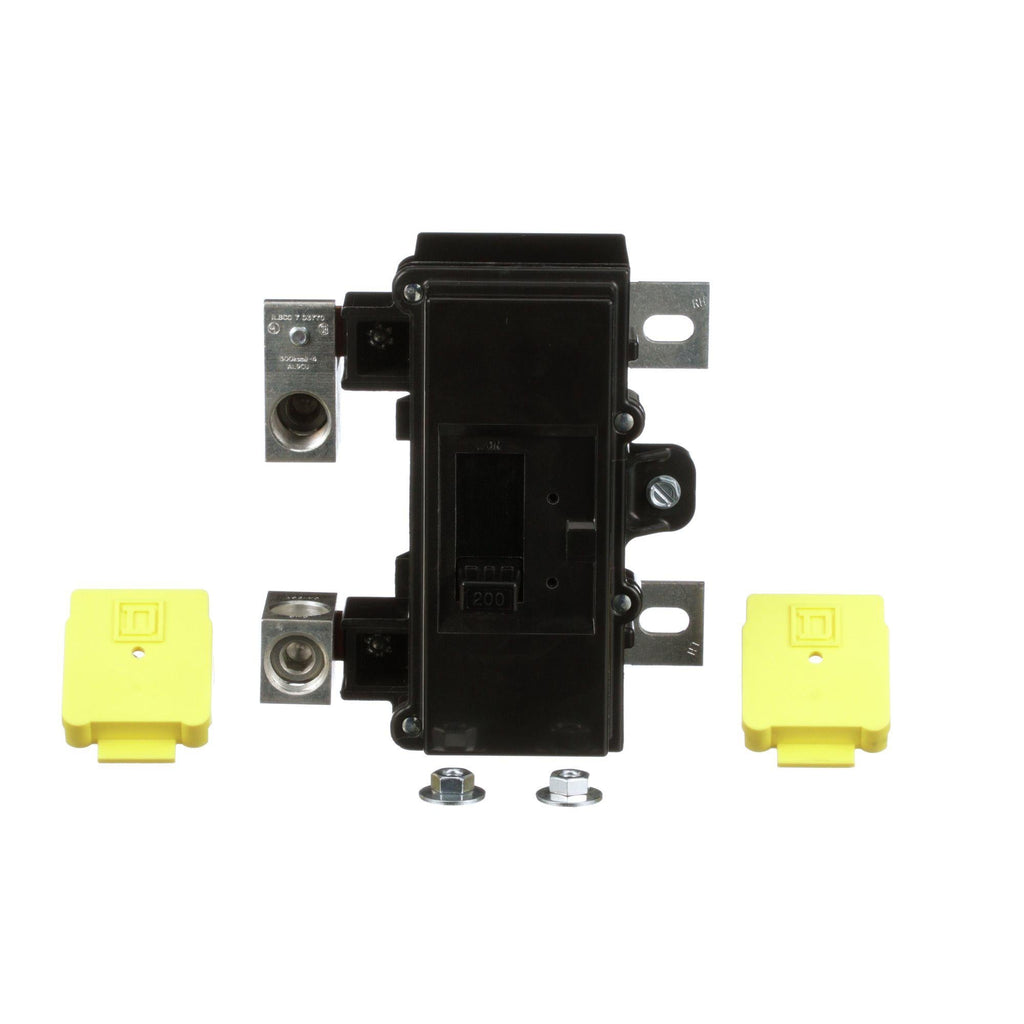

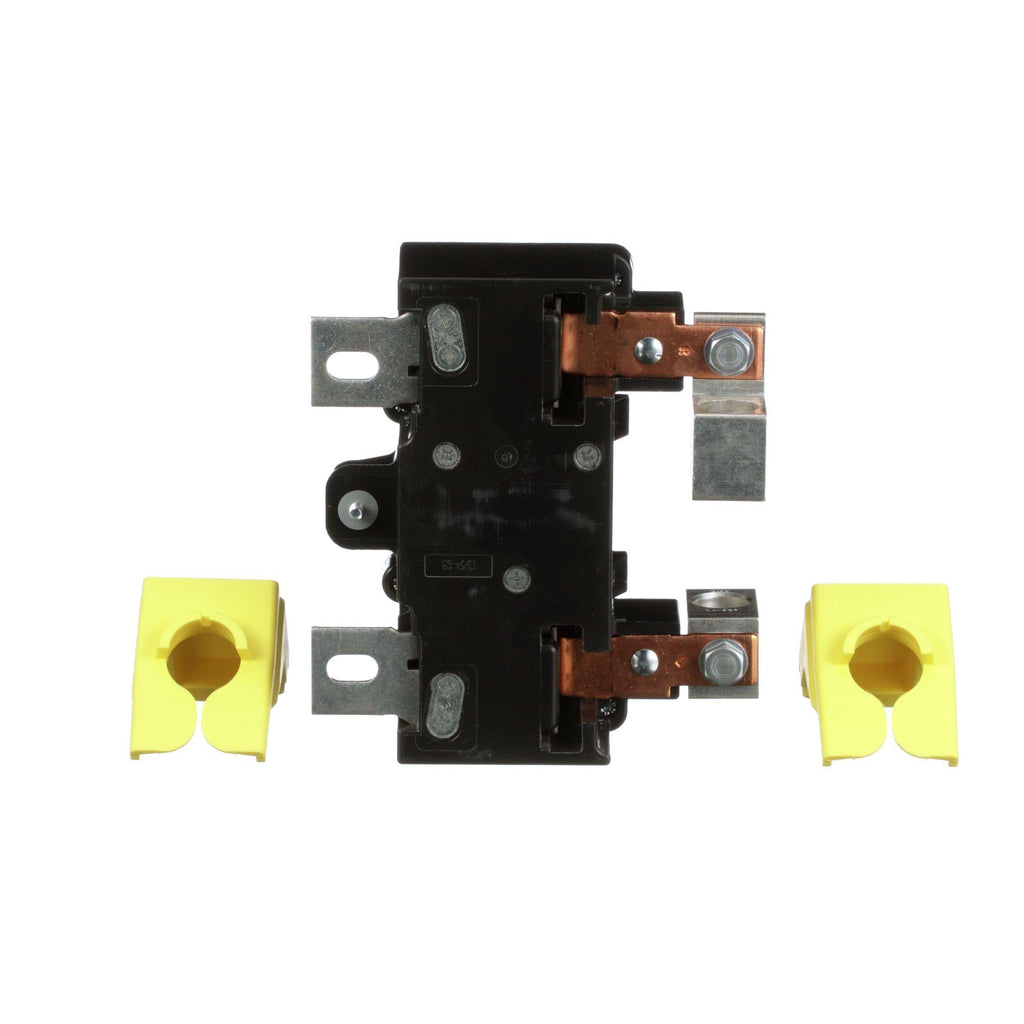

QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame

Save $637.69
SKU: QOM2200MVH-New
Condition: New
Price:
$505.31 $1,143.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOM2200MVH - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOM2200MVH - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply
QOM2200MVH - Square D 200A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker 22kAIC QOM2 Frame - Essential Electric Supply

Description

QOM2200MVH


QOM2200MVH is a 200A 2 pole main circuit breaker designed for reliable overcurrent protection in load centers and meter packs. This Square D QOM2200MVH breaker features a 120/240VAC rating, 22kAIC interrupting capacity, and bolt-on mounting for secure installation. It is part of the QO series and offers thermal magnetic protection with long time and instantaneous trip functions. Engineered for durability and safety, the QOM2200MVH is UL Listed and CSA Certified, suitable for use in commercial and industrial applications. The breaker includes VisiTrip trip indication for clear status monitoring and is compatible with QO and Meter-Pak load centers. Its robust design ensures dependable performance in demanding environments.
  • Part Number: QOM2200MVH
  • Manufacturer: Square D
  • Series/Frame: QO / QOM2
  • Amperage: 200A
  • Voltage: 120/240VAC
  • Poles: 2
  • Mounting Type: Bolt-On
  • Interrupting Rating: 22kAIC at 120/240VAC
  • Protection Type: Thermal Magnetic
  • Trip Functions: Long Time and Instantaneous
  • Standards: UL Listed, CSA Certified
  • Application: Load Center, Meter-Pak
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOM2200MVH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOM Series
  • Type : QOM
  • Voltage : 240
  • Amperage : 200
  • Phase : 1
  • Poles : 2
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
  • Breaker Type : Main Breaker
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901301530
  • GTIN : 00785901301530
  • Country of Origin : Mexico
  • Dimensions : 5.6 in (142 mm) x 5.08 in (129 mm) x 3.6 in (91 mm) (Height x Width x Depth)
  • Weight : 2.601
  • Panel Type : QO Load Center
  • Standards : UL Listed, CSA
  • Certification : UL Listed, CSA
  • Wire Size : AWG 4 to 300KCmil, Copper/Aluminum
