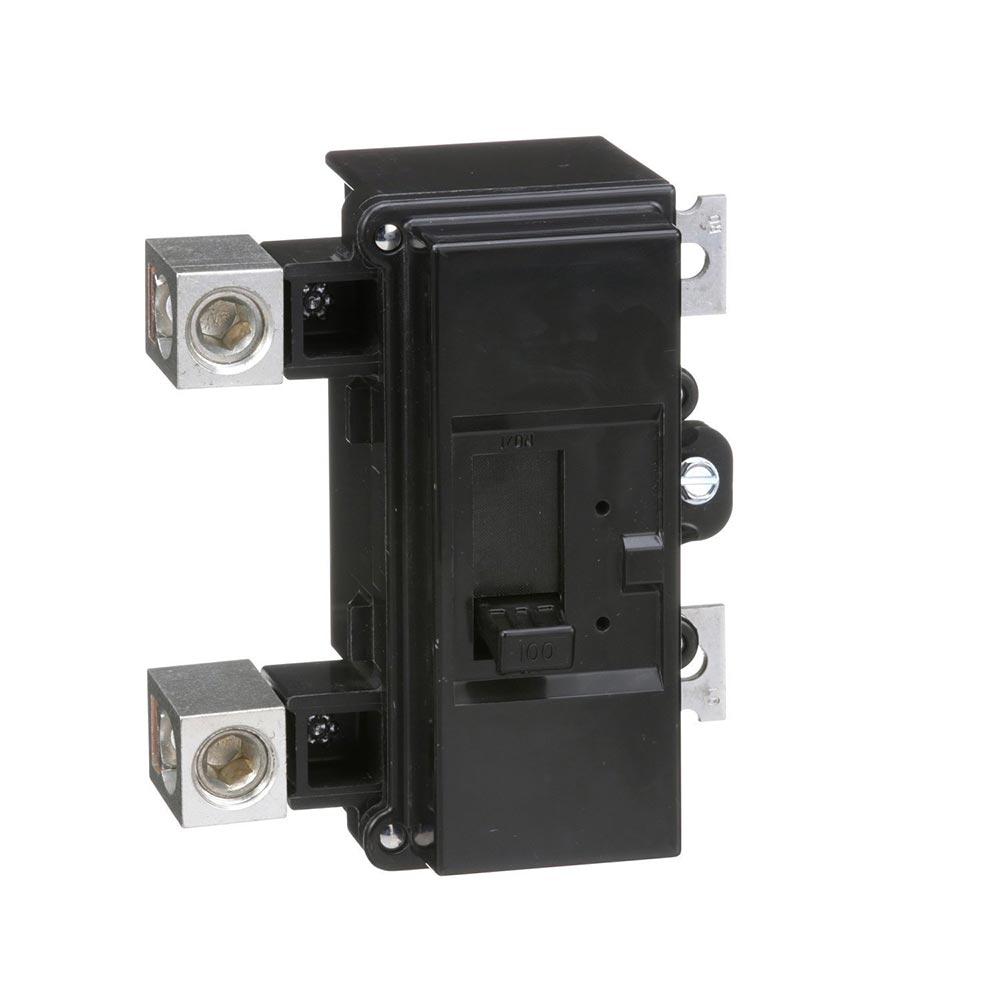

QOM2200VH - Square D 200 Amp 2 Pole 120/240VAC QO Circuit Breaker Bolt-On 22kA Interrupt

QOM2200VH

QOM2200VH is a Square D QO series miniature circuit breaker rated for 200 amps and 120/240 volts AC with a 2 pole configuration and bolt-on mounting.This thermal magnetic circuit breaker provides reliable overcurrent protection with a 22kA interrupt rating at 120/240VAC. It features instantaneous and long-time trip functions, lug-type connections for wire sizes 4 AWG to 300 kcmil (aluminum or copper), and is UL and CSA certified. Designed for use in QO and Homeline load centers, it has a compact form factor and a temperature rating of 40°C.

Key Specifications
• Amperage: 200 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic (Instantaneous/Long Time)
• Wire Size: 4 AWG to 300 kcmil (Aluminum/Copper)
• Connection Type: Lug
• Phase: Single
• Certifications: UL Listed, CSA Certified
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2200VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901004066
• GTIN : 00785901004066
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 3.6 in (91 mm) x 5.08 in (129 mm) (Height x Width x Depth)
• Weight : 2.639
• Standards : CSA, UL Listed
• Certification : UL Listed; CSA
• Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
