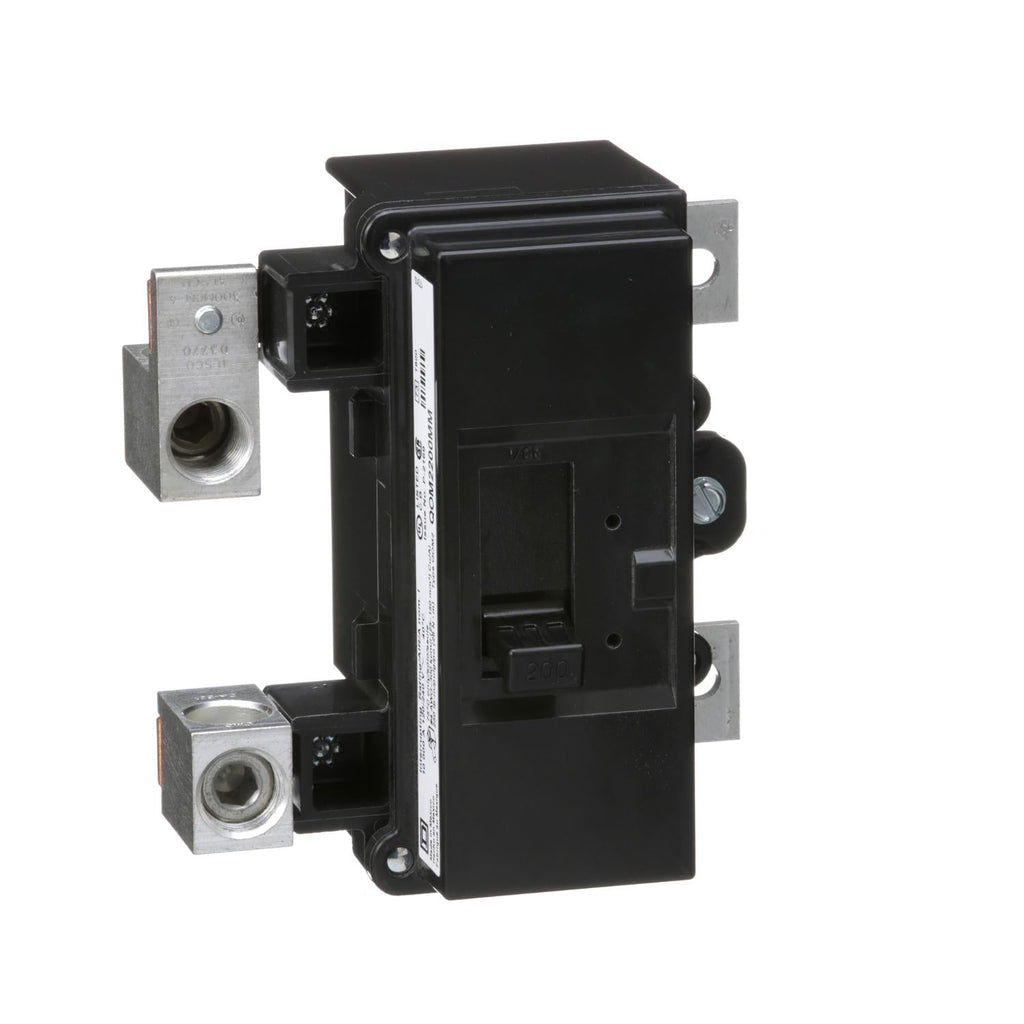

QOM2200MM - Square D 200A 120/240V 2-Pole Bolt-On QO Miniature Circuit Breaker

QOM2200MM

QOM2200MM is a Square D 2-pole miniature circuit breaker rated for 200 amps and 120/240 volts AC with bolt-on mounting type.

This thermal magnetic molded case circuit breaker is designed for use as a primary main breaker in QO load centers and metering equipment. It features a 10kA interrupt rating and is UL and CSA certified, ensuring reliable protection and compliance with safety standards.

Key Specifications
• Manufacturer: Square D
• Part Number: QOM2200MM
• Amperage: 200 Amps
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2200MM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901765226
• GTIN : 00785901765226
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 5.08 in (129 mm) x 3.6 in (91 mm) (Height x Width x Depth)
• Weight : 2.67
• Panel Type : QO Load Center
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 4 to 300KCmil, Copper or Aluminum
