QOB2701021 - Square D 70A 2-Pole 120/240V AC Miniature Circuit Breaker Bolt-On Mount

Save $78.15
SKU: QOB2701021-New
Condition: New
Price:
$278.85 $357.00
Stock:
9 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

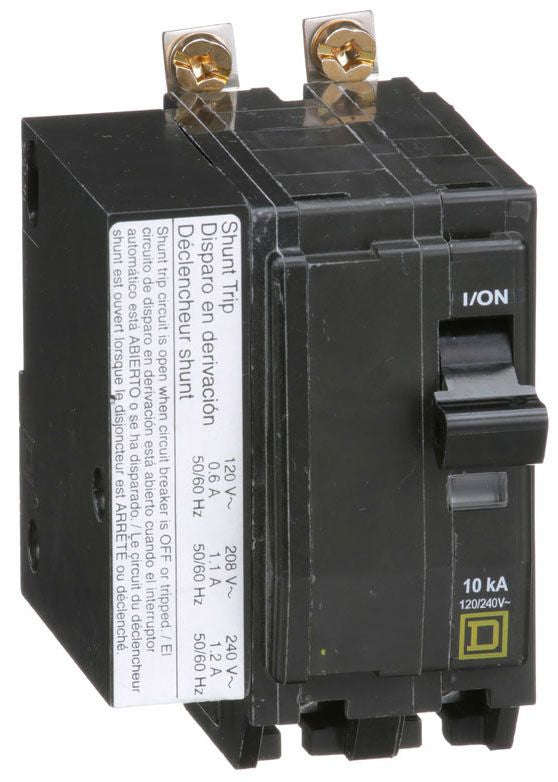

QOB2701021 - Square D Bolt-on 120/240 VACV 70A 2 pole circuit breaker 10kA@120V - Essential Electric Supply

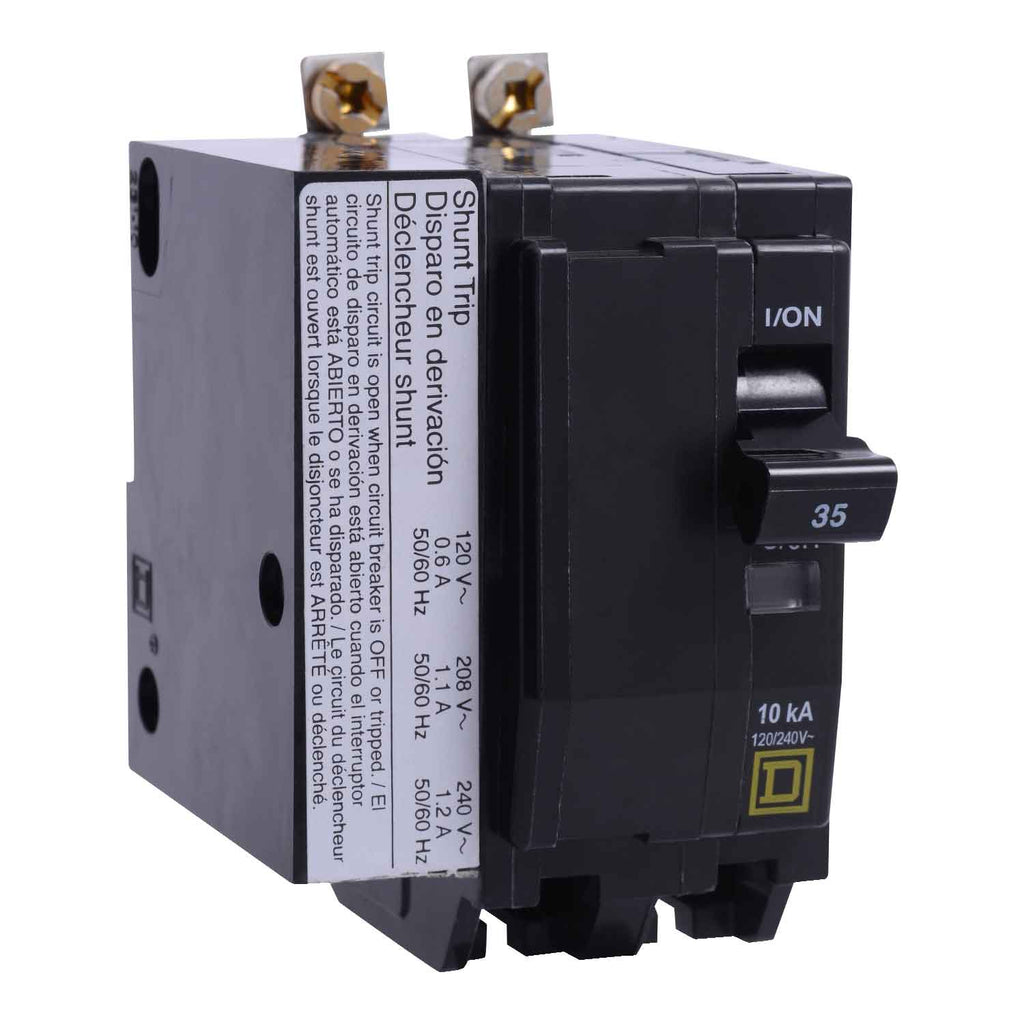

QOB2701021 - Square D 70A 2-Pole 120/240V AC Miniature Circuit Breaker Bolt-On Mount - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB2701021 - Square D Bolt-on 120/240 VACV 70A 2 pole circuit breaker 10kA@120V - Essential Electric Supply
QOB2701021 - Square D 70A 2-Pole 120/240V AC Miniature Circuit Breaker Bolt-On Mount - Essential Electric Supply

Description

QOB2701021


QOB2701021 is a Square D miniature circuit breaker designed for reliable circuit protection in residential and commercial applications.This 2-pole, 70 amp breaker operates at 120/240 volts AC with a 10kA interrupt rating. It features a thermal magnetic trip unit with an AC shunt trip, bolt-on mounting, and box lug connections supporting 8 to 2 AWG wire. Constructed with fiberglass filled thermoset material, it is rated for 40¡C operation and designed for single-phase systems.
  • Manufacturer: Square D (Schneider Electric)
  • Part Number: QOB2701021
  • Amperage: 70 A
  • Voltage: 120/240 VAC
  • Poles: 2
  • Interrupt Rating: 10 kA
  • Trip Type: Thermal Magnetic with AC Shunt Trip
  • Mounting Type: Bolt-On
  • Connection Type: Box Lug (8 to 2 AWG)
  • Phase: Single Phase
  • Material: Fiberglass Filled Thermoset
  • Operating Temperature: 40¡C
  • Dimensions: 2.91 in L x 2.25 in W x 3.12 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support&(more...)

Specifications

  • Part Number: QOB2701021
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 70
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@120V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
  • MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
  • Breaker Type : Shunt Trip
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901494362
  • GTIN : 00785901494362
  • Country of Origin : Mexico
  • Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 1
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
