Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QOB270VH

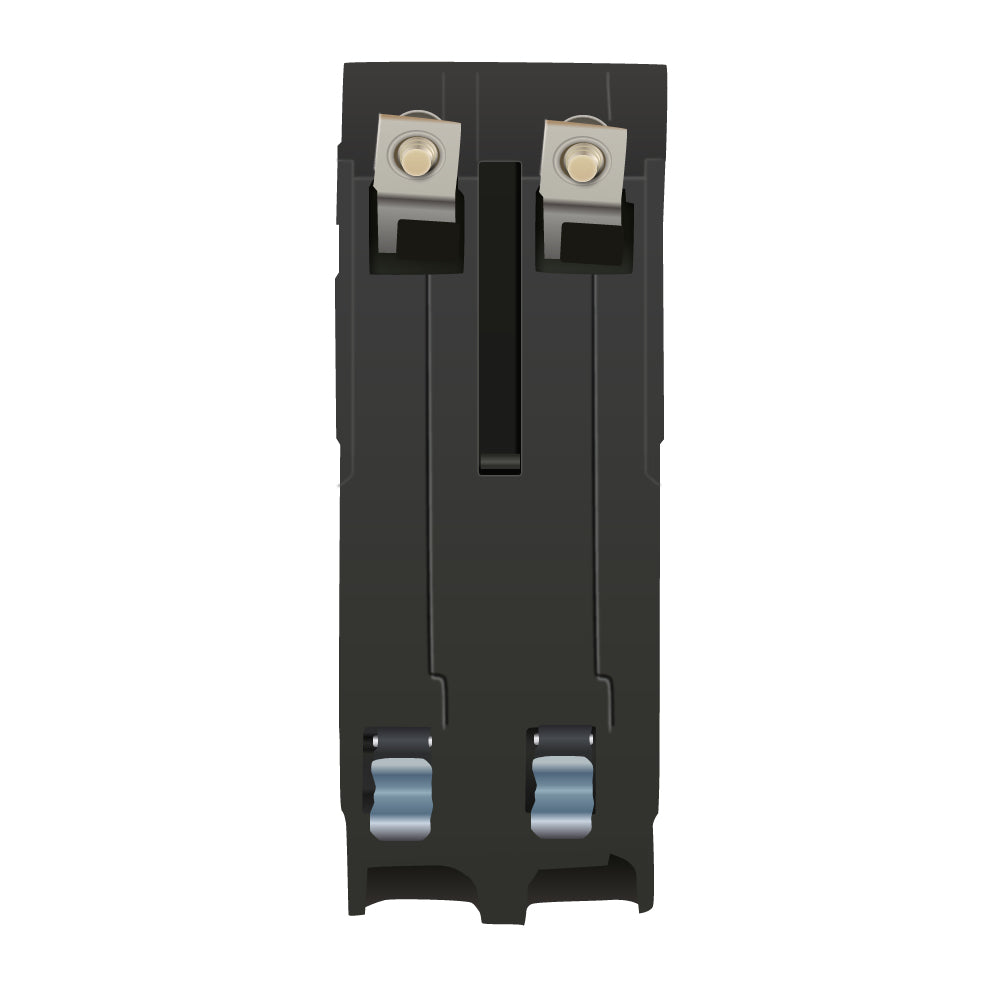

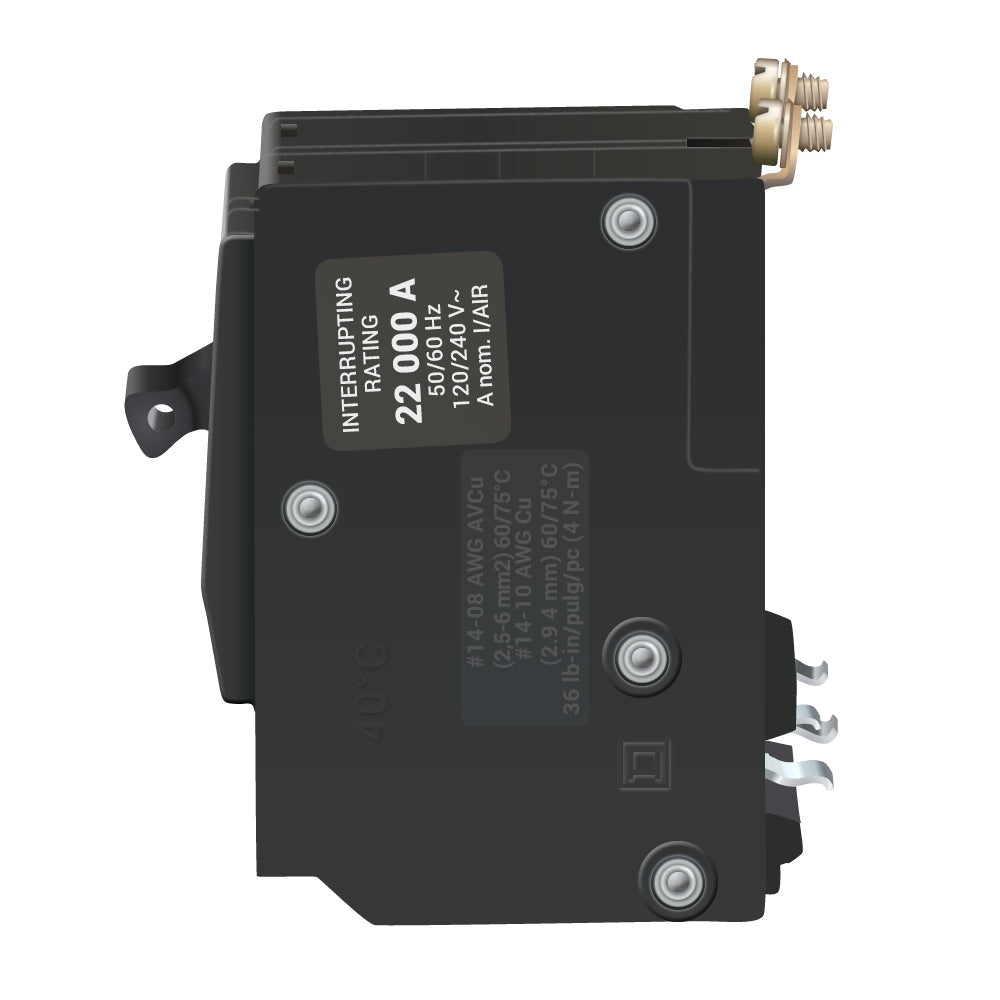

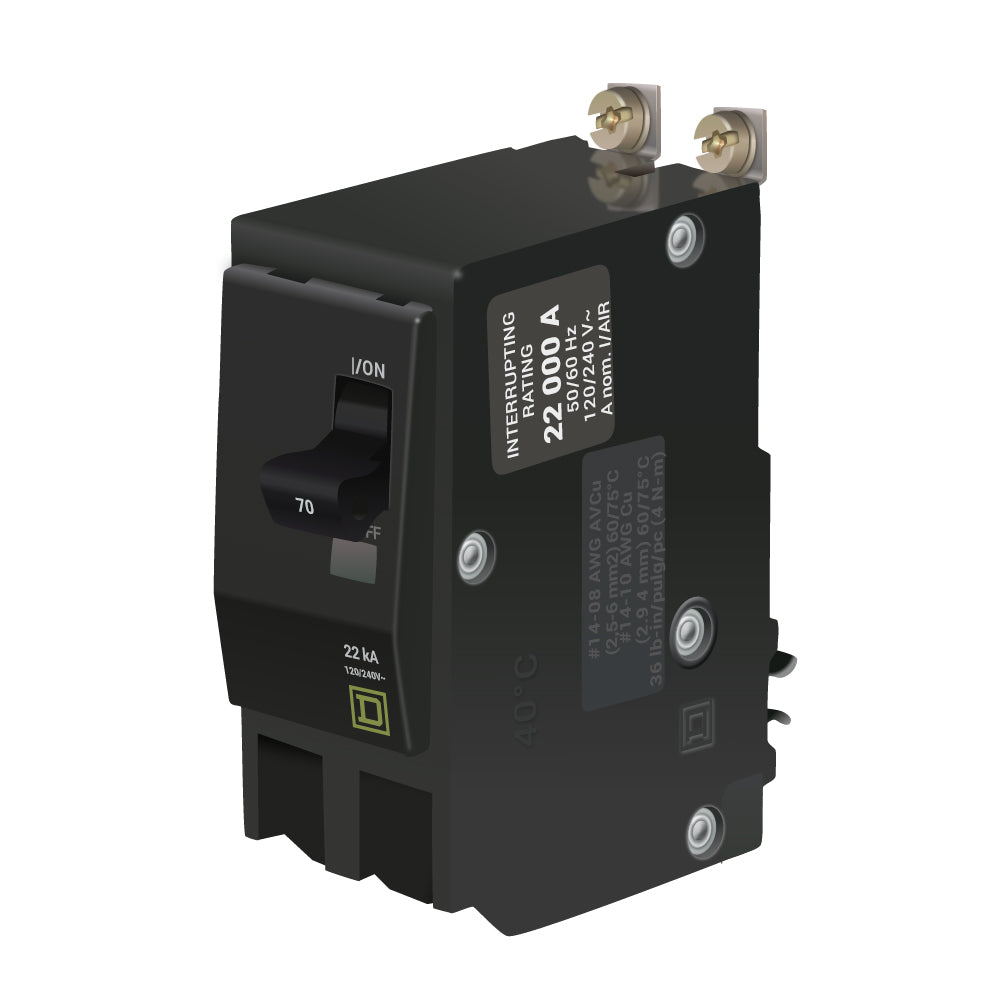

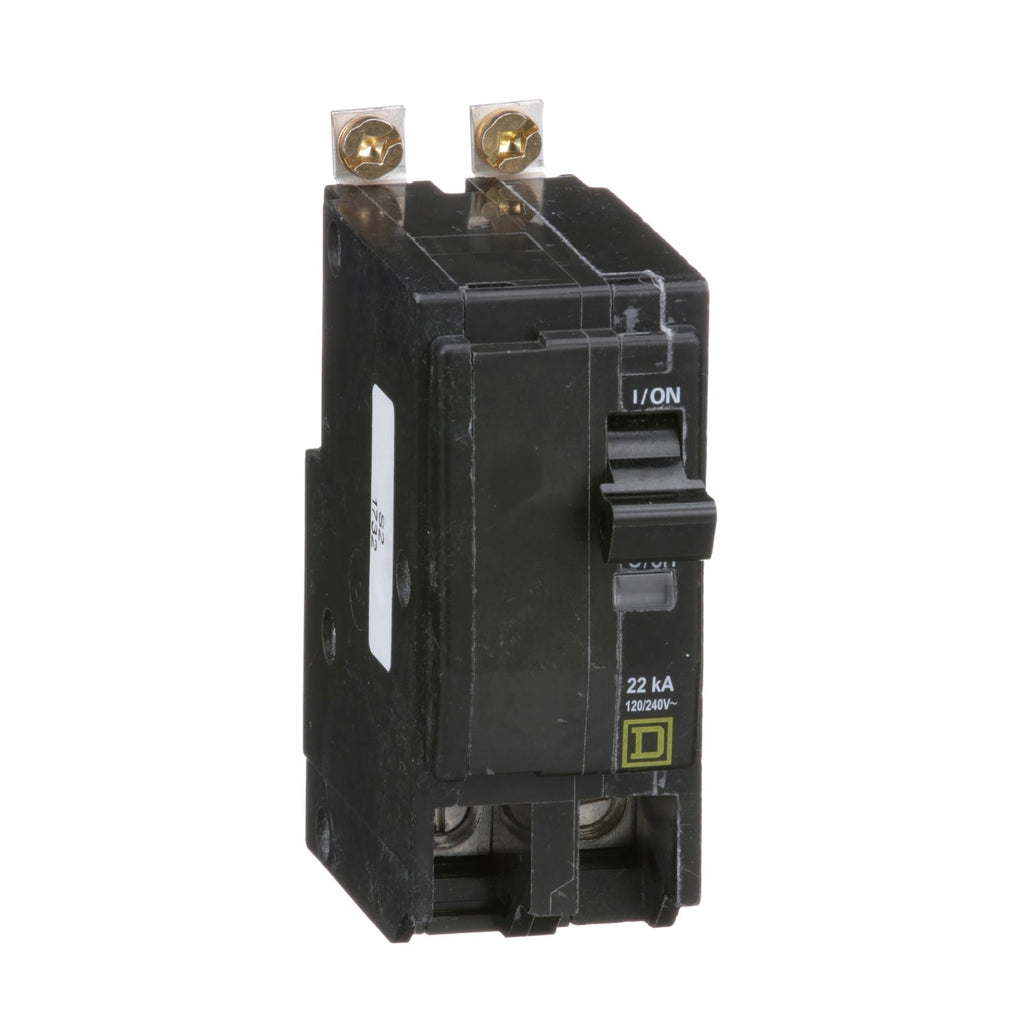

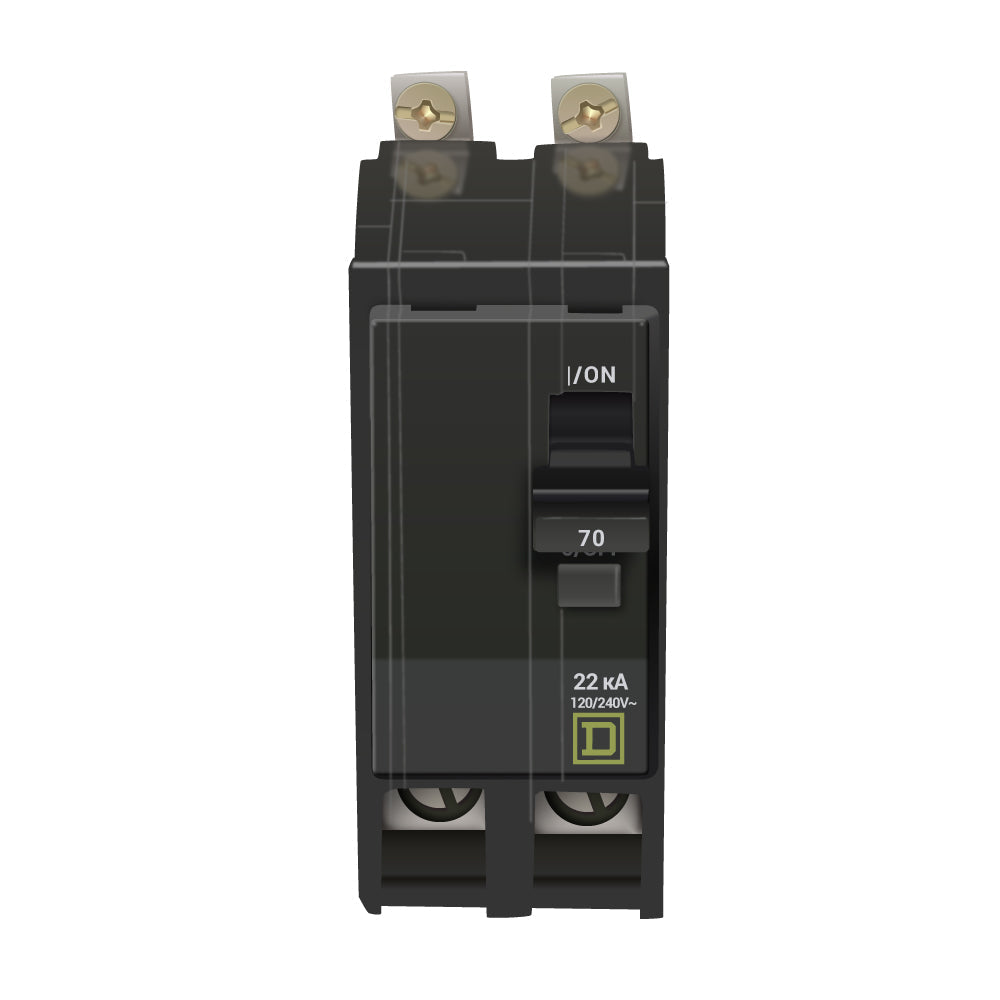

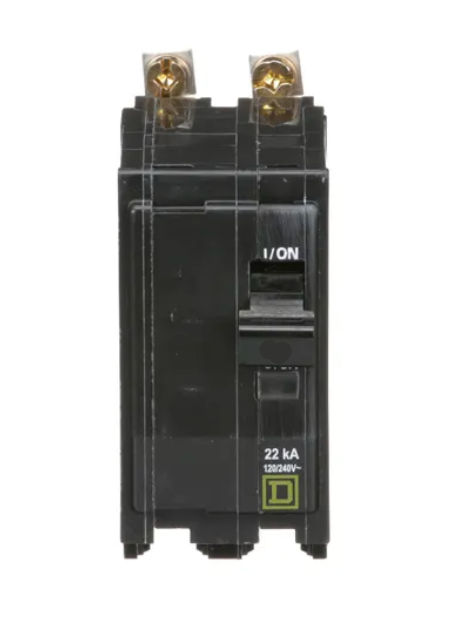

QOB270VH is a Square D 70 Amp 2 Pole miniature circuit breaker designed for 120/240 VAC applications with a 22 kA interrupt rating and bolt-on mounting.This thermal magnetic circuit breaker features a 2-pole configuration, suitable for single-phase power systems, with a 70 ampere rating and 50/60 Hz frequency. It supports wire sizes from 8 to 2 AWG with box lug connections and is UL and CSA listed for safety and reliability. The breaker is designed for use in Square D NQOD panelboards and offers a compact footprint for efficient installation.
- Key Specifications
- Amperage: 70 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Interrupt Rating: 22 kA
- Trip Type: Thermal Magnetic
- Mounting Type: Bolt-On
- Connection Type: Box Lug
- Wire Size: 8 to 2 AWG
- Frequency: 50/60 Hz
- Certifications: UL Listed, CSA Approved, RoHS Compliant
- Phase: Single Phase
- Manufacturer: Square D by Schneider Electric
Specifications
- Part Number: QOB270VH
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure Plate
- Frame Size : 100A/QO
- Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 785901054795
- GTIN : 00785901054795
- Country of Origin : Mexico
- Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.71
- Panel Type : Square D NQOD Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 8, AWG 2 copper or aluminium
